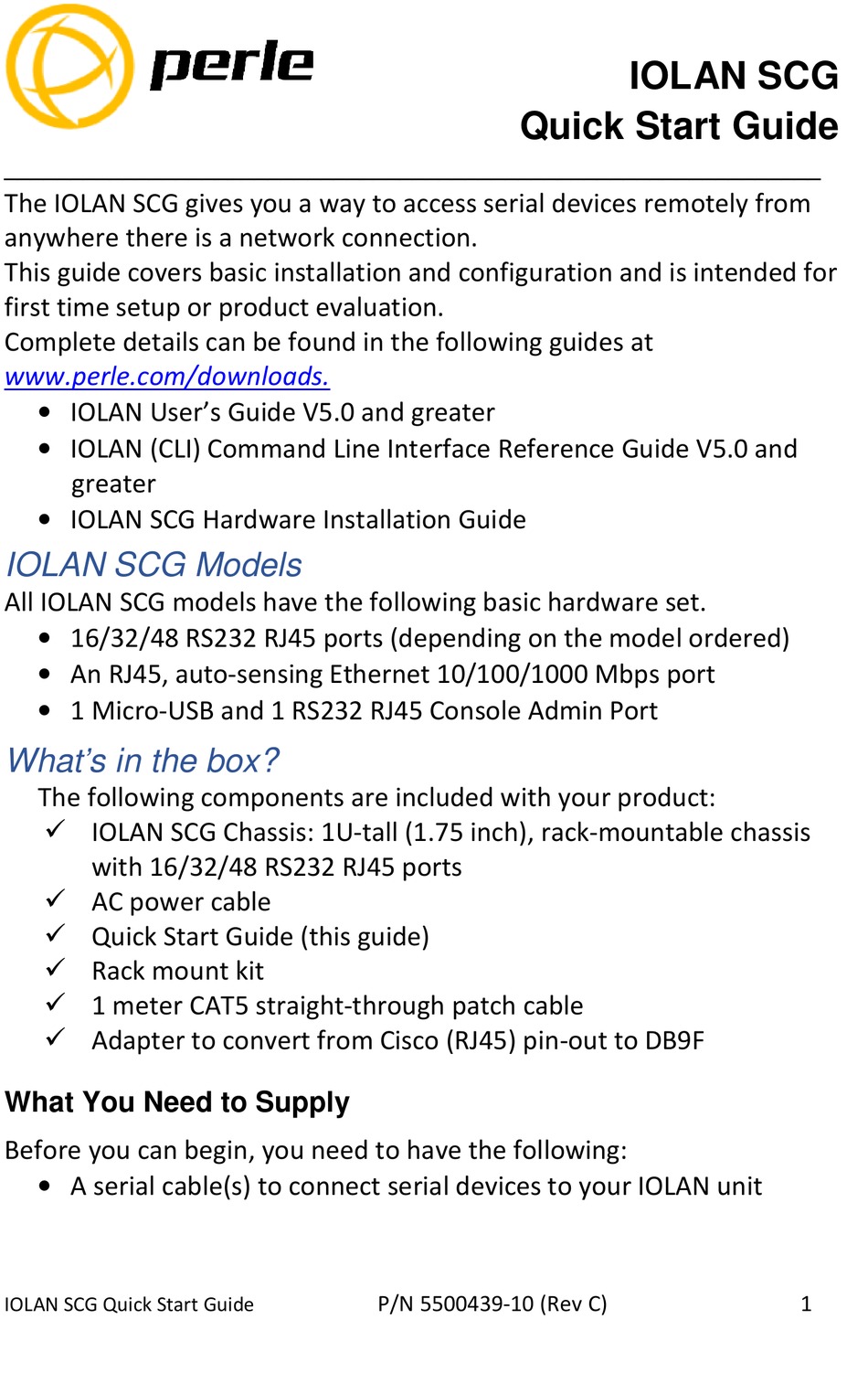

______________________________________________________________
The IOLAN SCG gives you a way to access serial devices remotely from
anywhere there is a network connection.
This guide covers basic installation and configuration and is intended for
first time setup or product evaluation.
Complete details can be found in the following guides at
www.perle.com/downloads.
• IOLAN User's Guide V5.0 and greater
• IOLAN (CLI) Command Line Interface Reference Guide V5.0 and
greater
• IOLAN SCG Hardware Installation Guide

IOLAN SCG Models

All IOLAN SCG models have the following basic hardware set.
• 16/32/48 RS232 RJ45 ports (depending on the model ordered)
• An RJ45, auto-sensing Ethernet 10/100/1000 Mbps port
• 1 Micro-USB and 1 RS232 RJ45 Console Admin Port
What's in the box?
The following components are included with your product:

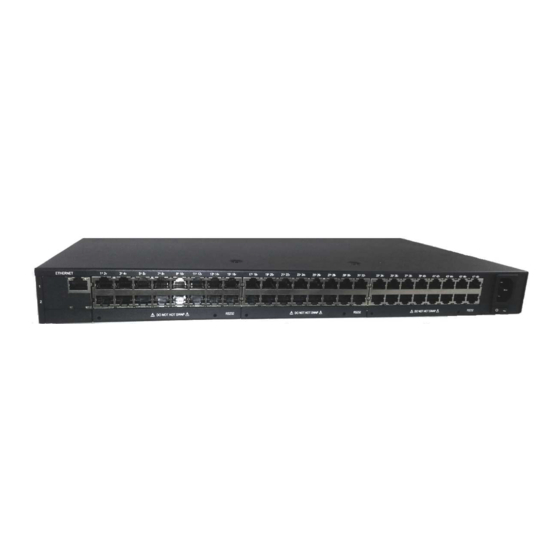

 IOLAN SCG Chassis: 1U-tall (1.75 inch), rack-mountable chassis
with 16/32/48 RS232 RJ45 ports
 AC power cable
 Quick Start Guide (this guide)
 Rack mount kit
 1 meter CAT5 straight-through patch cable
 Adapter to convert from Cisco (RJ45) pin-out to DB9F

What You Need to Supply

Before you can begin, you need to have the following:
• A serial cable(s) to connect serial devices to your IOLAN unit
IOLAN SCG Quick Start Guide
Quick Start Guide
P/N 5500439-10 (Rev C)
IOLAN SCG
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IOLAN SCG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perle IOLAN SCG

Summary of Contents for Perle IOLAN SCG

  • Page 1 IOLAN SCG Quick Start Guide ______________________________________________________________ The IOLAN SCG gives you a way to access serial devices remotely from anywhere there is a network connection. This guide covers basic installation and configuration and is intended for first time setup or product evaluation.

  • Page 2: Hardware Features

    Initial Setup for the IOLAN SCG 1. Connect power to the IOLAN SCG. 2. Connect an Ethernet cable to the IOLAN SCG, then to your network. 3. Establish a session or connect using the DeviceManager and set an IPv4 address.
  • Page 3 Guide for more information. Connecting Ethernet Connect the LAN cable from the Ethernet connector on the back of the IOLAN SCG to your network. An Cat5e cable is recommended for 1000 Mbps connections. Speed Indicator (on Ethernet Connector) • Green—1000 Mbps (flashes with activity) •...

  • Page 4: Contacting Technical Support

    8. You should change the admin password to restrict unauthorized access to the IOLAN. 9. You will need to reboot the IOLAN SCG using the power switch on the back of the unit to have the new IP address take effect.
