Perle IOLAN SCG Quick Start Manual

______________________________________________________________
The IOLAN SCG gives you a way to access serial devices remotely from
anywhere there is a network connection.
This guide covers basic installation and configuration and is intended for
first time setup or product evaluation. Complete details can be found in
the following guides at
• IOLAN Secure User's Guide
• IOLAN Secure Command Line Interface Reference Guide
• IOLAN SCG Hardware Installation Guide

IOLAN SCG Models

All IOLAN SCG models have the following basic hardware set.
• 16/32/48 RS232 RJ45 ports (depending on the model ordered)
• An RJ45, auto-sensing Ethernet 10/100/1000 Mbps port
• 1 Micro-USB and 1 RS232 RJ45 Console Admin Port
What's In The Box?
The following components are included with your product:

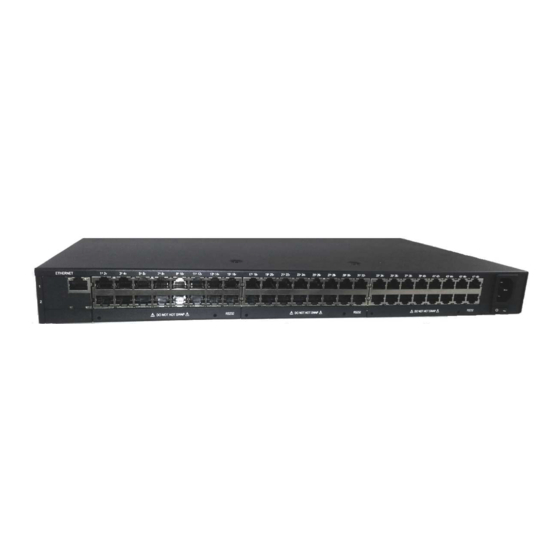

IOLAN SCG Chassis: 1U-tall (1.75 inch), rack-mountable chassis
with 16/32/48 RS232 RJ45 ports
AC power cable
Quick Start Guide (this guide)
Rack mount kit
1 meter CAT5 straight-through patch cable
Adapter to convert from Cisco (RJ45) pin-out to DB9F

What You Need to Supply

Before you can begin, you need to have the following:
• A serial cable(s) to connect serial devices to your IOLAN unit
• An Ethernet CAT5e 10/100/1000BASE-T cable to connect the
IOLAN unit to the network
IOLAN SCG Quick Start Guide
www.perle.com/downloads.
P/N 5500439-10 (Rev D)
IOLAN SCG
Quick Start Guide
1
