+ - User and Administration Guide
IOLAN
RS-422
134

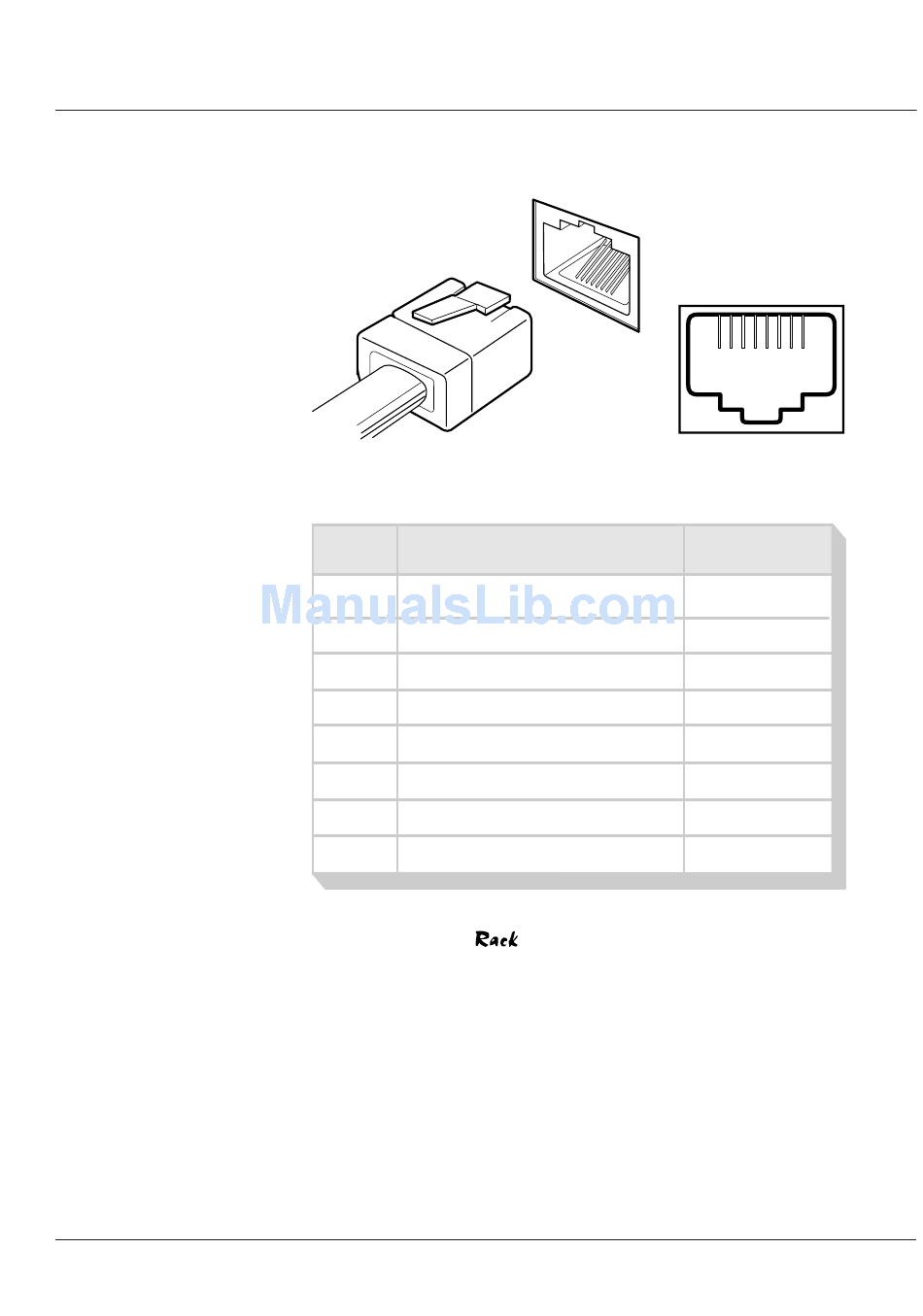

Figure 62: IOLAN+ RJ45 Connector.
Pin Description
1 No connection
2 Signal Ground
3 Received data A
4 Transmitted data A
5 Transmitted data B
6 Received data B
7 No Connection
8 Signal Ground
Figure 63: IOLAN+
RS-422 Pinouts (DTE)
, IOLAN+ 102/104 RJ45
1 2 3 4 5 6 7 8
Direction
Input
Output
Output
Input
