Contents Contents Introduction About this Guide On-line Documentation Getting Support IOLAN+ Packing Lists IOLAN+ Installation Connecting to your Network Switching on IOLAN+ Communicating via ARP Communicating via a Terminal or PC The Menu System Tips Terminals on Multi-user Systems Terminal Port Configuration Host Table Setup Making a Connection Tips...
Page 4
Remote Access Systems Remote Site Devices Tips Printing Using ioland Using LPD Using RCP Other Devices Setup Reverse Telnet Port Configuration Perle ioland Utility Tips The Menu Interface Menu Commands Connections Menu Port Setup Menu Administration Menu Access Menu Change Password Options...
Page 5
Contents Figures IOLAN+ features and applications. Hardware description for IOLAN+. Hardware description for IOLAN+ Hardware description for IOLAN+ 102/104. Packing list for IOLAN+. Packing list for IOLAN+ Packing list for IOLAN+ 102/104. Connections Menu. Commands pop-up menu. Administration Menu (view level). Administration Menu (password level).
Page 6
+ - User and Administration Guide IOLAN Host Authentication And Logging menu. Administration - Gateway Menu. Administration - Host Address Menu. Administration Menu - LInes pop-up menu. Lines - Access Menu. Lines - Flow Control Menu. Lines - Hardware Menu. Lines - Network Connection Menu.

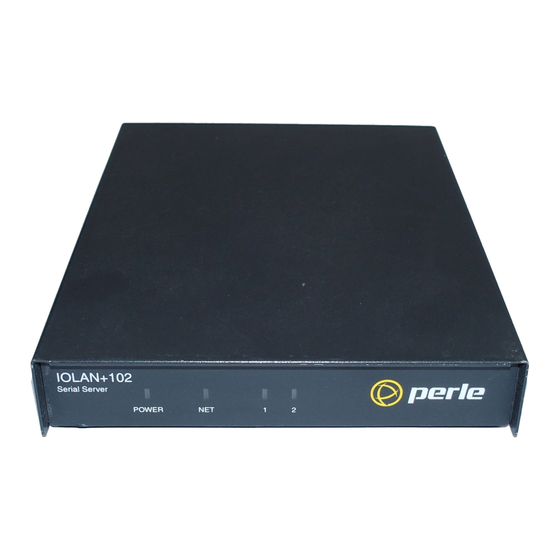

Introduction 1 Introduction Thank you for purchasing the Perle IOLAN+ Communications Server. IOLAN+ is a unique Ethernet TCP/IP communications / terminal server allowing serial devices to be connected directly to LANs and WANs. The 2, 4, 8 or 16 serial ports enable IOLAN+ to connect to a wide range of devices including: •...
+ - User and Administration Guide IOLAN This configuration diagram shows many of the features available on the IOLAN+ communications server: Router IOLAN+ Rack Internet Ra ck LA N + E R V E CH AS N S S A T I O POW ER U N I C C O M M...
Introduction 1.1 About this This guide describes the features and applications of the Guide IOLAN+ terminal/communications server from the level of novice user to more experienced system installer. It includes information about the IOLAN+ table top units as well as the IOLAN+ rack mount unit (form factor is the only difference between the two).
This guide cannot cover all the information available to you Documentation about the latest Perle developments and new features. However, there are a series of on-line documents available to help you to use the IOLAN+. You can check the support sections of our web site for the latest information: •...
If you encounter problems during setup or general Support maintenance, you can contact your supplier for support. Your request may be routed to Perle support as well. Here is the standard support route for the quickest answers: For United States, Canada & South America based customers, 1.
Page 12
Support for TCP/IP protocols including telnet and rlogin. • Remote access support including PPP, SLIP and CSLIP. • Printer support via lpd, rcp, and Perle utilities. • Modem support via PPP and Perle utilities. • Perle utilities provide ‘fixed tty’ support for Unix systems.
Page 13
Introduction • Five language menu support for English, French, German, Italian and Spanish. • Dynamic statistics displays and line status reporting for fast problem diagnosis. • Multiscreens on terminals. • Full support of SNMP MIBs, allowing remote configuration via SNMP as well as statistics gathering.
+ - User and Administration Guide IOLAN Serial Ports 110-240V AC 50-60Hz 2amp fuse POWER IOBASE2 IOBASE-T 3 4 5 Figure 2: Hardware description for IOLAN+ . Main power switch Power input socket Power indicator Reset switch cover AUI indicator AUI connector 10BASE2 indicator 10BASE2 connector (universal)
Software The IOLAN+ comes with the Perle CD. This CD contains description the latest ‘released’ firmware and the redirector software for Unix systems called ioland . The firmware is a backup copy and generally not used.
1.5 Packing Lists The following are check lists of the contents of your package: IOLAN+ IOLAN+ communications server Electrical Safety Booklet Perle CD and Quick Start Guide 4 wall mount brackets Test RS-232 loopback connector Test 10BASE-T loopback connector (green) Power cable...
Figure 5: Packing list for IOLAN+ IOLAN+ IOLAN+ communications server Electrical Safety Booklet Perle CD and Quick Start Guide 2 rack mount brackets Test loopback connector (red for RS-232 and white for RS-422) Test 10BASE-T loopback connector (green) Power cable...
+ - User and Administration Guide IOLAN IOLAN+ 102/104 IOLAN+ 102/104 communications server. Electrical Safety Booklet. Perle CD and Quick Start Guide. Power Supply Unit Power cable. Figure 7: Packing list for IOLAN+ 102/104...
IOLAN+ Installation 2 Installing your IOLAN+ Below is a step-by-step guide on how to configure IOLAN+. You can also reference the IOLAN+ Quick Start Guide . First connect IOLAN+ to a network then begin configuring the unit for your application. Additional information on configuring modems and printers follows.
+ - User and Administration Guide IOLAN The green Ethernet indicators show the active connections. It remains lit and blinks when LAN traffic is active. Note: To change your Ethernet media, you will need to reboot the unit to activate the connector. You are now ready to begin communicating with your IOLAN+.
Installing your IOLAN+ Here is the sequence to use: arp -s 192.168.209.8 00:80:d4:00:33:4e telnet 192.168.209.8 password> local> At the password prompt, just hit since this is not set yet. The IP address still needs to be configured on the unit (ARP has only allowed you to connect to the unit so far).
+ - User and Administration Guide IOLAN The next prompt displayed is local>, which is the Command Line Interface (CLI) prompt. Note: If there are any problems, check the cable you are using (this is the most common error). Port 1 is configured to provide error messages should any problems occur.
Installing your IOLAN+ CONNECTIONS MENU REMOTE-ADMIN Connection Host *** FREE *** *** FREE *** *** FREE *** *** FREE *** ________________________________________________________________________________ v4.02 a CDi IOLAN+ Figure 8: Connections Menu. The firmware version of IOLAN+ is located on the lower left hand portion (in this example, version 4.02).
| Logout ================ ________________________________________________________________________________ This option allows you to configure parameters affecting the Server box, eg hosts table, other terminals. IOLAN+RACK v4.02 a CDi IOLAN+ Figure 9: Commands pop-up menu. Before communication across the network can be established the IOLAN+ must be assigned a network IP address. This is accessed through the Administration Menu .
Installing your IOLAN+ Select the Password field and press the key. Use the factory default password here: this is iolan (no caps). Note: This password level will time-out in four minutes if there is no activity. This is for security reasons and will take you back to Administration Menu (view level).
+ - User and Administration Guide IOLAN All of the procedures are based around the Port Setup Menu . This is accessed through the Administration Menu (password level). Remember, that if you are not in the password level, you can only view the information, not change it. Here is the Port Setup Menu : ** Administrator ** PORT SETUP MENU...
Installing your IOLAN+ IP Addresses: Deals with remote access via PPP/SLIP sessions. Options: Deals mainly with the telnet options. This section is the least used. Keys: Defines the various accelerator keys that IOLAN+ responds to and can be used for convenience.
Page 30
+ - User and Administration Guide IOLAN The request is received by all hosts on the network and is checked against a file to find a match. This data base file will normally be /etc/bootptab and will be of the following format: # bootptab description iolan:ht=ethernet:ha=0080d400024e:\ :hd=/tftp:\...
Page 31
Installing your IOLAN+ This can be achieved by uploading the configuration of the unit to a host on the network. To do this, enter the Communications Server Menu from the Administration Menu. Select the Init file entry of this menu. Set this to the full pathname of the file in which you wish to store the configuration.
Page 32
+ - User and Administration Guide IOLAN Domain Name IOLAN+ can be configured to take advantage of your Server (DNS) network’s Domain Name Server (DNS). This is done from the server in the Administration Menu by keying in the IP address of your DNS in the Name server field.
Terminals on Multi-user Systems 3 Terminals on Multi-user Systems IOLAN+ is used extensively for connecting terminals, printers and modems on multi-user Unix systems, especially in retail applications. These Unix systems include SCO Unix, IBM AIX, HP-UX, Data General’s DG/UX, etc. This section deals with terminals and/or PCs using emulation packages (such as Hyperterm).
[fred [204.17.209.70 [astro [204.17.209.6 [router [204.17.209.254 [perle [204.17.209.1 and so on… ________________________________________________________________________________ Figure 16: Host Address Menu Screen. You can fill in an entry (both the name and the IP Address) for your host machines and then save the values by pressing...
+ - User and Administration Guide IOLAN 3.3 Making a If you are using initiated connections, you will not see the Connection IOLAN+ menus. Instead, you see the login prompt of the host you assigned in the host field of the Port Setup Menu . However, if your connection field is set to None , the Connections Menu appears.
Terminals on Multi-user Systems Note: At this point, check the host table again for correct entries, then check the network connection and host machine you’re connecting to. While in session to the host machine, you can return to the communications server by using a hot key. This is user- defined, but defaults to ^].
Page 38
+ - User and Administration Guide IOLAN The TERM field The TERM field in the Port Setup Menu can be used to pass the terminal type information to the host. The terminal type field is local to the IOLAN+ but will be passed to the host. The TERM field can override the information being sent to the host about the type of terminal.
Setting up Dial-in Modem Ports 4 Setting up Dial-in Modem Ports This section will review the configuration necessary to create dial-in connections. It will start with the most simple connection such as a dial-in Unix connection. The section then moves into setting up PPP ports which is how Windows ®...
Page 40
+ - User and Administration Guide IOLAN The following fields are important: Monitor DCD: With this flag set to Yes , IOLAN+ will monitor Data Carrier Detect (DCD) - pin 8 - from the modem. As soon as your modem answers a call and establishes a carrier signal, the modem raises DCD.
Setting up Dial-in Modem Ports Access: Set this field to Dynamic . This sets the port of the terminal server to listen for data on both the RS-232 side and the network side. If only used for dial-in, set to Local and it will only listen on the RS-232 side.
Setting up Dial-in Modem Ports My IP Address is : 204.17.209.7 Your IP Address is : 204.17.209.210 The Subnet Mask is : 255.255.255.0 With this example, IOLAN+ is now in CSLIP mode, so put your PC into CSLIP mode as well. Your dialer script will have to parse out the My/Your addresses from the above message.
Page 44
+ - User and Administration Guide IOLAN MOTD A Message of the Day (MOTD) can be displayed before login. This is setup from the Server Configuration menu using MOTD and Boot host fields. Gateway notes If you have a router on your local network, make sure you enter this into the IOLAN+ Gateway Menu .
Modem Authentication & Logging 5 Modem Authentication & Logging IOLAN+ provides authentication support to validate users connecting to the serial port, and can update a host log file on connection states. Authentication and logging is achieved by using a designated authentication host to validate users and keep connection information.
+ - User and Administration Guide IOLAN 5.1 User To improve access security, IOLAN+ has a mechanism for Authentication/ authenticating users before allowing them access. This is Logging accomplished by prompting the user for a Login ID and a password. IOLAN+ will then attempt to login to a specified host using that ID and password.
Page 47
Modem Authentication & Logging Authentication Port: The TCP service to be used for authenticating users. Normally this is set to 23 for Telnet. Login Prompt: The string used by IOLAN+ to know when to send the login ID. Set this field to ogin:.
+ - User and Administration Guide IOLAN Log Username: The User ID IOLAN+ will use to log in to the authentication host and log messages. This user needs to be at a shell prompt to ‘cat’ messages to the log file. The password for the log user is set up under the IOLAN+ Administration Menu - Change option.
Page 49
IP address. This is accomplished by using a PERL script which parses a RADIUS database. The PERL script ( RADparse ) is on the Perle CD or our FTP site. RADIUS is the TCP/IP protocol used for authenticating remote dial-in users.
The logger may be restarted via the kill command by adding two to the number of ports on your server (i.e. use four for an IOLAN+2, six for an IOLAN+4, ten for an IOLAN+8, eighteen for an IOLAN+16). If the host authentication succeeds, but logger fails to log events, then the port connection is dropped.
Modem Authentication & Logging Tue Jan 17 12:03:22 GMT 1997: server earth logger started Tue Jan 17 12:03:22 GMT 1997: server earth is alive Tue Jan 17 12:08:22 GMT 1997: server earth is alive Tue Jan 17 12:09:28 GMT 1997: server earth user us1 logged into port 1 Tue Jan 17 12:12:22 GMT 1997: server earth user us1 logged out port 1 Tue Mar 21 12:27:09 GMT 1997: server earth user us1 logged into port 1 Tue Jan 17 12:13:20 GMT 1997: server earth is alive...
Page 52
+ - User and Administration Guide IOLAN...
If not using dial-out routing, you will need a COMPORT redirector such as ioland . The Perle CD has the ioland utility if you are using Unix. Please load the appropriate binary onto your system.
For dial-out If you have not already loaded ioland onto your system, do so connections on now (see Perle CD). For more information on ioland see Unix Connecting Other Devices (section 8). In it’s simplest form, at the superuser prompt you would run the following command in Unix: ioland –h <server-name>...
Dial-out Modem Ports Setup For dial-out Check our FTP sites for the latest information on dial-out connections on connections (under the Windows ® support directory). Windows ® systems 6.3 Routing For dial-out routing, you must have the proper routing entry on all hosts in your local network that will communicate with the remote site.
+ - User and Administration Guide IOLAN 6.4 Remote This screen is used to define a remote system (up to 16 Access entries per IOLAN+), a phone number, login script, etc. Systems There are a lot of similarities between this screen and the UUCP systems file under Unix.
Page 57
Dial-out Modem Ports Setup Service type: This specifies which protocol will be used when the link is established to the remote site. Choices are PPP, SLIP and CSLIP. Inactivity: The period (in minutes) of inactivity on the SLIP/ PPP link before the port drops the call automatically.
Page 58
+ - User and Administration Guide IOLAN phone# (sends the telephone number field). send the modem’s dial command escapes to ‘\’. send a break. Dial-out PAP If a dial-out script is not used but a username and password Authentication are defined, IOLAN+ will send a PAP packet after establishing a PPP link and use the username and password defined for the remote site.
Dial-out Modem Ports Setup The following fields are important: Type: The name of the modem assigned to a specific port. It is referenced from the Remote Access Systems Screen in the Device type field. Dst Address: The address of the remote system IOLAN+ is calling into.
Page 60
+ - User and Administration Guide IOLAN...
It requires a special interface script also found on the Perle CD. 7.1 Using ioland We suggest you use the Perle ioland utility on the CD provided. The ioland utility can be used for Unix printing only. Ioland is a Unix tty port redirector. For non-UNIX applications use LPD, see Section 7.2.
Page 62
+ - User and Administration Guide IOLAN The following fields are important: Flow ctrl: Set your IOLAN+ port flow control to Hardware . Then set your printer to use ‘DTR Pacing’ or ‘Hardware’ or ‘Ready/Busy’ flow control. Use the RS-232 printer cable pinout shown in the Cabling Guide (Appendix C).
Printing Tips Hunt groups: Hunt groups are supported on IOLAN+ for printing. To use this, use the same number in the Port Setup local port field (i.e. 1006). 7.2 Using LPD IOLAN+ can be setup for receiving print jobs via LPD and this is a very simple method.
Page 64
+ - User and Administration Guide IOLAN Name: The LPD client, as a reference to the printer, will use what you assign here. This is the printer queue name on IOLAN+. Access: Set this field to Remote . This sets the port of the terminal server to listen for connections coming from the network.
Printing 2. The name of the terminal server followed by a port number. For example if the queue name is server_name9 (or server_name09) then serial port 9 will receive the print job. Please note that in this example, the Name field in the Port Setup Menu need not be set. 3.
Page 66
+ - User and Administration Guide IOLAN Under Windows ® the printer will be available from within other applications via the File option of the Windows ® menu bar. The actual printer will be referenced by the Name of the terminal server serial port or, by the terminal server and port number in the same way that Unix uses the Name.
Page 67
Printing To overcome this the local host must perform all of the necessary changes and then send these to the terminal server. Defining a printer queue as in the previous examples can do this. If filtering or formatting is required then a local linking print queue needs to be created.
IOLAN+ Port Setup name field. 7.3 Using RCP RCP is used as an alternative option (where LPD and ioland are not available). It is a Unix only command set. A script is provided on the Perle CD for RCP.
Page 70
+ - User and Administration Guide IOLAN Local port: The INETD process running on the terminal server for this port is listening for TCP/IP connections on TCP port 514 (this is the RCP service number). The Host On systems where LPD or a binary for ioland is not available, or is found to be unreliable due to limitations in the OS, RCP provides a useful, if limited, alternative method for printing.
Page 71
Copy the Server RCP shell script from the TSSD support disk to the interface script, e.g: cp /etc/perle/src/perle.rcp hpjet Having created the hpjet file set the permissions to allow execution of the script, e.g: chmod a+x hpjet Edit the interface script and insert the desired server name and port number.
Page 72
Using the example: ln -s <filter-name> /etc/perle/hpif.orig d. Copy the Perle RCP shell script to the Perle directory /etc/perle . That is: cp perle.rcp /etc/perle/hpif Edit the interface script and insert the desired IOLAN+ name and port number.
Page 73
Set up the IOLAN+ port for RCP printing. See the relevant section in the guide or call Technical Support for an example fax. Setting up RCP See the Perle FTP sites for latest information. printing on AIX Tips Hunt groups:...
Page 74
+ - User and Administration Guide IOLAN...
POS Configuration terminal, etc. Or you can tie a login to a specific Unix tty device (using ioland ). For Unix you use the Perle utility ioland . For Windows ®...
Page 77
If you are using Windows ® check the web page for the latest information on dial-out connectivity. 8.2 Perle ioland IOLAN+ peripheral daemon provides a client process with a Utility full-duplex and transparent interface to a server port of its choice, via a pseudo-tty device.
Page 78
+ - User and Administration Guide IOLAN There are three mandatory arguments the daemon requires to mediate between the client and server port: Server: The host name of IOLAN+ that has the attached printer or terminal. Port: The TCP port on which the IOLAN+ port is listening for connection requests.
Page 79
Other Devices Setup Hangs up the pseudo-tty if the TCP connection is lost. This mimics the situation in which a real serial port loses a signal such as DCD. In the same manner as the serial port, a SIGHUP signal will be sent to all processes that have the slave pseudo-tty as their controlling tty.
Page 80
+ - User and Administration Guide IOLAN Used with the -p option. This option prevents the slave pseudo-tty from closing so as to prevent any flushing of data that may occur. With this option set, the daemon will not close the TCP connection so its use is not advised for modems, as line hang-ups may not be initiated.
Page 81
Other Devices Setup Lets the world know we’re alive — but nothing else. Reports startup options. Reports connection and disconnection events. Reports numbers of characters being sent/received. Displays data written to the client process. Displays data written to IOLAN+. Reports telnet negotiations. Displays data read from IOLAN+.
+ - User and Administration Guide IOLAN The first is a simple printer configuration, the second is a complex modem configuration while the third is a configuration more suited to a daemon with a terminal attached and a getty running as the client process. Normally, the debug level is set to a minimal level such as three.
The Menu Interface 9 The Menu Interface This section describes the menu system and the fields within them. Bounce around the menu system to get your bearings. All of the menus are covered and referenced in this section. 9.1 Menu You move around the menus with the arrow keys or by using Commands the first letter of the associated command.
+ - User and Administration Guide IOLAN Pressing cancels the Command Options window (works the same as Cancel ). Other than mastering the difference between the key and , there are several other special fields and keys. Toggle fields Some data fields have a set of acceptable values. An example of this is the bps rate setting.
| Logout ================ ________________________________________________________________________________ This option allows you to configure parameters affecting the Server box, eg hosts table, other terminals. IOLAN+RACK v4.02 a CDi IOLAN+ Figure 31: Connections Menu - Commands pop-up menu. Pressing at any of the four FREE fields presents the Commands pop-up menu.
Page 86
+ - User and Administration Guide IOLAN This option only appears if there is a current Resume connection open. It allows you to carry on Connection working on a host. This option also appears only if the current Close connection is open and will close the session on Connection a host machine.
The Menu Interface 9.3 Port Setup This menu allows the user to set up all of the parameters Menu associated with a port. The administrator can alter the set-up of any port on the IOLAN+ while a user can only alter the set-up for their own port.
Page 88
+ - User and Administration Guide IOLAN This field sets the parity of the port to even, odd Parity or none. The default parity is None . This sets the number of data bits that are used by the port from 5-8. The default is 8 . This defines how many stop bits the port uses to Stop either 1, 1.5, 2.
Page 89
The Menu Interface User The User section defines various user parameters such as name and terminal type. Most fields are used in this section. A full description is given below: This field defines the user name of this port on Name IOLAN+.
Page 90
+ - User and Administration Guide IOLAN This field defines whether IOLAN+ is using the CLI/Menu CLI or the menu interface. If the terminal is configured for menu interface but the terminal type is undefined or dumb, then the unit remains in the CLI.
Page 91
The Menu Interface This is the destination IP address of the PPP/SLIP connections. If blank, the remote host must supply the IP address. If filled in, you designate an assigned IP address to loan the remote host. If the secure field on the Port Menu is No , this can be overridden by the incoming host.
Page 92
+ - User and Administration Guide IOLAN Access to the administration mode is enabled from this port. Port will accept IP addresses. Access to administration mode is disabled for this port. Port will reject IP addresses. Access to administration mode is disabled and dial-in access via PPP/SLIP is disabled.
Page 93
The Menu Interface This field defines the character that generates a telnet erase character signal across the network. In addition, this key can be used to ‘reprogram’ the interpretation of the <left-arrow> key when operating in the menu mode. If the users terminal generates the same key sequence for <Left-Arrow>...
Page 94
+ - User and Administration Guide IOLAN Access This section controls the type of the connection made from this port. This is the most important section in defining a port. The parameters are as follows: This field defines the type of service that is Access operating on this port.
Page 95
The Menu Interface This field defines how a user logs in. Default Authentication is none. This sets authentication off. None This forces the incoming user to enter the Local IOLAN+ login authentication password (same password for all ports). This is full authentication requiring a user ID Host and password that will be checked against a designated authentication host.
Page 96
+ - User and Administration Guide IOLAN IOLAN+ makes an immediate connection to Preferred the indicated host machine and port number. The Host , Remote and Mode fields must be filled in. Although the user is connected to a designated host, the user can hot key ^] back from this connection to the unit.
The Menu Interface 9.4 Administration The Administration Menu allows the user access to the main Menu configuration functions. All of the options can be accessed by a normal user (unless the secure field is set to Yes ). None of the configuration details may be altered unless the user has entered the administrator’s password.
+ - User and Administration Guide IOLAN Selecting this field allows the user to view the server IOLAN+ Configuration Menu . Selecting this field allows the user to view the stats IOLAN+ Statistics screens. Once the user has entered administration mode the display changes slightly to indicate this.
The Menu Interface Selecting this field will take the user into the trap SNMP trap function menu. 9.5 Access Menu The Access section deals with remote access sites, devices and the authentication and logging parameters. The initial pop-up window is as follows: * Administrator ** ADMINISTRATION MENU REMOTE-ADMIN...
Page 100
+ - User and Administration Guide IOLAN The parameters are as follows: This is the IP name or IP address of the remote Sitename site IOLAN+ will be calling. This is the user name required by the remote User name system for logging in.
Page 101
The Menu Interface Remote Site This first brings up a pop-up menu with 16 possible Devices UNUSED ENTRYs each corresponding to a port. ** Administrator ** REMOTE SITE DEVICES SCREEN REMOTE-ADMIN Type [Netchasr] IP Addresses Src Addr Dst Addr [204.17.209.212 ] Modem Config Dial Comm...
+ - User and Administration Guide IOLAN This is the modem’s setup string. There are a Config few examples at the end of this document. Note: Leave this field blank for directly connected devices. This is the modem’s dial command. Dial Comm This is the modem’s hang up command.
Page 103
The Menu Interface The parameters are as follows: The IP name or address of the authentication Auth Host host to validate incoming users. The TCP port number of the authentication Authentication host, usually 23 (telnet) or 513 (Rlogin). A Port proprietary network number may be chosen to provide a personal user validation scheme.
+ - User and Administration Guide IOLAN The logger’s user name for gaining access to the Log Username log file on the host. The pathname of the activity log file. Log File Logs a message to inform the host when IOLAN+ Log Power is powered up and when rebooted from software.
The Menu Interface 9.7 Gateway The Gateway Menu allows the IOLAN+ to make use of a Menu gateway (I P router) on the network. This allows flexible internetworking. ** Administrator ** GATEWAY MENU REMOTE-ADMIN Entry Destination Gateway Netmask [default ] [204.17.209.254 ] [default and so on..
Entry Host name IP Address [mark [204.17.209.70 [astro [204.17.209.6 [router [204.17.209.254 [perle [204.17.209.1 ] and so on… ________________________________________________________________________________ Figure 40: Administration - Host Address Menu. The parameters are as follows: This field specifies local name you want to give Host name a particular host on the network.
The Menu Interface 9.10 Lines Menu This option allows the administrator to configure all of the parameters for any of the ports. The parameters accessible are exactly the same as those in the Port Setup Menu , but from these menus you can configure a set of parameters for all of the ports.
+ - User and Administration Guide IOLAN Flow Control The Flow Control section shows and allows changes to the flow control fields as described in The Port Menu - Flow Control Section above. ** Administrator ** FLOW CONTROL MENU REMOTE-ADMIN TTY Flow ctrl Input Flow Output Flow...
The Menu Interface Options The Options section shows and allows changes to the Options fields as described in The Port Menu - Options Section above. ** Administrator ** OPTIONS MENU REMOTE-ADMIN TTY Opt Rlogin/Telnet Keepalive [No ][No ] [No ] [Telnet] [No ] [No ][No ] [No ] [Telnet] [No ]...
[Disabled] Boot host [204.17.209.1 ] Boot diagnostics [Enabled ] Boot file Init file MOTD file Domain name [perle.com Name server [astro NS Port WINS server [fred ________________________________________________________________________________ Figure 48: Server Configuration menu. The menu as displayed can be divided into four logical sections: identification fields, general admin, downloading and domain naming.
Page 111
The Menu Interface This field defines the globally unique ethernet Ethernet address of IOLAN+. This address can not be address altered and matches the address provided on the physical back of the unit. In the unlikely event of this field being corrupted please contact your supplier.
Page 112
+ - User and Administration Guide IOLAN Downloading This field should only be filled in if the Boot host Administrator wishes to download a new firmware version. It contains the host name or IP address of the host machine that has the IOLAN+ download image on it.
The Menu Interface 9.15 Statistics The statistics screens are used for troubleshooting only. This Screens main screen shows the sub-menus that can be addressed. For more information on the statistics menu, see Troubleshooting & Maintenance (Appendix B). ** Administrator ** SERVER STATISTICS REMOTE-ADMIN === ETHERNET ===...
Page 114
+ - User and Administration Guide IOLAN...
Page 115
Command Line Interface A Command Line Interface This section outlines the use of the command line interface as opposed to the menu system. The IOLAN+ supports the use of menus for a number of terminal types. It also supports a command line interface (CLI) for use on other terminal types and Telnet/Rlogin sessions.
Page 116
+ - User and Administration Guide IOLAN The user may now type in any of the indicated topics and press the return key. This gives more information on the indicated subject in the form of syntax and synopsis. In some cases, a further choice for more information (stating 'additional help is available for' and another list).
Page 117
Command Line Interface 2. Enter set server. This will lead you to: ADMIN:local> set server Type ‘?’ at prompt to see list of valid options; <Esc> to abort changes. Name : ronald Debug mode : 0 IP address : 204.17.209.18 Subnet mask : 255.255.255.0 and so on…...
Page 118
+ - User and Administration Guide IOLAN The command will use telnet or rlogin depending on what is set in the Options section of the Port Menu . Example: local> connect Host/IP Address> microart TCP Port> 23 Note: If the user presses the return at the port prompt, the unit defaults to port 23 which is the standard telnet port (or 513, the standard rlogin port).
Page 119
Command Line Interface Some configuration parameters only come into effect after the user has exited and re-entered IOLAN+ (e.g. the name field). FACRESET Syntax: facreset Description: This function will reset all parameters back to factory defaults. This option requires confirmation. GATEWAY Syntax: gateway <[add dest gate net][delete dest]>...
Page 120
+ - User and Administration Guide IOLAN LOCK Syntax: lock Description: This function allows the user to lock his terminal using a specific password. IOLAN+ prompts the user for a password and a confirmation. This function can not be used unless the Lock enable flag is set (via set port command).
Page 121
Command Line Interface Description: This function allows the user to save the IOLAN+ configuration to a specified host machine and file. The configuration is saved to the specified Boot Host and put into the file name described in the Init File parameter (see Set server ). IOLAN+ uses the TFTP protocol to save and load the file.
Page 122
+ - User and Administration Guide IOLAN The modem commands are taken from the Modem Config field of the Remote site devices menu. set term This function allows a user to alter their terminal type. If the term field is left blank the IOLAN+ displays a list of all the currently supported terminals (ansi, dumb, vt100, wyse50, wyse60, tvi925, ibm3151, vt320, falco, hp700).
Page 123
Command Line Interface set server This function allows the administrator to alter the IOLAN+ set-up including initial IP address and name. set slip [IP address] This function causes the port to go into SLIP mode provided secure is not set to LAN. You can specify an IP address to used by the remote host.
Page 124
+ - User and Administration Guide IOLAN The show statistics command is used to display any of the IOLAN+ statistics for troubleshooting only (tcp, ip, udp, icmp, tty, eth, gateway ). Example: show statistics tcp would show the TCP parameters screen. You can add a delay option which updates the screen every n seconds such as: show stats tcp 3 (use ESC to quit).
Page 125
If you encounter problems when installing or using your IOLAN+, try the suggestions given in this chapter. Hopefully, the problems can be solved quickly, otherwise contact your distributor or Perle support. Email or fax as described in section 1.3, Getting Support . B.1 Terminals/PC...
Page 126
+ - User and Administration Guide IOLAN Faulty terminal Try a known working terminal on the IOLAN+ port. Wrong port on Many terminals have more than one port (i.e. AUX). Check that the cable has been connected to the correct port . terminal Faulty Server port Try a known working terminal on the suspect port.
Page 127
Troubleshooting & Maintenance B.2 Printer You can check some of the same problem notes in the Problems terminal section because most are applicable to printers. The main problem is with cabling. Testing the port If you experience printer problems, it’s a good idea to temporarily connect a terminal in place of the printer so you can ensure some of the basic functions are working correctly.
Page 128
+ - User and Administration Guide IOLAN Configuration The first method to test this is to check the IOLAN+ Statistics Wrong - Users Status screen. This screen should show next to the port number, the printer name (if the administrator has added it) and then the diagnostic 'Waiting for incoming connection'.
Page 129
Troubleshooting & Maintenance Testing the port The first thing to ascertain is that you can talk to the modem. Check this by telneting to the port and attempting to obtain a response from the modem. The command sequence is: telnet elroy 10006 (port 6 on IOLAN elroy) If the modem is Hayes compatible, type the AT command and press the return key.
Page 130
At times, a support problem may require you to reset or Your IOLAN+ diagnose your IOLAN+. It is best to discuss this matter with your supplier or Perle technical support. A factory reset may be performed by using the reset switch.
Page 131
Troubleshooting & Maintenance The reset switch access cover (black cap) is located on the side of the unit near the Ethernet connectors for the IOLAN+ desktop unit, and on the rear of the IOLAN+ IOLAN+ 102/104. In the unlikely event that you are not able to comunicate with your IOLAN+, it is still possible to reset it to factory default condition by the following procedure: Power on the unit...
Troubleshooting & Maintenance ** Administrator ** SERVER STATISTICS REMOTE-ADMIN 1. ; ADMINISTRATION MENU <DSR+CTS >DTR+RTS 2. mark waiting for kbd or network <DSR+CTS >DTR+RTS 3. alan waiting for kbd or network >DTR+RTS 4. chris waiting for kbd or network <DSR+CTS >DTR+RTS 5.
Troubleshooting & Maintenance ** Administrator ** SERVER STATISTICS REMOTE-ADMIN ====RECEIVED==== ===========TRANSMITTED=========== PORT PER SEC TOTAL XOFF PER SEC TOTAL 3837 2075 2075 ________________________________________________________________________________ Figure 56: Server Statistics screen - port activity. Line status This is a good screen for spotting baud rate and parity errors which if malformed is rapidly incrementing.
Page 136
The list of supported variables from MIBI & MIBII can be found on the Perle web site. The SNMP trap function is set up using the Trap function screen. This is accessed from the Administration Menu .
Cabling Guide C Cabling Guide The following guide describes pinouts and cables for the IOLAN+ (DB25), IOLAN+ (RJ45) and IOLAN+ 102/104 (RJ45) units. Both versions equipped with RJ45 connectors are also available as RS-422 units. Any cable you use should be shielded to comply with FCC requirements.
+ - User and Administration Guide IOLAN C.1 Pinouts (DTE) RS-232 Figure 58: IOLAN+ DB25 connector. Description Direction Protective ground Transmitted data (103) Output Received data (104) Input Request to send (105) Output Clear to send (106) Input Data set ready (107) Input Signal ground...
Cabling Guide 1 2 3 4 5 6 7 Figure 60: IOLAN+ RJ45 Connector. Description Direction Input Data carrier detect (109) Request to send (105) Output Data set ready (107) Input Transmitted data (103) Output Received data (104) Input Signal Ground (102) Clear to send (106)
+ - User and Administration Guide IOLAN RS-422 1 2 3 4 5 6 7 Figure 62: IOLAN+ RJ45 Connector. Description Direction No connection Signal Ground Received data A Input Transmitted data A Output Transmitted data B Output Received data B Input No Connection Signal Ground...
-500 ft to 15000 ft Non-operational Temp: -30°C to +80°C Humidity: 5% to 95% RH non-condensing Approvals Electromagnetic: EN55022 Class B (IOLAN+ EN55022 Class A (IOLAN+102/104) FCC Part 15, Sub-part B, Class A (IOLAN+) Safety: EN60950 CSA C22.2 No. 950 UL1950 (CSA NRTL/C)
Page 146
(10BASE-T only on IOLAN+ 102/104). SNAP support. Network TCP/IP, UDP, ICMP,BOOTP discovery user services, TFTP Support download/upload services, PPP, SLIP & CSLIP, SNMP (MIBI,II and Perle variables). Features • Menu or command line configuration • User authentication through designated authentication host •...
Page 147
Index Index Access Menu 93 Ethernet interface 140 Administration Menu 18, 91 Ethernet ports 13 ARP 14, 111 Authentication Factory defaults 124 Host 40 Fast keys 78 Modems 39, 96 Firmware 26 Overview 39 FTP 10 Port 41 FTP sites 4 User 40 User services 43 Windows 45...
Page 148
+ - User and Administration Guide IOLAN DCD monitoring 34 Dial-in connections 33 Lines Menu 101 Dial-out connections 47 Logging 44 Dial-out routing 49 Menu 96 Hunt groups 53 Modems 39, 96 ioland 48 Overview 39 Logging 39, 96 Windows 45 Problems 122 Remote Access Devices 52, 95 Configuration 57...
Page 149
Index Printers Logging 39 Ioland printing 55 Passwords 98 LPD printing 57 Secure field 85 Problems 121 TERM field 32 RCP printing 62 Serial interfaces 140 Printing 55 Server Configuration Menu 19, 104 Hunt groups 57, 62, 67 SLIP 33 LPD 57 SNMP 107, 131 RCP 62...
Page 150
+ - User and Administration Guide IOLAN viii...
Page 153
Vmodem (Virtual modem) Vmodem is a feature of the IOLAN, which provides “modem like” communication between two IOLAN units on a network. This feature behaves like two modems connected across a telephone line. Typically, you use the Vmodem feature when you have multiple devices communicating with a central site. Vmodem allows you to achieve this using a single IOLAN unit at each end of the network without having to use multiple modems.
Page 154
6. Within the Hardware area, set the Monitor DSR field to No. Leave all other fields at their default settings. 7. In the PORT SETUP MENU screen; Press the Enter key. When prompted, select Save and exit. The ADMNINISTRATION MENU is now displayed. Press the Escape key to go back to the CONNECTIONS MENU.
Page 155
Configuring Vmodem to use Dial on DTR mode You use Dial on DTR mode because you want your device to dial a preconfigured number automatically when DTR is raised by the device. To configure your port, proceed as follows; 1. Login to your IOLAN unit using either serial link or telnet. 2.
Page 156
Making a Call using Vmodem in Dial on DTR Mode Using Vmodem in Dial on DTR mode will cause the host IP address and remote TCP port number to be called automatically on detection of the DTR signal being high. 1.
Page 157
Vmodem AT Commands Ports configured for Vmodem operation interpret the following AT command codes. +++ATH Disconnect and hang-up a connection. ATQ0 Enable connection responses for the duration of the session. ATQ1 Suppress connection responses for the duration of the session. ATV0 Selects numeric results codes for the duration of the session.
