Inter-Tel EncoreCX
Installation & Maintenance Manual

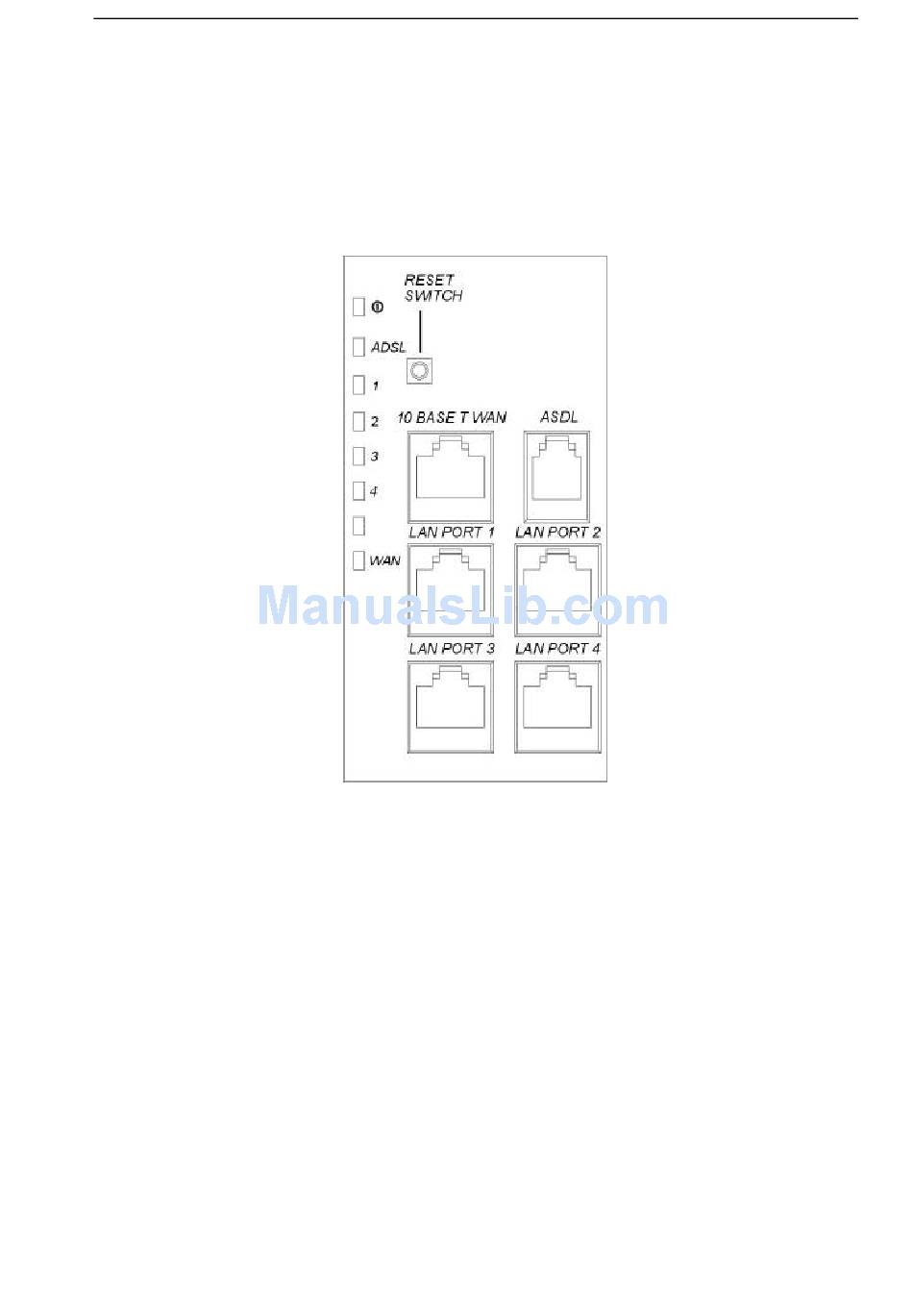

IP Router Module connections
The IP Router has a built in ADSL modem.
To connect to an ADSL line use the gray lead provided to connect between the ADSL connector on the MDF
and the data port on the splitter.
If connecting to a cable modem or a managed IP network use the blue cable to connect between the 10/100 Base-
T WAN connector and the external router / modem.
There are six indicators (LEDs) on the MDF cover.
•
Heartbeat – flashes to indicate normal processor activity
•
ADSL - a solid light indicates ADSL line synchronisation
•
LAN 1 - a solid light indicates an Ethernet connection
•
LAN 2 - a solid light indicates an Ethernet connection
•
LAN 3 - a solid light indicates an Ethernet connection
•
LAN 4 - a solid light indicates an Ethernet connection
•
There is an additional indicator inside on the MDF. This is the WAN indicator - a solid light indicates an
Ethernet connection
50
