Installation and Maintenance Manual

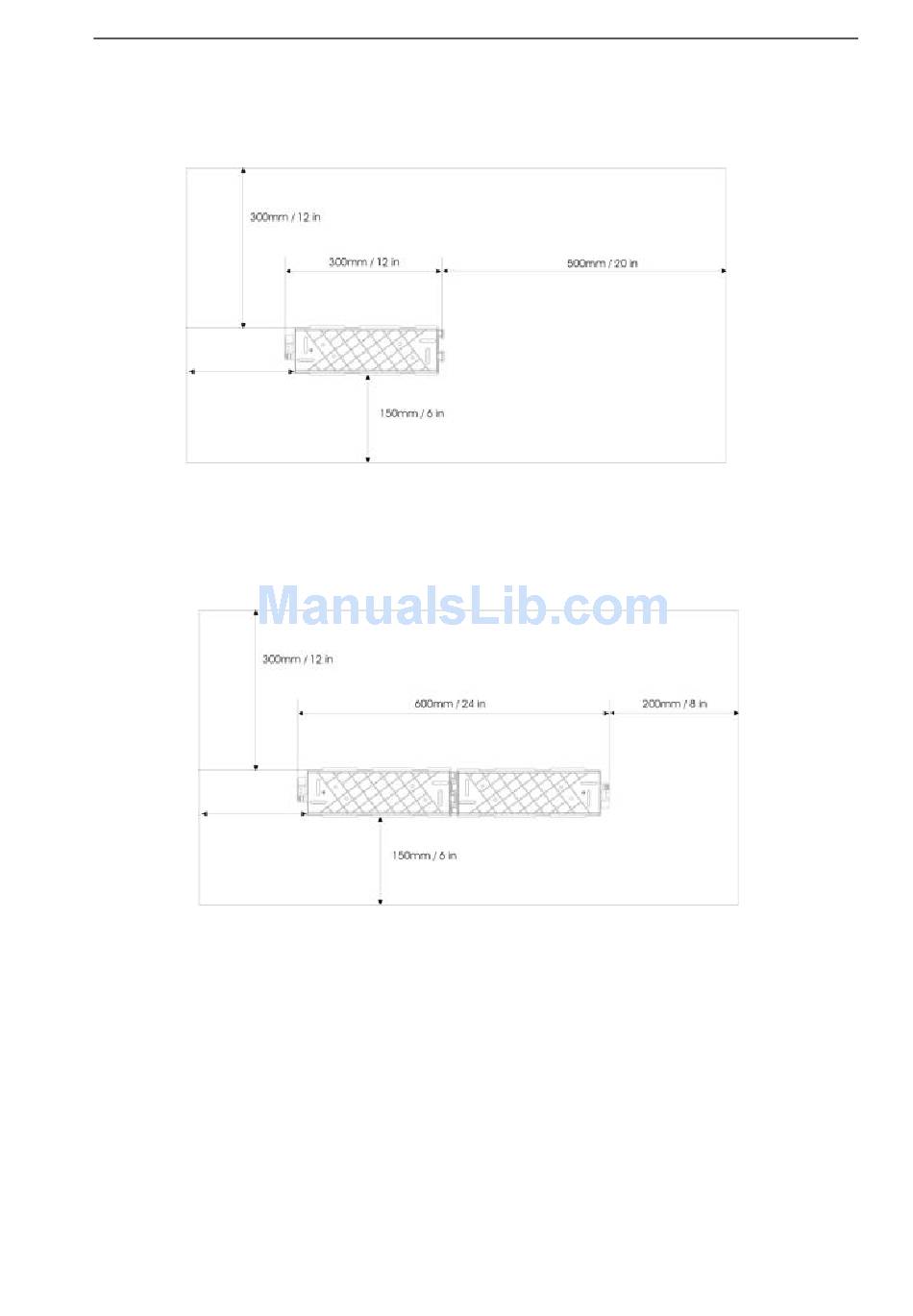

CCU Mounting bracket clearances
The main unit is mounted on a wall using the bracket supplied and should have top and side clearance as
shown below.
CCU Mounting Bracket
300mm min
If the system is to be equipped with an Expansion or IP Router Module, then two mounting brackets need to
be installed.
CCU Bracket + Backplane Bracket
