Wall-mounting an ECX 1000 or ECX 2000 telephone

The phone pedestal is inverted on the base to wall mount the phone.

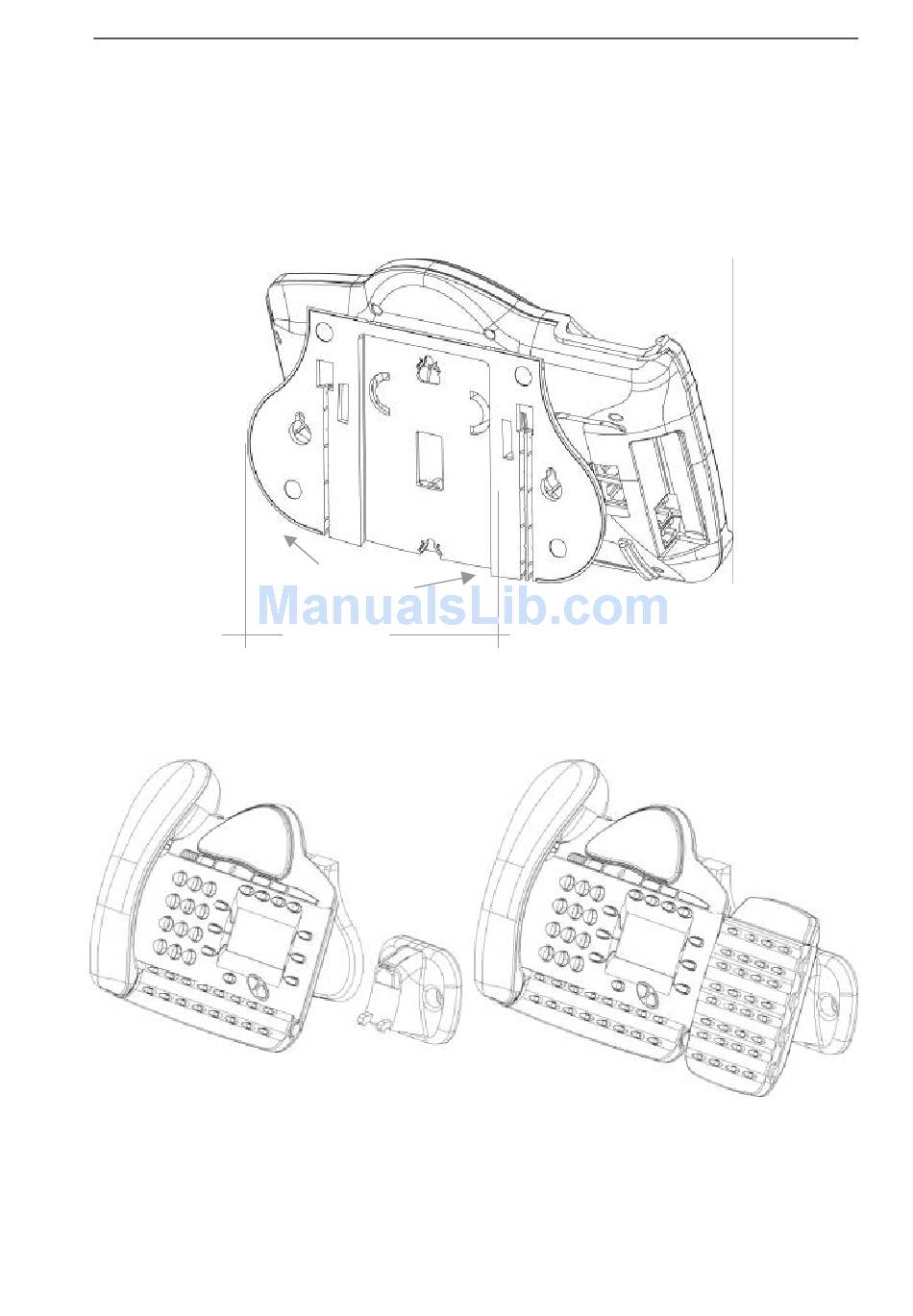

Locate, drill and plug the two screw locations as shown below. The holes should be deep enough to accept a one-
inch screw. Insert the two screws leaving sufficient space to clip the base over them. Locate the phone and base
over the screws.
Digital telephone
set in Wall-Mount
position
Line cord rails
6 inches
Installation and Maintenance Manual
ECX 2000 and DSS in
Wall-Mount position
