EncoreCX
Installation and Maintenance Manual

Direct Station Selection (DSS) unit

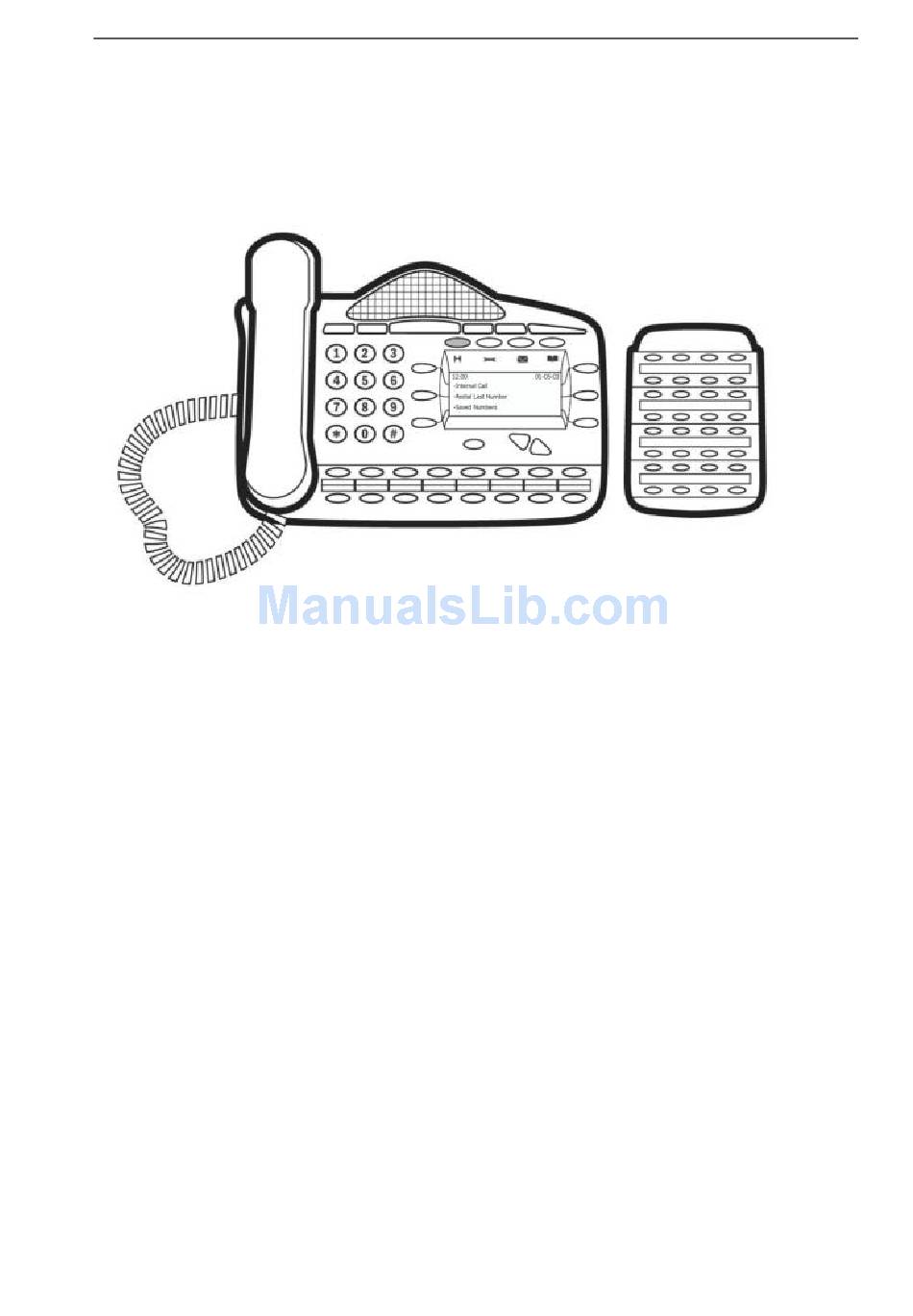

The ECX 2000 digital telephone set can be equipped with a 32-key DSS. This provides 32 additional
programmable keys.
Up to eight ECX 2000 digital telephones can be equipped with a DSS. From the system programming menus,
you program which extensions are equipped with this module.
To connect the DSS unit to an ECX 2000 digital telephone (ECX 2000 only)
Use the six-inch cord to connect the DSS to the base of the ECX 2000 digital telephone. The DSS connector is
marked on the base of the telephone.
Additional power must be supplied to the telephone. This is done by connecting the 5V power supply to the DC
jack on the base of the telephone.
37
