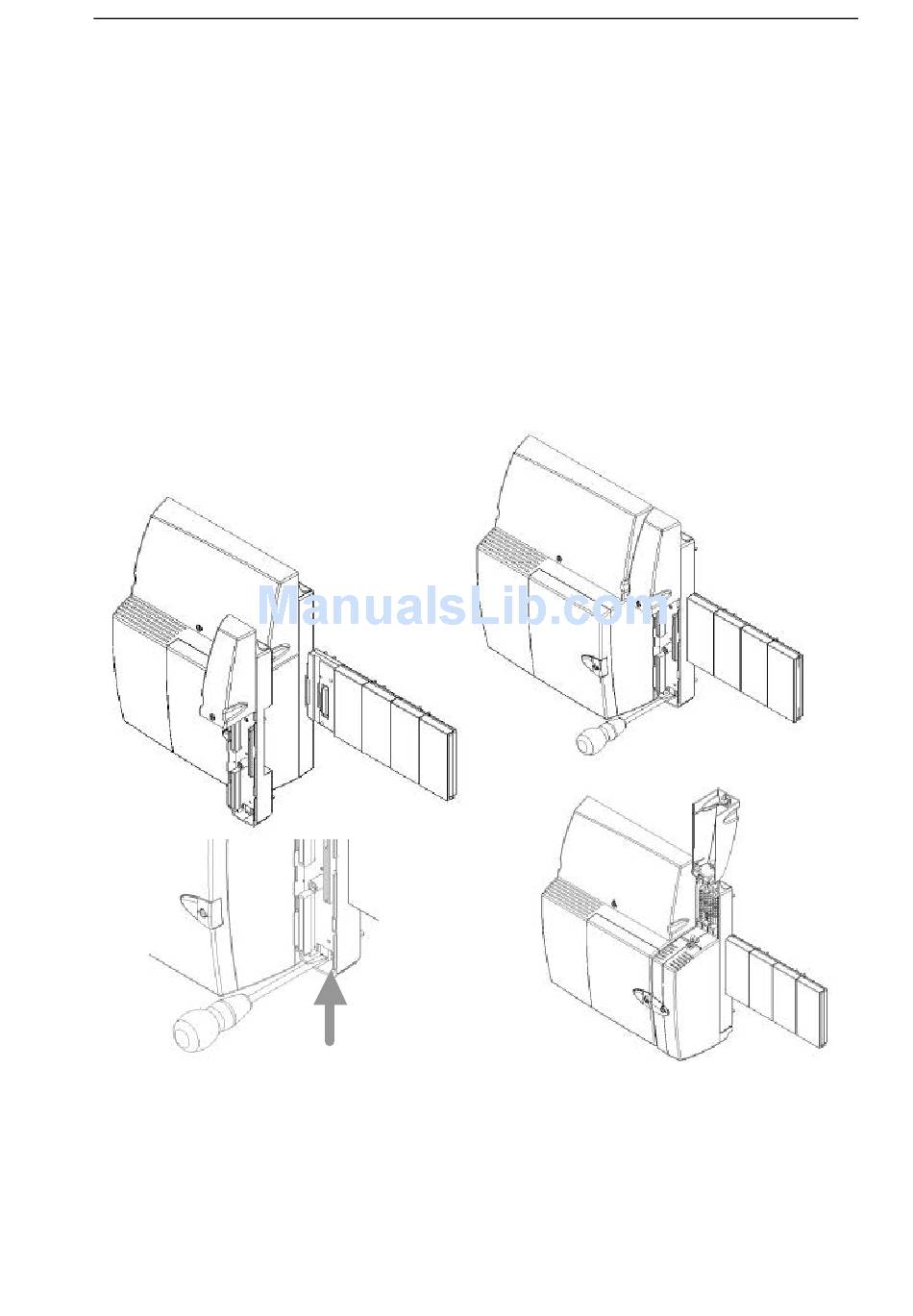

Installing the 008 module onto the backplane

1. Lift the MDF cover.
2. Align the connectors of the module and the MDF.
3. Gently push the 008 module onto the MDF.
4. Lock the 008 module in place by turning the locking screw ¼ turn clockwise with a suitable screwdriver.

Installing an expansion module

1. Install the backplane as described on page 22.
2. Install the MDF in the first free left-hand slot on the backplane.
3. Lock the MDF in place by pushing the lock bar upward using a screwdriver.
4. Lift the MDF cover and install the module.
26
Push up to lock
