4: Configuration Using Web Manager

Network Configuration

The unit's network values display when you select Network from the main menu. The
following sections describe the configurable parameters on the Network Settings
page.

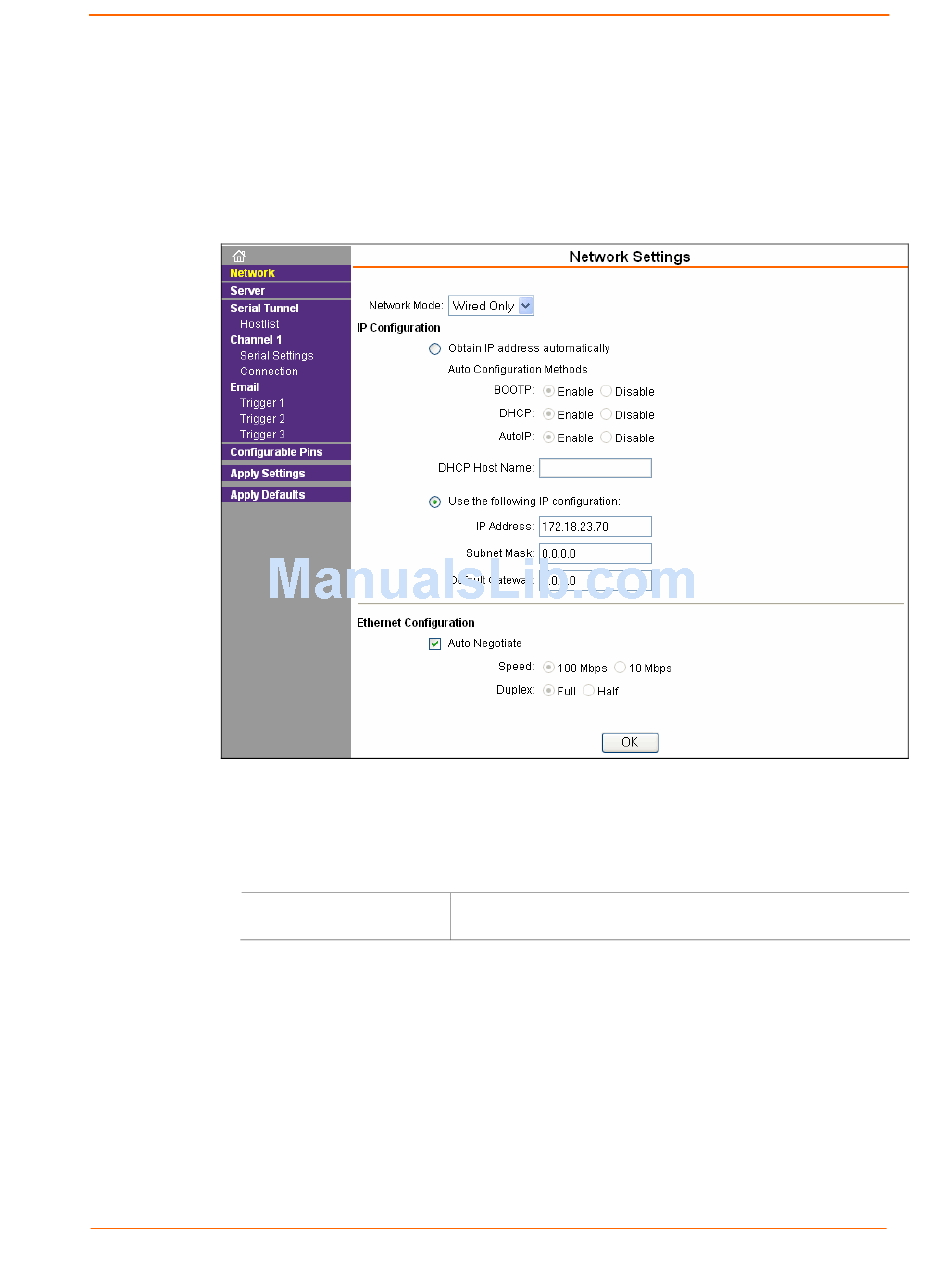

Figure 4-3. Network Settings

Network Mode

1. Click Network from the main menu.
2. Note the following:
Network Mode Wired Only is the only choice. It enables the Ethernet
network connectivity.

Automatic IP Address Configuration

An IP address can be assigned automatically. You then enter related network
settings.
To assign an IP address automatically:
1. On the main menu, click Network.
2. Select Obtain IP address automatically.
3. Enter the following (as necessary):
XPort Direct+ User Guide 19
