Download
Share
Print this page

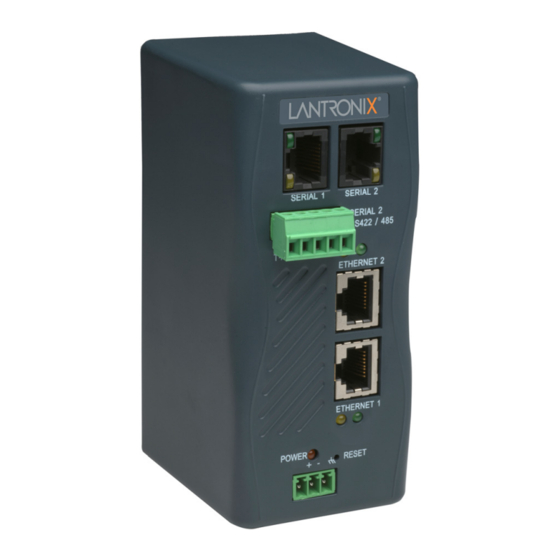

Lantronix XPress DR+ User Manual
  1. Manuals
  2. Brands
  3. Lantronix Manuals
  4. Server
  5. XPress DR+
  6. User manual

Lantronix XPress DR+ User Manual

Industrial device server
Hide thumbs Also See for XPress DR+:

Advertisement

Quick Links

Download this manual
Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution
of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business
relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components
to meet their specific needs.
With the principle of "Quality Parts,Customers Priority,Honest Operation,and Considerate Service",our business
mainly focus on the distribution of electronic components. Line cards we deal with include
Microchip,ALPS,ROHM,Xilinx,Pulse,ON,Everlight and Freescale. Main products comprise
IC,Modules,Potentiometer,IC Socket,Relay,Connector.Our parts cover such applications as commercial,industrial,
and automotives areas.
We are looking forward to setting up business relationship with you and hope to provide you with the best service
and solution. Let us make a better world for our industry!
Contact us
Tel: +86-755-8981 8866 Fax: +86-755-8427 6832
Email & Skype: info@chipsmall.com Web: www.chipsmall.com
Address: A1208, Overseas Decoration Building, #122 Zhenhua RD., Futian, Shenzhen, China
  

Advertisement

loading
Need help?

Need help?

Do you have a question about the XPress DR+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lantronix XPress DR+

Summary of Contents for Lantronix XPress DR+

  • Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.
  • Page 2 XPress™ DR+ Industrial Device Server User Guide Part Number 900-422 Revision E December 2017...
  • Page 3 Intellectual Property © 2017 Lantronix, Inc. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc in the United States and other countries.
  • Page 4 Table of Contents Changes or modifications to this device not explicitly approved by Lantronix will void the user's authority to operate this device. The information in this guide may change without notice. The manufacturer assumes no responsibility for any errors that may appear in this guide.
  • Page 5 Multi-Drop Ethernet Connections __________________________________________ 25 Power Requirements_________________________________________________ 25 Reset Switch _______________________________________________________ 25 LEDs _____________________________________________________________ 26 Dimensions ________________________________________________________ 27 Wall Mount Bracket __________________________________________________ 28 Product Information Label _____________________________________________ 28 Chapter 4: XPress DR+W Application Examples ________________________________________________ 29 XPress™ DR+ Industrial Device Server User Guide...
  • Page 6 Required Information for Initial Configuration ______________________________ 33 Hardware Address ______________________________________________________ 33 IP Address ____________________________________________________________ 34 WLAN Settings ________________________________________________________ 34 Installing the XPress DR+W for Initial Configuration ________________________ 34 Server Configuration (Option 0) ________________________________________ 35 Network Mode (XPress DR+W only) ________________________________________ 35 IP Address ____________________________________________________________ 35...
  • Page 7 Serial Settings _________________________________________________________ 53 Connection Settings - TCP _______________________________________________ 55 Connection Settings - UDP _______________________________________________ 57 WLAN Configuration (XPress DR+W only) ________________________________ 59 Applying Settings ___________________________________________________ 63 Factory Defaults ____________________________________________________ 63 Chapter 7: Configuration Using Telnet or Serial Port (Setup Mode)
  • Page 8 DisConnTime (Inactivity Timeout) _______________________________________ 82 Send Characters ____________________________________________________ 83 Telnet Terminal Type ________________________________________________ 83 Channel (Port) Password _____________________________________________ 83 WLAN Settings (XPress DR+W Only) ___________________________________ 83 Topology _____________________________________________________________ 84 Network Name (SSID) ___________________________________________________ 84 Adhoc Network Channel _________________________________________________ 84 WEP ________________________________________________________________ 85 WPA ________________________________________________________________ 86 WPA2/802.11i _________________________________________________________ 87...
  • Page 9 Default Settings (Option 7) ____________________________________________ 92 Channel 1 and Channel 2 Configuration Settings ______________________________ 92 Expert Settings ________________________________________________________ 92 Security Settings _______________________________________________________ 93 WLAN Settings (XPress DR+W only) _______________________________________ 93 Chapter 11: Firmware Upgrades Obtaining Firmware __________________________________________________ 94 Reloading Firmware _________________________________________________ 94...
  • Page 10 Figure 4-2. Ad Hoc Network Example ..............30 Figure 4-3. Serial Tunneling Infrastructure Example ........... 30 Figure 4-4. Direct XPress DR+W - to- XPress DR+W Connection ..... 31 Figure 4-5. Typical XPress DR+W Configuration ..........32 Figure 4-6. XPress DR+W Front Panel Layout ..........32 Figure 4-7.
  • Page 11 Table 3-4. Ethernet Interface Signals ..............24 Table 3-5.Typical RJ45 Connector ..............24 Table 3-6. XPress DR+ LED Functions ............... 27 Table 4-1. XPress DR+W LED Functions ............33 Table 4-2. BootP/DHCP/AutoIP options .............. 35 Table 4-3. Standard IP Network Netmasks ............36 Table 5-1.
  • Page 12 Chapter 1: Using This Guide Purpose and Audience This manual describes the Lantronix® XPress™ DR+ and XPress™ DR+W device servers. These device servers are members of the XPress family that work with Industrial Automation Protocols. The XPress DR+ W has wireless as well as wired capability.
  • Page 13 Help DeviceInstaller Online Help Provides information on using DeviceInstaller® to locate Lantronix devices on the network and configure IP addresses. "Live" tutorials on the Lantronix Explain and demonstrate assigning an IP address Web Site and setting up the unit and the Redirector.
  • Page 14 Information specific to the wireless version of the XPress DR+ unit is in Chapter 4: XPress DR+W. Note: In this User Guide we sometimes refer to the XPress DR+W as "the wireless unit" or the "wireless device server." Product Description The Lantronix XPress DR+ Industrial Device Server is a robust, feature-rich, and cost effective way to network-enable equipment in an industrial automation environment.
  • Page 15 XPress DR+. Figure 2-1. XPress DR+ (Front) Note: For a diagram and description of XPress DR+W, see Front Panel Description on page The XPress DR+ supports RS-232 through RJ45 connectors. It also supports RS-422/485 by means of screw terminals (Serial Port 2 only).
  • Page 16 For information about using any of the industrial communication protocols, see the specific protocol guides on the software CD or the Lantronix web site. Protocol firmware files are also on the CD. Note: Please check the Lantronix web site for newer versions that may become available.
  • Page 17 Standard Tunnel Protocol. XPress DR+ Application Examples Note: For XPress DR+W application examples, see Chapter 4: XPress DR+W. Using a method called serial tunneling, the XPress DR+ encapsulates serial data into packets and transports them over Ethernet. Using two XPress DR+ units, connected by a network, you can extend virtual serial connections across a facility or around the world.
  • Page 18 The hardware address is also referred to as the Ethernet address or MAC address. The first three bytes of the Ethernet address are fixed and read 00-20-4A, identifying the unit as a Lantronix product. The fourth, fifth, and sixth bytes are unique numbers assigned to each unit.
  • Page 19 Telnet connection to the network port (9999) or connecting a terminal (or a PC running a terminal emulation program) to the unit’s serial port. To use DeviceInstaller for communication to an XPress DR+W over a wireless network, the WLAN network settings must be configured first.
  • Page 20 The following diagram shows the basic connectivity of an XPress DR+ to the network and a serial device. The Lantronix-supplied P/N: 500-103 serial cable can be used on the RJ45 RS232 serial ports to connect the XPress DR+ to a PC or to a serial device that has a DB9M RS232 DTE interface.
  • Page 21 XPress DR+ Front Panel The following figure illustrates the screw block connector pinouts and other components of the XPress DR+. Note: For a description of the XPress DR+W front panel, see Chapter 4: XPress DR+W. XPress™ DR+ Industrial Device Server User Guide...
  • Page 22 Chapter 3: Installation and Hardware Figure 3-2. Front of XPress DR+ Serial Interface The XPress DR+ supports RS-232 via RJ45 connectors. It also supports RS-422/485 via screw terminals (Serial Port 2 only). Note: Serial Port 2 supports RS232, RS422, and RS485, but only one mode at a time.
  • Page 23 Chapter 3: Installation and Hardware Figure 3-3. RJ45 Connector – Front View Table 3-1. RJ45 Serial Connector Pinouts Direction Name Function Output from DR+ Ready To Send Output from DR+ Data Terminal Ready Output from DR+ Transmitted Data Ground Signal Ground Ground Signal Ground Input to DR+...
  • Page 24 PC Com port to the XPress DR+ serial port. This cable is pinned to provide full serial line control to an RS232 DTE device. Lantronix offers a comprehensive list of cables and adapters to simplify device connectivity to the XPress Appendix B: Lantronix Cables and Adapters DR+.
  • Page 25 Chapter 3: Installation and Hardware Ethernet Interface The XPress DR+ includes a two-port unmanaged Ethernet switch with a future option to migrate to a managed solution. The internal IEEE 802.3-compliant Ethernet switch is non-blocking, using a 1K MAC address lookup table with store-and-forward architecture. The XPress DR+ supports auto-negotiation for 10Base-T or 100Base-TX in full and half-duplex modes, as well as automatic MDI/MDIX crossover, allowing use of both straight-through and crossed Ethernet cables.
  • Page 26 Chapter 3: Installation and Hardware Multi-Drop Ethernet Connections Although there are two Ethernet ports, the XPress DR+ only has one MAC address and IP address. Either port can be used as the primary connection with the other used to inter-connect other Ethernet devices or cascade from one XPress DR+ to another. Figure 3-7.
