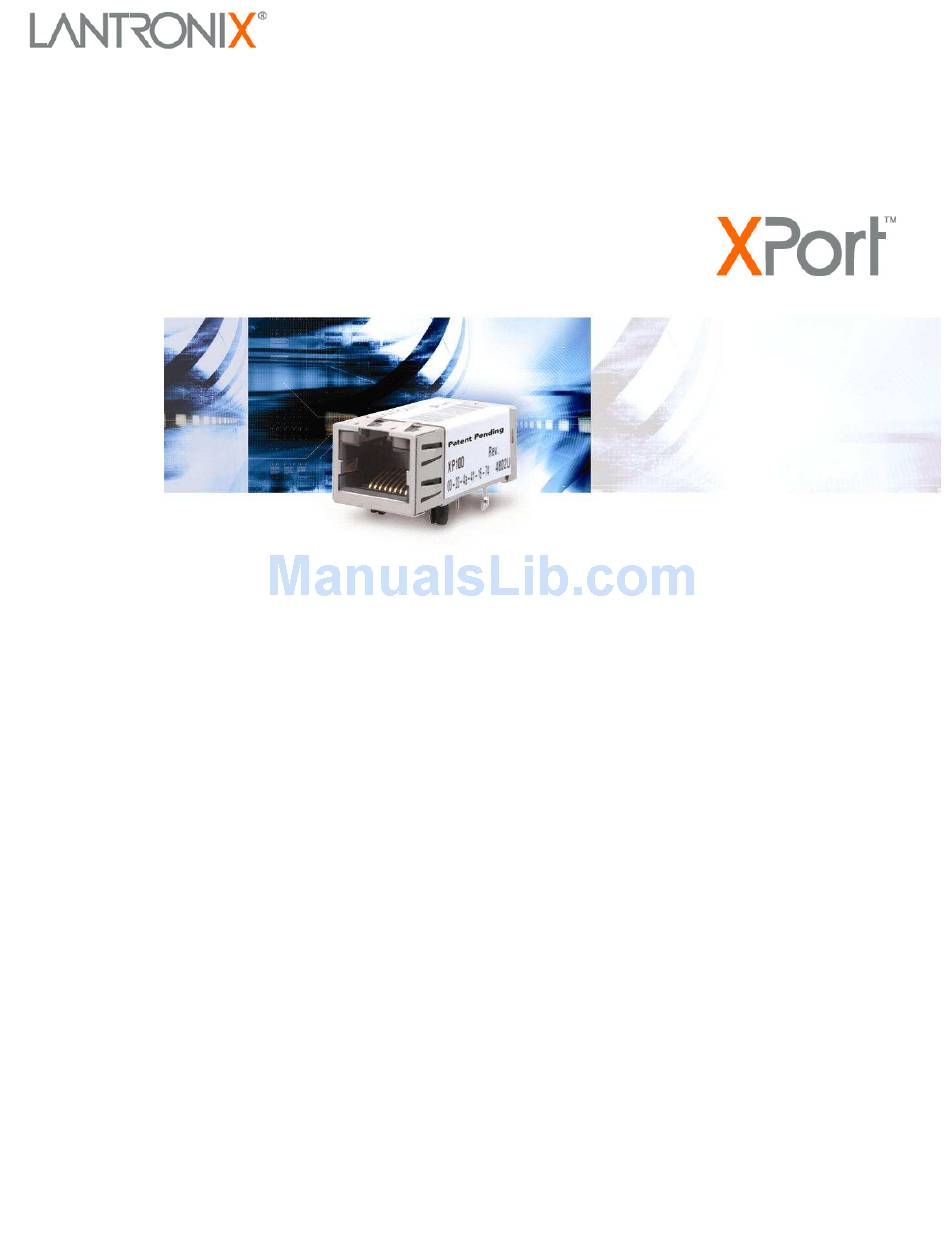

- Page 1 XPort™ Integration Guide Part Number 900-310 Revision G September 2009...
-
Page 2: Copyright & Trademark
Copyright & Trademark © 2009, Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Printed in the United States of America. -
Page 3: Table Of Contents
List of Figures .......................4 List of Tables.........................4 1. Introduction About the Integration Guide ..................5 Additional Documentation .....................5 2. Description and Specifications The XPort........................6 XPort Block Diagram.....................6 PCB Interface........................7 Ethernet Interface ......................8 LEDs ..........................8 Dimensions .........................10 Recommended PCB Layout ..................11 Product Information Label...................12 Electrical Specifications ....................12... -
Page 4: List Of Figures
Contents List of Figures Figure 2-1 Side View of the XPort ......................6 Figure 2-2 XPort Block Diagram ......................7 Figure 2-3 XPort LEDs..........................9 Figure 2-4 Front View ...........................10 Figure 2-5 Bottom View ........................10 Figure 2-6 Side View..........................10 Figure 2-7 PCB Layout .........................11 Figure 2-8 Product Label ........................12... -
Page 5: Introduction About The Integration Guide
About the Integration Guide This guide provides the information needed to test the XPort™ device server on the XPort Evaluation Board. This manual is intended for engineers responsible for integrating the XPort into their product. Note: This document covers XPort™ Device Server part numbers XP1001000-03R,... -
Page 6: Description And Specifications
Figure 2-1 Side View of the XPort MAGNETICS LEDs FLASH 25MHz RJ45 DSTni - EX CMOS IO RESET +3.3VDC XPort Block Diagram The following drawing is a block diagram of the XPort showing the relationships of the components. XPort™ Integration Guide... -
Page 7: Pcb Interface
Figure 2-2 XPort Block Diagram PCB Interface The XPort has a serial port compatible with data rates up to 920 kbps (in high- performance mode). The serial signals (pins 4–8) are 3.3V CMOS logic level, and 5V tolerant. The serial interface pins include +3.3V, ground, and reset. The serial signals usually connect to an internal device, such as a UART. -
Page 8: Ethernet Interface
Differential Ethernet receive data + Differential Ethernet receive data - Not used Terminated Not used Terminated Not used Terminated Not Used Terminated SHIELD Chassis ground LEDs The XPort contains the following LEDs: Link (bi-color, left LED) Activity (bi-color, right LED) XPort™ Integration Guide... -
Page 9: Figure 2-3 Xport Leds
2 Description and Specifications Figure 2-3 XPort LEDs LEFT RIGHT CONTACT 8 CONTACT 1 SHIELD TAB SHIELD TAB Table 2-3 XPort LED Functions XPort™ Integration Guide... -
Page 10: Dimensions
2 Description and Specifications Dimensions The XPort dimensions are shown in the following drawings. Figure 2-4 Front View 18.25 [0.719] FRONT VIEW 16.25 [0.640] DIMS = mm (in) 11.55 [0.455] 7.15 [0.281] LEFT RIGHT CONTACT 8 CONTACT 1 14.50 [0.571] 4.03 [0.158]... -
Page 11: Recommended Pcb Layout
Adding 1 inch square inch of copper flood on the PCB is adequate to allow the XPort to work up to +85° C. If the application does not expect to see t emperatures up to +85° C the heat sink may be smaller than 1 square inch. -
Page 12: Product Information Label
Figure 2-8 Product Label Electrical Specifications CAUTION: Stressing the device above the rating listed in Table 2-4 may cause permanent damage to the XPort. Exposure to Absolute Maximum Rating conditions for extended periods may affect the XPort’s reliability. Table 2-4 Absolute Maximum Ratings... -
Page 13: Technical Specifications
Technical Specifications Table 2-6 Technical Specification Category Description CPU, Memory Lantronix DSTni-EX 186 CPU, 256-Kbyte zero wait state SRAM, 512-Kbyte flash, 16-Kbyte boot ROM Firmware Upgradeable via TFTP and serial port Reset Circuit Internal 200ms power-up reset pulse. Power-drop reset triggered at 2.6V. External reset input causes an internal 200ms reset. -
Page 14: A: Rs422/485 Connection Diagram
The following example illustrates a connection between the XPort-485 to an external transceiver IC: XPort™ Integration Guide... -
Page 15: B: Compliance
(According to ISO/IEC Guide 22 and EN 45014) Manufacturer’s Name & Address: Lantronix 15353 Barranca Parkway, Irvine, CA 92618 USA Declares that the following product: Product Name Model: XPort Embedded Device Server Conforms to the following standards or other normative documents:... - Page 16 B: Compliance RoHS Notice: All Lantronix products in the following families are China RoHS-compliant and free of the following hazardous substances and elements: • • • Lead (Pb) Mercury (Hg) Polybrominated biphenyls (PBB) • • • Cadmium (Cd) Hexavalent Chromium (Cr (VI)) Polybrominated diphenyl ethers (PBDE) •...
-
Page 17: C: Warranty
For details on the Lantronix warranty replacement policy, go to our web site at www.lantronix.com/support/warranty XPort™ Integration Guide...
