7: Terminal and Host Settings
This chapter describes how to view and configure the Terminal Login Connect Menu and
associated Host configuration. It contains the following sections:

Terminal Settings


Host Configuration

The Terminal Login Connect Menu feature allows the XPort Pro embedded device server to
present a menu of predefined connections when the device is accessed via telnet, ssh, or a serial
port. From the menu, a user can choose one of the presented options and the device automatically
makes the predefined connection.
The Terminal page controls whether a Telnet, SSH, or serial port connection presents the CLI or
the Login Connect Menu. By default, the CLI is presented when the device is accessed. When
configured to present the Login Connect Menu, the hosts configured via the Hosts page, and
named serial lines are presented.
Terminal Settings
This page shows configuration settings for each terminal connection method. You can configure
whether each serial line or the telnet/SSH server presents a CLI or a Login Connect menu when a
connection is made.

Terminal Network Configuration

To configure menu features applicable to CLI access via the network:
1. Select Terminal on the menu bar, if you are not already in the Terminal web page.
2. Select Network at the top of the page. The Configuration submenu is automatically selected.
The Terminal Configuration page appears for the network.
3. Enter or modify the following settings:
XPort® Pro Embedded Device Server User Guide

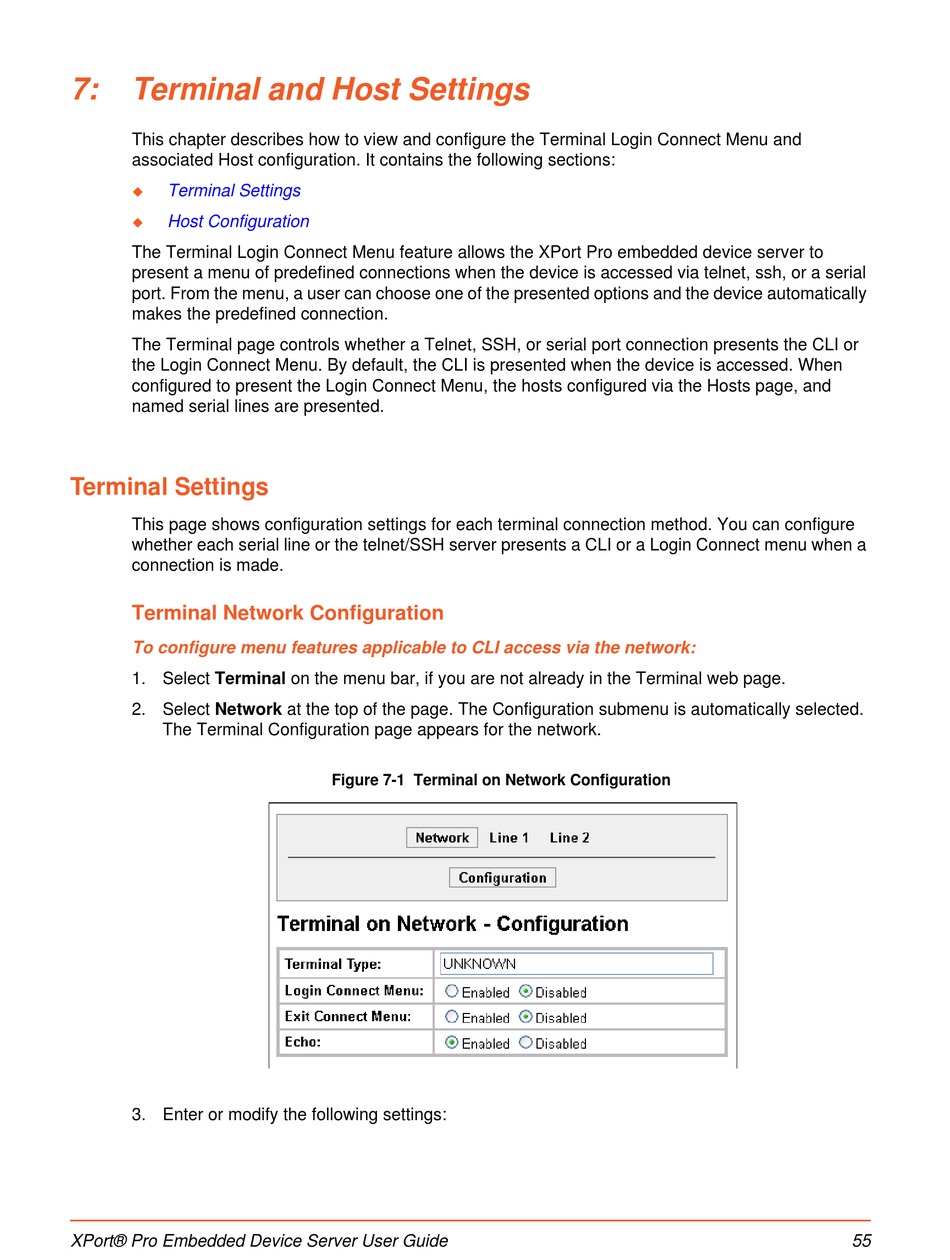

Figure 7-1 Terminal on Network Configuration

55
