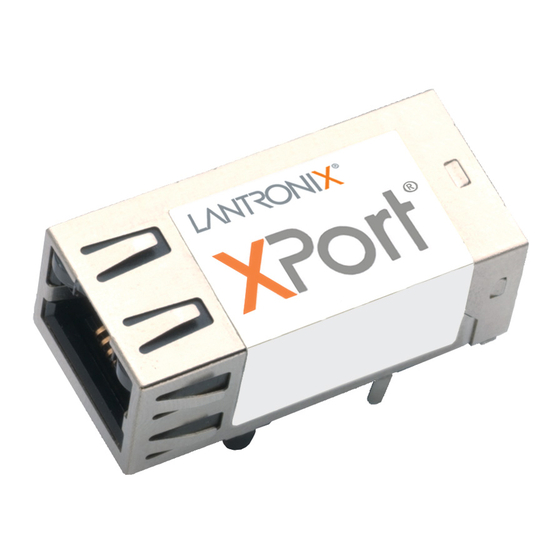

XPort
Device Server
User Guide
Part Number 900-270
Revision R January 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XPort and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lantronix XPort

Summary of Contents for Lantronix XPort

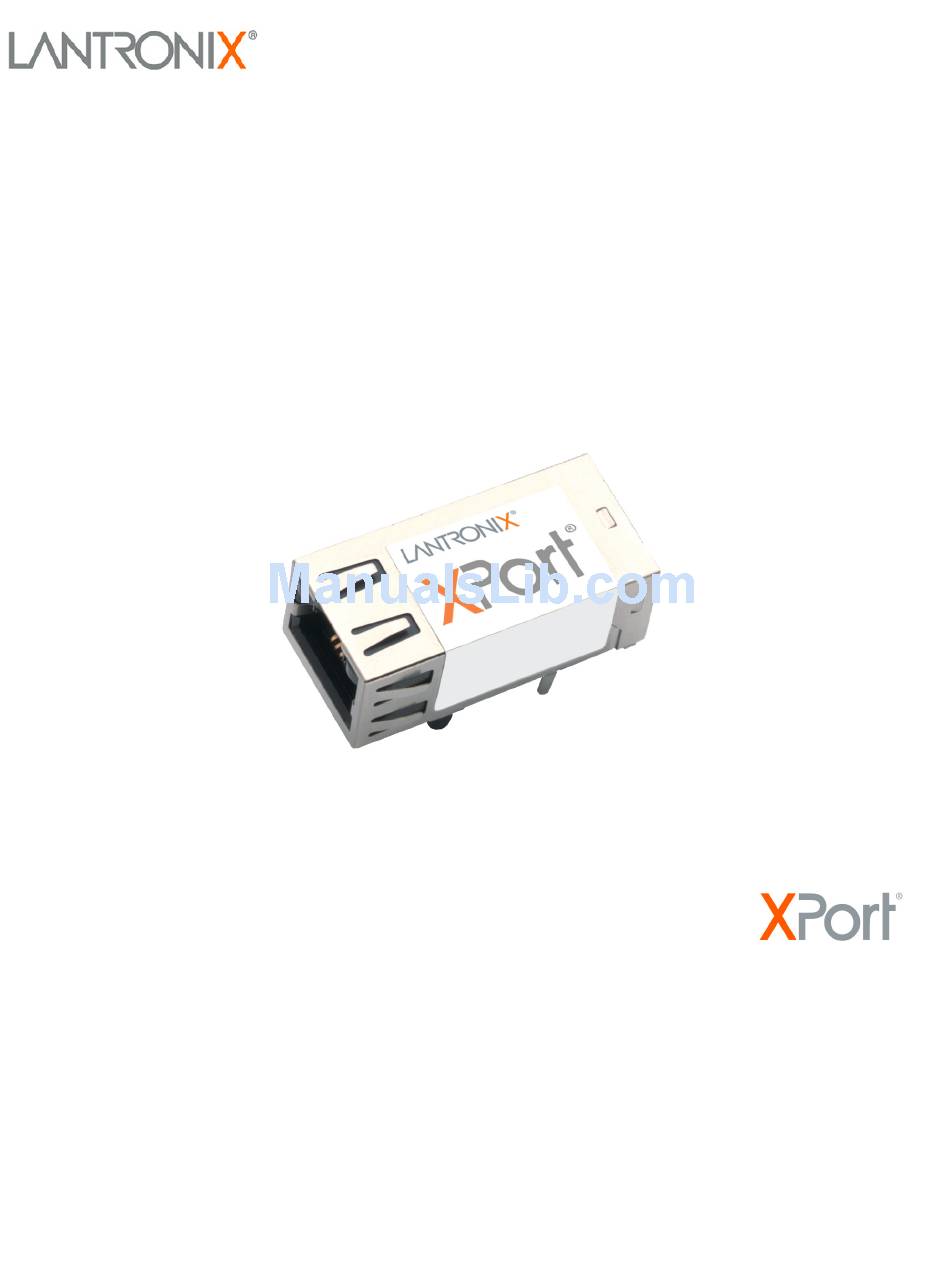

  • Page 1 XPort Device Server User Guide Part Number 900-270 Revision R January 2018...

  • Page 2: Intellectual Property

    Intellectual Property © 2018 Lantronix. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix, DeviceLinx and XPort are registered trademarks of Lantronix, Inc. in the United States and other countries.

  • Page 3: Revision History

    Updated enhanced password security information. For the latest revision of this product document, please check our online documentation at www.lantronix.com/support/documentation. If you use a previous version of the firmware, go to the Lantronix FTP site at ftp://ftp.lantronix.com/pub to find the earlier documentation.

  • Page 4: Table Of Contents

    Product Information Label ____________________________________________ 14 3. Using DeviceInstaller Installing DeviceInstaller ______________________________________________ 16 Assigning an IP Address _____________________________________________ 16 Accessing the XPort Module Using DeviceInstaller _________________________ 17 Viewing the Current Configuration ______________________________________ 17 4. Configuration Using Web Manager Accessing Web Manager Using DeviceInstaller ___________________________ 20 Network Configuration _______________________________________________ 22 XPort®...
  • Page 5 IP Address ________________________________________________________ 43 Set Gateway IP Address _____________________________________________ 44 Netmask: Number of Bits for Host Part __________________________________ 44 Set DNS Server IP Address ___________________________________________ 44 Change Telnet/Web Manager Password _________________________________ 45 DHCP Name _______________________________________________________ 45 XPort® Device Server User Guide...
  • Page 6 Send Characters ____________________________________________________ 62 Telnet Terminal Type ________________________________________________ 62 Channel (Port) Password _____________________________________________ 62 8. Setup Mode: Advanced Settings Email Settings (Option 3) _____________________________________________ 63 Mail Server _____________________________________________________ 64 Unit Name _____________________________________________________ 64 Domain Name __________________________________________________ 65 XPort® Device Server User Guide...
  • Page 7 Enable Enhanced Password _______________________________________ 73 Disable Port 77F0 (Hex) __________________________________________ 73 Default Settings (Option 7) ____________________________________________ 73 Channel 1 Configuration Defaults ___________________________________ 73 Expert Settings Defaults __________________________________________ 74 Security Settings Defaults _________________________________________ 74 Email Settings __________________________________________________ 75 XPort® Device Server User Guide...
  • Page 8 Problems and Error Messages _________________________________________ 87 A: Lantronix Technical Support B: Binary to Hexadecimal Conversions Converting Binary to Hexadecimal ______________________________________ 91 Conversion Table ________________________________________________ 91 Scientific Calculator ______________________________________________ 91 C: Compliance RoHS, REACH and WEEE Compliance Statement _________________________ 93 XPort® Device Server User Guide...

  • Page 9: List Of Figures

    List of Figures Figure 2-1. Product Label ________________________________________________ 15 Figure 4-1. Web Manager Login Window ____________________________________ 21 Figure 4-2. Lantronix Web Manager ________________________________________ 21 Figure 4-3. Network Settings _____________________________________________ 22 Figure 4-4. Server Settings _______________________________________________ 25 Figure 4-5. Hostlist Settings ______________________________________________ 27 Figure 4-6.

  • Page 10: Using This Guide

    XPort-05 XP1001000-05R XP1002000-05R XP100200S-05R It provides the information needed to configure, use, and update the XPort firmware and is intended for OEMs and system integrators who are embedding the XPort module in their end product designs. Chapter Summary The remaining chapters in this guide include:...

  • Page 11: Additional Documentation

    XPort Device Server Integration Provides information about the XPort module hardware, testing Guide the XPort device server using the demonstration board, and integrating the XPort device into your product. XPort Universal Demo Board Provides the steps for getting the XPort module demonstration Quick Start board up and running.

  • Page 12: Introduction

    Has three programmable I/O pins used to monitor or control attached devices.  Applications The XPort device server connects serial devices such as those listed below to Ethernet networks using the IP protocol family. ATM machines ...

  • Page 13: Protocol Support

    Hardware Address You need to know the unit’s hardware address (also known as a MAC address). It is on the product label, in one of the following formats depending on the model of your XPort unit: Hardware Address for XPort-05: 00-80-A3-____-____-____...

  • Page 14: Ip Address

    IP Address Every device connected to an IP network must have a unique IP address. This address is used to reference the specific unit. The XPort is automatically assigned an IP address on DHCP-enabled networks, as it is DHCP-enabled by default.

  • Page 15: Figure 2-1. Product Label

    Part Number* Serial Number* Patent Revision Country of Origin Date Code of Manufacturing Note: The Part Number* and MAC Address/Serial Number* on the product label will vary according the unit model (XPort-03, XPort-04 or XPort-05). XPort® Device Server User Guide...

  • Page 16: Using Deviceinstaller

    Note: If the unit already has an IP address (e.g., DHCP has assigned an IP address), click the Search icon and select the unit from the list of Lantronix device servers on the local network. 2. Click the Assign IP icon.

  • Page 17: Accessing The Xport Module Using Deviceinstaller

    2. Click the XPort folder. The list of available Lantronix XPort devices displays. 3. Expand the list of XPort modules by clicking the + symbol next to the XPort icon. Select the XPort unit by clicking on its IP address to view its configuration.
  • Page 18 3: Using DeviceInstaller DHCP Device Name Non-configurable field. Displays the name associated with XPort module’s current IP address, if the IP address was obtained dynamically. To change the DHCP device name, see Configuration Using Web Manager Configuration via Telnet or Serial Port (Setup Mode).
  • Page 19 Maximum Baud Rate Supported Non-configurable field. Displays the XPort module’s maximum baud rate. Note: the XPort unit may not currently be running at this rate. Firmware Upgradeable Non-configurable field. Displays True, indicating the XPort module’s firmware is upgradeable as newer version become available.

  • Page 20: Configuration Using Web Manager

    2. Click on the XPort folder. The list of available XPort modules displays. 3. Expand the list of XPort device servers by clicking the + symbol next to the XPort icon. 4. Select the XPort unit by clicking its hardware address.

  • Page 21: Figure 4-1. Web Manager Login Window

    We recommend that you always use the enhanced password setting and create a strong 16 character password. See Security Settings (Option 6) on page Figure 4-2. Lantronix Web Manager The main menu is in the left pane of the Web Manager window. XPort® Device Server User Guide...

  • Page 22: Network Configuration

    Automatic IP Address Configuration An IP address can be assigned automatically. You then enter related network settings. To assign an IP address automatically: 1. On the main menu, click Network. 2. Select Obtain IP address automatically. XPort® Device Server User Guide...

  • Page 23: Static Ip Address Configuration

    Protocol (DHCP) to assign a leased IP address to the XPort unit automatically. Enable is the default. AutoIP Select Enable to permit the XPort module to generate an IP in the 169.254.x.x address range with a Class B subnet. Enable is the default.

  • Page 24: Ethernet Configuration

    Speed: The speed of data transmission. The default is  100 Mbps. Duplex: The direction of data transmission. The default is  Full. 3. When you are finished, click the OK button. 4. On the main menu, click Apply Settings. XPort® Device Server User Guide...

  • Page 25: Server Configuration

    The unit’s server values display when you select Server from the main menu. The following sections describe the configurable parameters on the Server Settings page. Figure 4-4. Server Settings To configure the XPort module’s device server settings: 1. On the main menu, click Server. 2. Configure or modify the following fields:...

  • Page 26: Advanced

    4. On the main menu, click Apply Settings. Host List Configuration The XPort module scrolls through the host list until it connects to a device listed in the host list table. After a successful connection, the unit stops trying to connect to any others. If this connection fails, the unit continues to scroll through the table until the next successful connection.

  • Page 27: Retry Settings

    2. Enter or modify the following fields: Retry Settings Retry Counter Enter the value for the number of times the XPort device server should attempt to retry connecting to the host list. Retry Timeout Enter the duration (in milliseconds) the XPort unit should abandon attempting a connection to the host list.

  • Page 28: Serial Settings

    The unit and attached serial device, such as a modem, must agree on a speed or baud rate to use for the serial connection. Valid baud rates are 300, 600, 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, 230400, 460800, or XPort® Device Server User Guide...
  • Page 29 Match 2 Byte Sequence Use to indicate the end of a series of data to be sent as one group. The sequence must occur sequentially to indicate end of the data collection to the XPort device services. The default is No. Match Bytes Use to indicate the end of a series of data to be sent as one group.
  • Page 30 3. When you are finished, click the OK button. 4. On the main menu, click Apply Settings. Connection Settings - TCP To configure a channel’s TCP settings: 1. On the main menu, click Connection. The Connection Settings window for the channel displays. XPort® Device Server User Guide...

  • Page 31: Figure 4-7. Tcp Connection Settings

    4: Configuration Using Web Manager Figure 4-7. TCP Connection Settings XPort® Device Server User Guide...
  • Page 32 50,000 to 59,999 and loops back to the beginning when the maximum range is reached. Remote Port Enter the remote port number. Remote Host Enter the IP address of the remote device. XPort® Device Server User Guide...

  • Page 33: Common Options

    The default port number for Port 1 is 10001 and 10002 for Port 2. However, port numbers may be set to a different value 3. When you are finished, click the OK button. 4. On the main menu, click Apply Settings. XPort® Device Server User Guide...

  • Page 34: Connection Settings - Udp

    Enter the local port number. Remote Port Enter the port number of the remote device. Remote Host Enter the IP address of the remote device. Use Broadcast Select to broadcast the UDP datagram. The default is not to XPort® Device Server User Guide...

  • Page 35: Email Configuration

    Enter the IP address of the mail server. Server Port Enter the port number on the email server. Domain Name Enter the email server’s domain name. Unit Name Enter the user name used by the XPort unit to send email XPort® Device Server User Guide...

  • Page 36: Recipients

    None. If both the serial sequence and the configurable pins are disabled, the trigger is disabled. To configure the XPort module’s email trigger settings: 1. On the main menu, click Trigger 1, Trigger 2, or Trigger 3 to configure the desired trigger settings.

  • Page 37: Message Properties

    3. When you are finished, click the OK button. 4. On the main menu, click Apply Settings. Configurable Pin Settings There are three configurable hardware pins on the XPort unit. For each pin, configure the pin function, communication direction, and activity level. For more information, see 9 GPIO Interface.

  • Page 38: Configurable Pin Functions

    Note: Clicking OK on each page does not change the configuration on the device. Clicking the OK button tells the XPort module what changes to use; the Apply Settings button makes the changes permanent and reboots the XPort device server.

  • Page 39: Figure 4-12. Apply Settings And Apply Defaults

    4: Configuration Using Web Manager 2. Click Yes to set factory settings or click No to cancel. Figure 4-12. Apply Settings and Apply Defaults XPort® Device Server User Guide...

  • Page 40: Configuration Via Telnet Or Serial Port (Setup Mode)

    The series of prompts at which you enter configuration settings is called Setup Mode. Note: Detailed information about other setup methods is available from your Lantronix Sales Associate. The unit’s configuration is stored in nonvolatile memory and is retained without power. You can change the configuration at any time.

  • Page 41: Figure 5-1. Mac Address

    5. To enter a value for a parameter, type the value and press Enter, or to confirm a current value, just press Enter. 6. When you are finished, save the new configuration (option 9). The unit reboots. XPort® Device Server User Guide...

  • Page 42: Serial Port Connection

    Note: The XPort module always uses these serial port settings on boot-up. 3. Reset the XPort unit by cycling the unit's power (turning the power off and back on). Immediately upon resetting the device, enter three lowercase x characters (xxx).

  • Page 43: Setup Mode: Server Configuration

    If DHCP is used, the third octet of the IP address sets the BootP/DHCP/AutoIP options. The following table shows the bits you can manually configure to force the XPort module to disable AutoIP, DHCP, or BootP. To disable an option, set the appropriate bit.

  • Page 44: Set Gateway Ip Address

    Y. At the prompt, enter the DNS server address. If the device is DHCP enabled, the DHCP server provides the DNS server IP address, which will override this configured value. Note: This setting is applicable only in Manual Connection mode. Set DNS Server IP addr (N) ? _ XPort® Device Server User Guide...

  • Page 45: Change Telnet/Web Manager Password

    UDS1100 sends to the DHCP server will be "Test_Lab43". Note that this has no effect on the IP address assigned to the UDS1100 by the DHCP server, it is only a method to add a two-digit number to the DHCP name specified. XPort® Device Server User Guide...

  • Page 46: Enable Dhcp Fqdn Option

    The FQDN consists of two parts, the hostname and the domain name. For example, an FQDN for your device might be myxport.lantronix.com. The hostname is myxport, and the host is located within the domain lantronix.com. The option to enable DHCP FQDN becomes available if DHCP is enabled.

  • Page 47: Setup Mode: Channel Configuration

    Auto increment source port (N) ? Remote IP Address : (000) .(000) .(000) .(000) Remote Port (0) ? DisConnMode (00) ? FlushMode (00) ? DisConnTime (00:00) ?: SendChar 1 (00) ? SendChar 2 (00) ? XPort® Device Server User Guide...

  • Page 48: Baudrate

    Valid baud rates are 300, 600, 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200, and 230400 bits per second. XPort module also supports high-performance baud rates of 460800 and 921600 bits per second. (See on page 67).

  • Page 49: I/F (Interface) Mode

    RS-232C, 7-bit, Even Parity, 1 stop bit 0111 1000 RS-485 2-Wire and RS-422 4-Wire Additional settings for RS-422 4-wire and RS-485 2-wire are available on the XPort models. Note: All bit positions in the table that are blank represent “don’t care” bits, for that particular option, which can be set to either a 0 or 1 value.

  • Page 50: Flow

    Use Port 0 for the outgoing local port to change with each connection. The port range is 50,000 to 59,999. Each subsequent connection increments the number by 1 (it wraps back around to 50,000). XPort® Device Server User Guide...

  • Page 51: Connect Mode

    D=disconnect, N=unreachable) c) Active Startup No active startup With any character With active Modem Control In With a specific start character Manual connection Autostart Hostlist d) Datagram Type Directed UDP e) Modem Mode No Echo XPort® Device Server User Guide...

  • Page 52: A) Incoming Connection

    With active Modem Control from not asserted to asserted. With a Specific Start Attempts to connect when it receives a specific start character Character from the serial port. The default start character is carriage return. XPort® Device Server User Guide...

  • Page 53: Table 7-7. Manual Connection Address Example

    Connects to 129.1.28.10, port 12 C0.0.0.0/0 Enters Monitor Mode Cwww.lantronix.com/80 Tries to connect to the Lantronix web server if the <hostname:domain> (www.lantronix.com) is configured in the DNS server database. If you enable Autostart, the unit automatically connects to the Autostart (Automatic...

  • Page 54: Figure 7-2. Apply Settings And Apply Defaults

    3. After completing the hostlist, repeat the previous step if necessary to edit the hostlist again. 4. For Retrycounter, enter the number of times the Lantronix unit should try to make a good network connection to a hostlist entry that it has successfully ARPed. The range is 1-15, with the default set to 3.

  • Page 55: D) Datagram Type

    A user must dial from the local PC to the remote machine, accumulating phone charges for each connection. Modem Mode allows you to replace modems with XPort modules, and to use an Ethernet connection instead of a phone call. By not having to change communications applications, you avoid potentially expensive phone calls.
  • Page 56  responds affirmatively according to the selected echo/response mode and drops the network connection. The serial interface reverts to accepting command strings. If this sequence is not followed, the unit remains in data transfer mode. XPort® Device Server User Guide...

  • Page 57: Send The Escape Sequence (+++) In Modem Mode

    The unit recognizes these AT commands as single commands such as ATE0 or ATV1; it does not recognize compound commands such as ATE0V. Send the Escape Sequence (+++) in Modem Mode Send ‘+++’ in Modem Mode (Y) ? _ XPort® Device Server User Guide...

  • Page 58: Show Ip Addr After 'Ring

    7: 59BSetup Mode: Channel Configuration Disable or enable the XPort device’s ability to send the escape sequence. The default is Y (Yes) (send the escape sequence). Show IP addr after 'RING' Show IP addr after ‘RING’ <Y> ? Disable or enable the XPort module's ability to show the IP address after RING in Modem Mode.

  • Page 59: Disconnmode

    Disconnect with EOT must be enabled for Disconnect with EOT to function properly. Ctrl+D is only detected going from the serial port to the network. (6) When Modem Control In transitions from a high state to a low state, the network connection to or from the serial port drops. XPort® Device Server User Guide...

  • Page 60: Flush Mode (Buffer Flushing)

    Pack control settings are enabled in Flush Mode. Set this value to 00 if you do not need specific functions. Note: All bit positions in the table that are blank represent “don’t care” bits, for that particular option, which can be set to either a 0 or 1 value. XPort® Device Server User Guide...

  • Page 61: Packing Interval

    "transmit" condition is found. If this option is set, the unit sends immediately after recognizing the transmit condition (sendchar or timeout). Note: A transmission might occur if status information needs to be exchanged or an acknowledgment needs to be sent. XPort® Device Server User Guide...

  • Page 62: Disconntime (Inactivity Timeout)

    IBM hosts. Channel (Port) Password This parameter appears only if the channel (port) password option is enabled in Disconnect Mode. With this option enabled, you can set a password on the serial port. XPort® Device Server User Guide...

  • Page 63: Setup Mode: Advanced Settings

    Trigger input1 [A/I/X] (X) ? Trigger input2 [A/I/X] (X) ? Trigger input3 [A/I/X] (X) ? Message () ? Priority (L) ? Min. notification interval (1 s) ? Re-notification interval (0 s) ? - Trigger 2 XPort® Device Server User Guide...

  • Page 64: Mail Server

    The current value is displayed in parentheses. Mail server (0.0.0.0) ? (000) .(000) .(000) .(000)_ Unit Name Enter the username used by the XPort module to send email messages. The current value is displayed in parentheses. Unit name () ? _...

  • Page 65: Domain Name

    To change the configurable pins’ settings, send setup records to Port 77FE. Message The subject line of the trigger event email to the specified recipient(s). Priority The priority level for the trigger even email. Enter L for normal priority or H for high priority. XPort® Device Server User Guide...

  • Page 66: Trigger 2

    HTTP Port Number : (80) ? SMTP Port Number : (25) ? MTU Size (512 - 1400): (1400) ? TCP Re-transmission Timeout (500 - 4000) (ms): (500) ? Enable alternate MAC (N) ? Ethernet connection type: (0) ? XPort® Device Server User Guide...

  • Page 67: Tcp Keepalive Time In Seconds

    If a baud rate of 460 Kbps or 920 Kbps is set and the high performance  mode is disabled, the operation of the serial channel would be out of the specified error tolerance, thereby leading to inconsistent speed settings on the two ends of the serial channel. XPort® Device Server User Guide...

  • Page 68: Disable Monitor Mode At Bootup

    50. RS-485 TX Enable Active Level Note: The following applies to XPort model XP1004000-03 (XPort-485). This option allows the selection of the active level (either active high or active low) for the RS485_TXEN signal. The default is active low.

  • Page 69: Tcp Re-Transmission Timeout

    TCP Re-transmission Timeout This feature allows the configuration of the desired TCP re-transmission timeout value. If the ACK is not received for a packet sent from the XPort device, then the unit will retransmit the data. The valid range is 500-4000 msec.

  • Page 70: Disable Snmp

    Port 77FE will prevent users from accessing the setup menu from the network. Port 77FE is a setting that allows DeviceInstaller, Web Manager, and custom programs to configure the unit remotely. You may wish to disable this capability for security purposes. XPort® Device Server User Guide...

  • Page 71: 77Feh Access Mode

    Rijndael is the block cipher algorithm chosen by the National Institute of Science and Technology (NIST) as the Advanced Encryption Standard (AES) to be used by the US government. The XPort module supports 128-, 192-, and 256-bit encryption key lengths. XPort® Device Server User Guide...
  • Page 72 To configure AES encryption on the XPort module: 1. When prompted to enable encryption, select Y. 2. When prompted, enter the encryption key length. The XPort device server supports 128-, 192-, and 256-bit encryption key lengths. 3. When prompted to change keys, select Y.

  • Page 73: Enable Enhanced Password

    Enable Enhanced Password (Y) ? _ Disable Port 77F0 (Hex) Port 77F0 is a setting that allows a custom application to query or set the three XPort module configurable pins when they are functioning as general purpose I/O (GPIO). You may want to disable this capability for security purposes.

  • Page 74: Expert Settings Defaults

    Disable Telnet setup Disable TFTP Firmware Update Disable Port 77FEh 77FEh Access Mode 0 (Read & Write) Disable Web Server Disable Web Setup Disable ECHO ports Enable Encryption Enable Enhanced Password Disable Port 77F0h XPort® Device Server User Guide...

  • Page 75: Email Settings

    8: Setup Mode: Advanced Settings Email Settings Priority Min. notification interval 1 (second) All other parameters 0 (e.g., email notification and triggers are disabled) XPort® Device Server User Guide...

  • Page 76: Gpio Interface

    9. GPIO Interface Configurable Pins The XPort module has three pins (CP1-3) that you can configure for General Purpose I/O (GPIO). Note: You can also configure the pins for serial port control lines, such as hardware control, modem control (CTS, RTS, DTR, and DCD), and diagnostic outputs to LED, using DeviceInstaller.

  • Page 77: Guidelines

    Guidelines The GPIO control protocol is described from the PC side. Send means from PC to XPort module. Response comes from XPort device server to PC. The protocol allows for control of up to 32 GPIOs. How many are actually available depends on the product.
  • Page 78 0 means it is active high (3.3V when active, 0V when inactive). Command 13h, Get Current States Send: No parameters Response: 1 parameter Bytes 1-4: States Bit X 1 means GPIO X is active 0 means it is inactive. XPort® Device Server User Guide...
  • Page 79 0 means the state for that GPIO will not change. Bytes 5-8: New States Bit X 1 means GPIO X will become active. 0 means it will become inactive. Response: 1 parameter Bytes 1-4: Updated states XPort® Device Server User Guide...

  • Page 80: Examples

    Examples Example 1: PC sends command 10h to find out which configurable pins are available as GPIO. PC -> XPort: 10h, 00h, 00h, 00h, 00h, 00h, 00h, 00h, 00h XPort -> PC: 10h, 03h, 00h, 00h, 00h Command details: 10h = command 10h...

  • Page 81: 10. Firmware Upgrades

    10. Firmware Upgrades Obtaining Firmware You can obtain the most up-to-date firmware and release notes for the unit from the Lantronix web site (www.lantronix.com/support/downloads) or by using anonymous FTP (ftp.lantronix.com/pub). Reloading Firmware Note: For details on upgrading to version 6.1.0.0 (or higher) from pre-6.1.0.0, see the XPort module Upgrade Notice on the Lantronix ftp site (ftp.lantronix.com).

  • Page 82: Using Tftp: Command Line Interface

    –i <ip address> put <local filename> <destination file name> The following examples below demonstrate the TFTP command sequence to download the .rom file and the .cob file for each XPort model. For XPort-05 modules: tftp –i 192.168.1.111 put xpt05_61000.rom X9 tftp –i 192.168.1.111 put xpt_webm_2005.cob WEB1...

  • Page 83: Recovering The Firmware Using The Serial Port And Deviceinstaller

    5. For Firmware File, click the Browse button and go to the location where the firmware file resides. Note: Make sure the XPort module on which you are recovering firmware is connected to this selected port on your PC. 6. Click OK to download the file.

  • Page 84: 11. Monitor Mode

    IP address. If you do not enter the IP address, the command is executed locally. Note: All commands must be in capital letters. Responses to some of the commands are in Intel Hex format. XPort® Device Server User Guide...
  • Page 85 , co 192.168.0.10 8 192.168.0.1 10001 192.168.1.10 and DNS server IP with 192.168.0.10 = IP address of the XPort module 8 = number of hostbits 192.168.0.1 = gateway IP address 10001 = port number of the XPort module 192.168.1.10 = IP address of the DNS Server...
  • Page 86 Entering any of the commands listed above generates one of the following command response codes: Table 11-2. Command Response Codes Response Meaning 0> OK; no error 1> No answer from remote device 2> Cannot reach remote device or no answer 8> Wrong parameter(s) 9> Invalid command XPort® Device Server User Guide...

  • Page 87: 12. Troubleshooting

    This chapter discusses how you can diagnose and fix errors quickly without having to contact a dealer or Lantronix. It helps to connect a terminal to the serial port while diagnosing an error to view summary messages that may display. When troubleshooting, always ensure that the physical connections (power cable, network cable, and serial cable) are secure.
  • Page 88 If you get a response, then there is a duplicate IP address on the network. If you do not get a response, use the serial port to verify that Telnet is not disabled. XPort® Device Server User Guide...
  • Page 89 "No Connection With on the device server. router that you are using on the The Device Server" message network. Also, make sure that displays. port 77FEh is not disabled within the Security settings of the device server. XPort® Device Server User Guide...

  • Page 90: A: Lantronix Technical Support

    Lantronix Technical Support Lantronix offers many resources to support our customers and products at http://www.lantronix.com/support. For instance, ask a question, find firmware downloads, access the FTP site and search through tutorials, FAQs, bulletins, warranty information, extended support services, and product documentation.

  • Page 91: B: Binary To Hexadecimal Conversions

    Windows’ operating systems. For example: 1. On the Windows’ Start menu, click ProgramsAccessoriesCalculator. 2. On the View menu, select Scientific. The scientific calculator displays. 3. Select Bin (Binary), and type the number to convert. XPort® Device Server User Guide...
  • Page 92 Hexadecimal Conversions B: Binary 4. Click Hex. The hexadecimal value displays. XPort® Device Server User Guide...

  • Page 93: C: Compliance

    Compliance RoHS, REACH and WEEE Compliance Statement Please visit http://www.lantronix.com/legal/rohs/ for Lantronix’s statement about RoHS, REACH and WEEE compliance. XPort® Device Server User Guide...
