RealPresence Collaboration Server (RMX) 1500/1800/2000/4000 Getting Started Guide

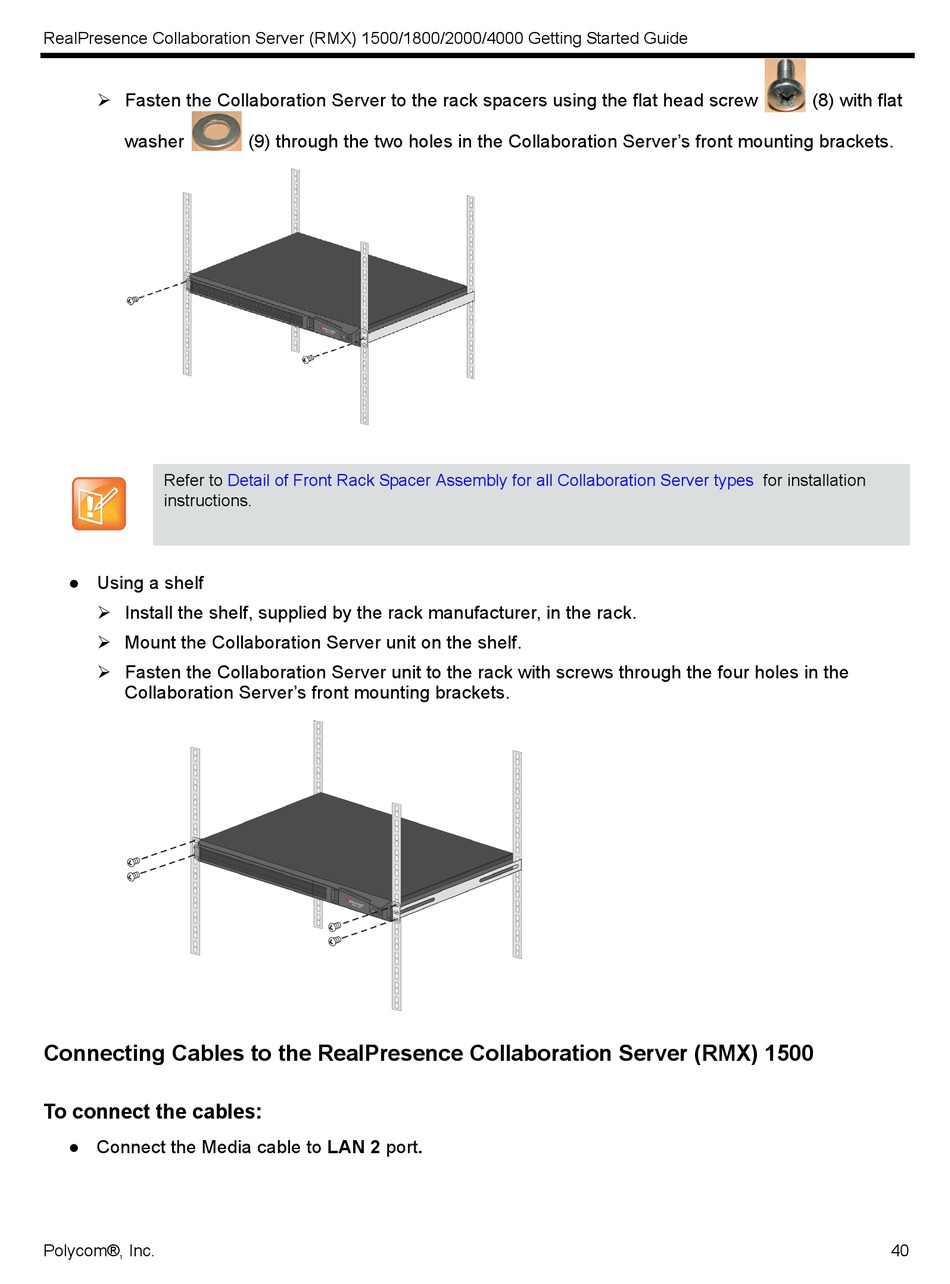

 Fasten the Collaboration Server to the rack spacers using the flat head screw
washer
Refer to
instructions.
● Using a shelf
 Install the shelf, supplied by the rack manufacturer, in the rack.
 Mount the Collaboration Server unit on the shelf.
 Fasten the Collaboration Server unit to the rack with screws through the four holes in the
Collaboration Server's front mounting brackets.

Connecting Cables to the RealPresence Collaboration Server (RMX) 1500

To connect the cables:
● Connect the Media cable to LAN 2 port.
Polycom®, Inc.
(9) through the two holes in the Collaboration Server's front mounting brackets.
Detail of Front Rack Spacer Assembly for all Collaboration Server types
(8) with flat
for installation
40
