Polycom RealPresence Collaboration Server (RMX) 1500 Hardware Guide
Connecting the RealPresence Collaboration Server (RMX) 1500 to AC
Power
•
•
•
•
•
1
2

Connecting Cables to the RealPresence Collaboration Server (RMX) 1500

To connect the cables:
•
The LAN 1*, LAN 3, LAN 4 and Modem ports are not to be used and the plastic caps covering those
ports should not be removed.
* With Multiple networks and LAN redundancy configurations, LAN 1 port is used. For more
information, see RealPresence® Collaboration Server (RMX) 1500/2000/4000 Administrator's
Guide , "LAN Redundancy" on page
When an NTP Server is used for the RMX time, the Shelf Management cable must be connected to
the shelf port.
1-12
Do not connect the green or green-yellow wire to the system single-point ground screw.
Only the AC Power cable supplied by Polycom should be used.
The size of the protective earthing conductor should be a minimum of 10AWG.
The outlet intended for connecting the power cord must be protected with an external
overcurrent protection device either in building or in the rack with the rating not higher than
20Amp.
Do not use an extension cord with the cable.

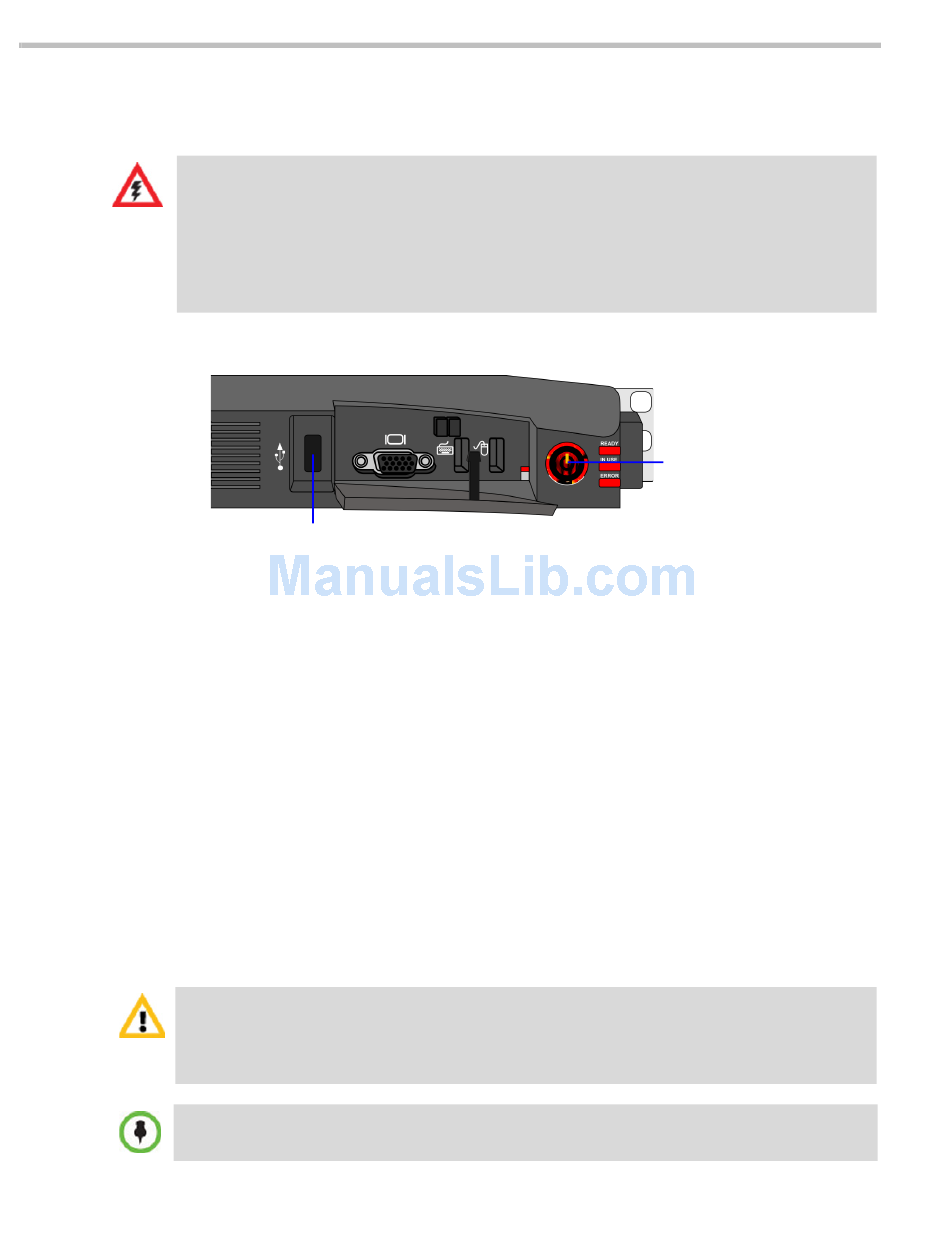

Make sure that the power (push) button is switched OFF on the RMX 1500.
USB Slot
Insert the power cable into the power connector on the rear panel of the RMX 1500.
For the RTM-IP 1500 module:
— Connect the Media cable to LAN 2 port.
— Optional. Connect the LAN cable to LAN 1. This port is used for Media
Redundancy or for Multiple Network Configuration. For more information, see
RealPresence Collaboration Server (RMX) 1500/2000/4000 Administrators Guide, "LAN
Redundancy" on page
— Connect the LAN network cable to the MNGB (Management Network) port. This
port is used for Signaling Redundancy or for Multiple Network Configuration.
— Optional. Connect the LAN signaling cable to the MNG (Signaling) port. This port
is used for Signaling and Management Redundancy. For more information, see
RealPresence Collaboration Server (RMX) 1500/2000/4000 Administrators Guide, "LAN
Redundancy" on page
— Optional. Connect the Shelf Management cable to the Shelf port.
16-37 "Multiple Network Services" on page 16-53.
and
16-37 "Multiple Network Services" on page 16-53.
and
16-37 and "Multiple Network Services" on page 16-53.
ON/OFF
button
