Mixing Sequence

Mixing Sequence
7.3.9. 7.3.9. Mixing Sequence Mixing Sequence

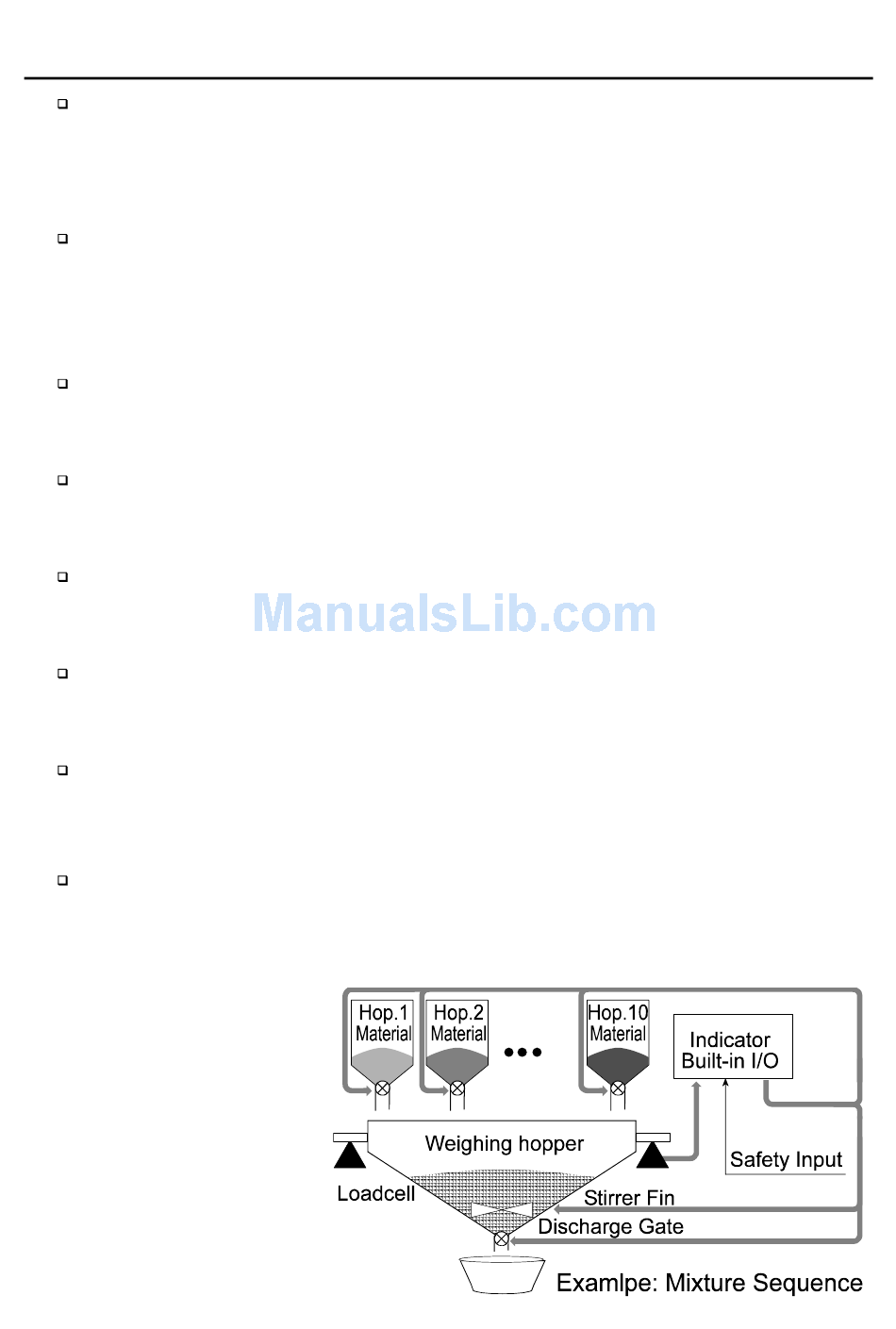

The mixing sequence is used to mix or stir material. The signal is output from the I/O
terminal set to mixing. The timing of batch finish, discharge finish and recipe finish
can be selected.
Concerning Parameters of the Function
Using the mixing sequence
[0utf-nn] [12]
Mixing material at batch finish
[5q f-14]
Mixing material after discharge
[5q f-15]
Mixing material at recipe finish
[5q f-17]
Storing the time of mixing
[5q f-47]
Safety check during mixing
[5q f-74]
Advise
Safety check during mixing
When the specified input terminals at [5q f-74] are all ON, it supposes that the
sequence is safe and is continued. If any terminal is OFF, an error code is output and
sequence is stopped.
Mixing
nn: terminal number of the I/O.
[Function] - [Function setting] - [Control I/O] - [Output]
Relay output (OP-02), parallel I/O (OP-05) can be used.
[Function] - [Function setting] - [Sequence] - [Control] - [Batch finish
action]
[Function] - [Function setting] - [Sequence] - [Control] - [Discharge finish
action]
[Function] - [Function setting] - [Sequence] - [Control] - [Recipe finish
action]
[Function] - [Function setting] - [Sequence] - [Timer] - [Mixing time output
on]
[Function] - [Function setting] - [Sequence] - [Safety] - [Mixing safety
check]
