AND Multi Function Weighing Indicator AD-4402 Instruction Manual page 53

Displayed value
Recipe code, Input
Material code, Output
Recipe start command, Input
Zero (automatic)
Tare (automatic)
Tare clear (automatic)
Material start signal (automatic)
Full flow, Output
Medium flow, Output
Dribble flow, Output
5qf-37
Eval delay timer
Stable, Output
Batch finish, Output
Over, OK, Under, Output
Recipe finish, Output
Discharge start, In
Discharge, Output
Discharge finish, Output

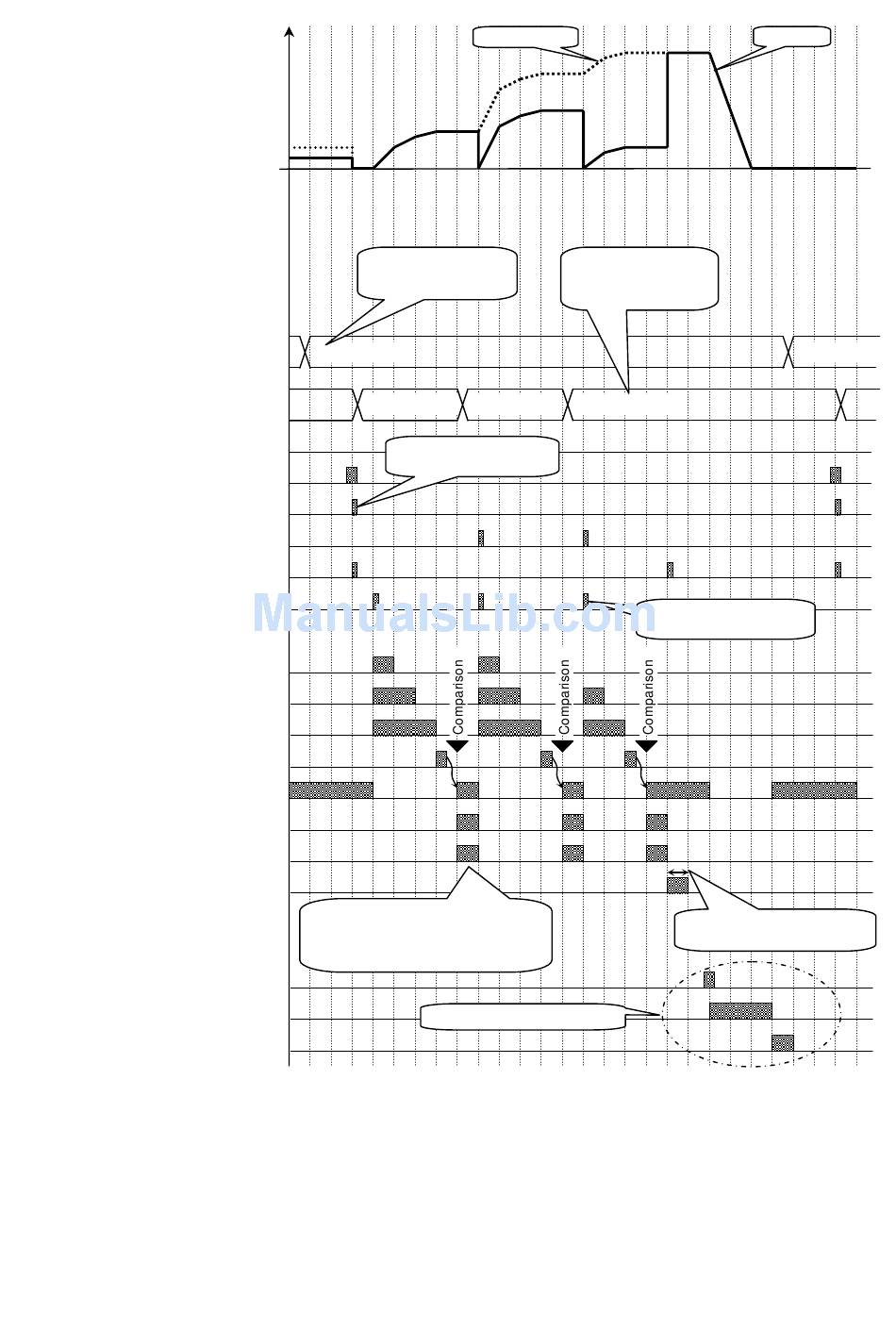

Drawing: Recipe Sequence
AD-4402
0
The active recipe code
is only read at each
start. And keep it.
Recipe code 1
Material code1 Material code2
Zero before the recipe
start, if necessary
When over or under weight occurs,
sequence stops and an error code
SQ.ERR2
is displayed. Restart to
continue this.
Discharge sequence example
Page 51
Gross weight
The material code can
not be edited during the
recipe mode.
Material code3
In semi-automatic mode,
make the start signal.
Net weight
Recipe code 2
5qf-45
Recipe finish output on
