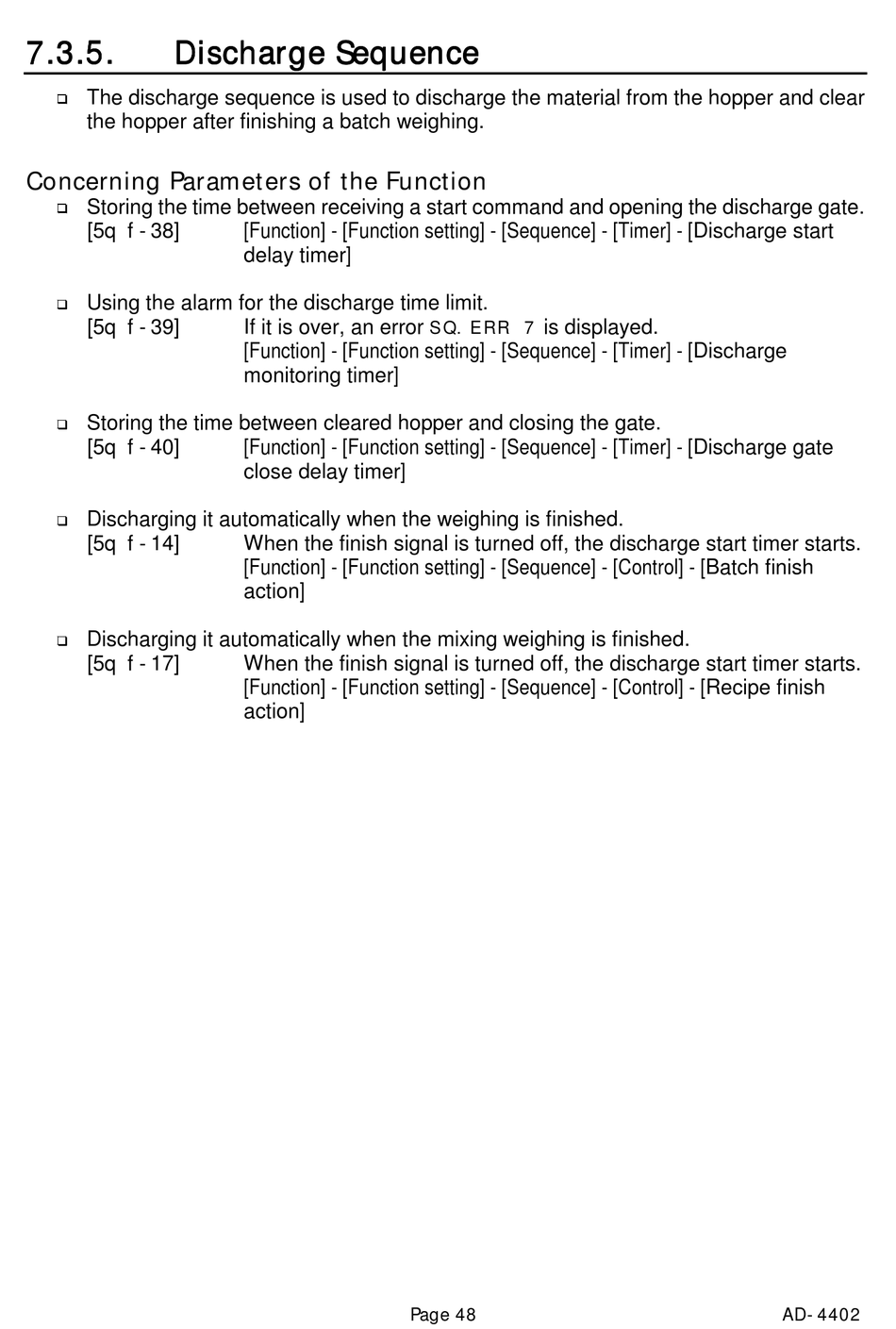

7.3.5. 7.3.5. Discharge Discharge S S S S equence
7.3.5. 7.3.5. Discharge Discharge
The discharge sequence is used to discharge the material from the hopper and clear
the hopper after finishing a batch weighing.
Concerning Parameters of the Function
Storing the time between receiving a start command and opening the discharge gate.
[5q f-38]
Using the alarm for the discharge time limit.
[5q f-39]
Storing the time between cleared hopper and closing the gate.
[5q f-40]
Discharging it automatically when the weighing is finished.
[5q f-14]
Discharging it automatically when the mixing weighing is finished.
[5q f-17]
equence
equence equence
[Function] - [Function setting] - [Sequence] - [Timer] - [Discharge start
delay timer]
If it is over, an error
[Function] - [Function setting] - [Sequence] - [Timer] - [Discharge
monitoring timer]
[Function] - [Function setting] - [Sequence] - [Timer] - [Discharge gate
close delay timer]
When the finish signal is turned off, the discharge start timer starts.
[Function] - [Function setting] - [Sequence] - [Control] - [Batch finish
action]
When the finish signal is turned off, the discharge start timer starts.
[Function] - [Function setting] - [Sequence] - [Control] - [Recipe finish
action]
Page 48
SQ.ERR 7
is displayed.
AD-4402
