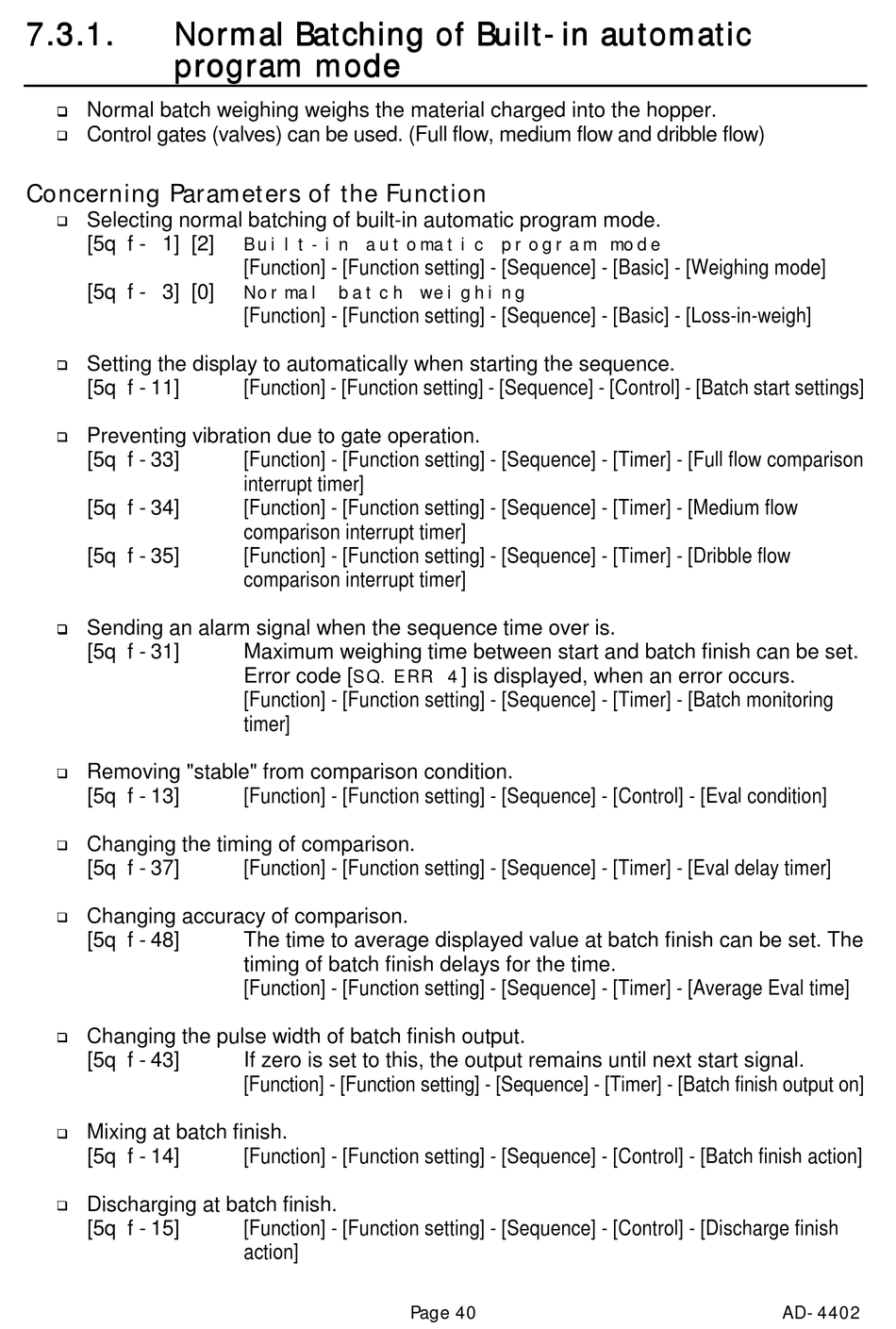

Normal batch weighing weighs the material charged into the hopper.
Control gates (valves) can be used. (Full flow, medium flow and dribble flow)
Concerning Parameters of the Function
Selecting normal batching of built-in automatic program mode.
[5q f- 1] [2]
[5q f- 3] [0]
Setting the display to automatically when starting the sequence.
[5q f-11]
Preventing vibration due to gate operation.
[5q f-33]
[5q f-34]
[5q f-35]
Sending an alarm signal when the sequence time over is.
[5q f-31]
Removing "stable" from comparison condition.
[5q f-13]
Changing the timing of comparison.
[5q f-37]
Changing accuracy of comparison.
[5q f-48]
Changing the pulse width of batch finish output.
[5q f-43]
Mixing at batch finish.
[5q f-14]
Discharging at batch finish.
[5q f-15]
ormal B B B B atching of Built ormal ormal atching of Built atching of Built- - - - in automatic atching of Built
Built-in automatic program mode
[Function] - [Function setting] - [Sequence] - [Basic] - [Weighing mode]
Normal batch weighing
[Function] - [Function setting] - [Sequence] - [Basic] - [Loss-in-weigh]
[Function] - [Function setting] - [Sequence] - [Control] - [Batch start settings]
[Function] - [Function setting] - [Sequence] - [Timer] - [Full flow comparison
interrupt timer]
[Function] - [Function setting] - [Sequence] - [Timer] - [Medium flow
comparison interrupt timer]
[Function] - [Function setting] - [Sequence] - [Timer] - [Dribble flow
comparison interrupt timer]
Maximum weighing time between start and batch finish can be set.
SQ.ERR 4
Error code [
[Function] - [Function setting] - [Sequence] - [Timer] - [Batch monitoring
timer]
[Function] - [Function setting] - [Sequence] - [Control] - [Eval condition]
[Function] - [Function setting] - [Sequence] - [Timer] - [Eval delay timer]
The time to average displayed value at batch finish can be set. The
timing of batch finish delays for the time.
[Function] - [Function setting] - [Sequence] - [Timer] - [Average Eval time]
If zero is set to this, the output remains until next start signal.
[Function] - [Function setting] - [Sequence] - [Timer] - [Batch finish output on]
[Function] - [Function setting] - [Sequence] - [Control] - [Batch finish action]
[Function] - [Function setting] - [Sequence] - [Control] - [Discharge finish
action]
in automatic in automatic in automatic
] is displayed, when an error occurs.
