Symbols

Symbols Symbols Symbols
Main display
Sub display
Unit indicator
Status indicator
Graphic status
indicator
STABLE
GROSS
NET

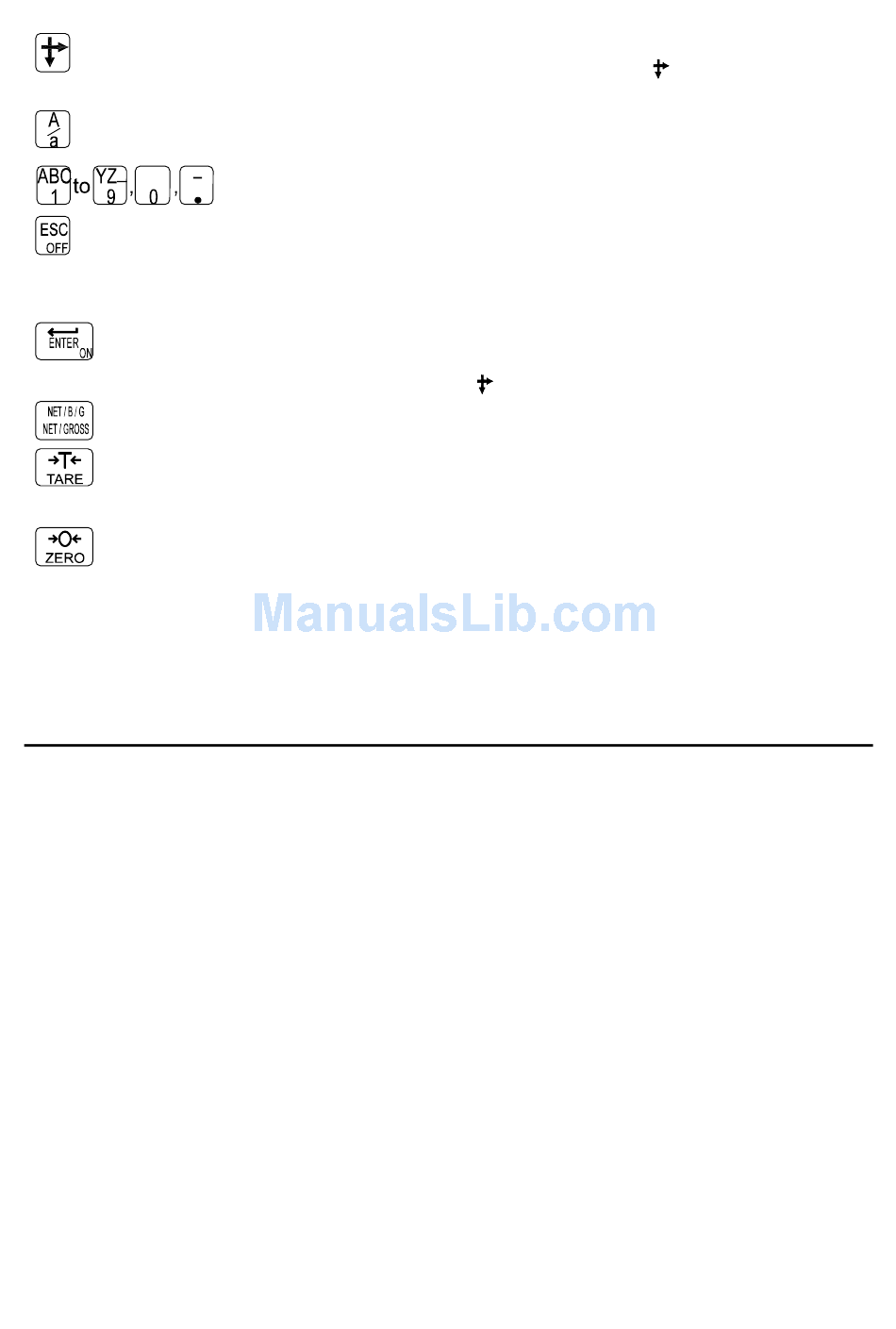

The key to move the cursor or scroll the function number.
Press and hold the SHIFT key and press the
code number.
The key to select alphabetical keys, upper keys, lower keys or
numerical keys.
Alphanumeric keys.
The escape key. Pressing and holding the key more than three seconds
in normal weighing mode, the display is turned off (standby mode).
The ESC key is used to undo the last key action and to return to the
last mode.
The ENTER key for parameter settings.
The key to turn on the display.
Pressing this key and the
The key to select net or gross
The tare key. The key is used to display the net value after that tare
weight is subtracted from the gross weighing.
The zero key. To zero the current weighing display.
Gross or net is displayed.
Code numbers, operation guidance, graph, setpoint and others are
displayed selectively.
The indicator that is displayed when the weighing unit is selected in
the calibration mode. Refer to section "5. Calibration".
The current weighing status is displayed.
The current weighing situation is displayed with symbols.
The classification number is displayed, when an error occurred or
an alarm is indicated.
With this sign illuminated, the current weighing display is stable.
The main display is the gross data, when this sign is illuminated.
The main display is the net data, when this sign is illuminated.
key, the key works as the menu key.
