AND Multi Function Weighing Indicator AD-4402 Instruction Manual page 45

Displayed value
- Final value + Optional preliminary
- Final value + Preliminary
- Final value + Free fall
- Final value
or -Target weight
Tare command, Input
Material code, Input
Start command, Input
5qf-32
Start delay timer
5qf-31
Batch monitoring timer
Full flow, Output
Medium flow, Output
Dribble flow, Output
5qf-33
Full flow comparison interrupt timer
5qf-34
Medium flow comparison interrupt timer
5qf-35
Dribble flow comparison interrupt timer
5qf-37
Eval delay timer
Stable, Output
Batch finish, Output
Under, Output

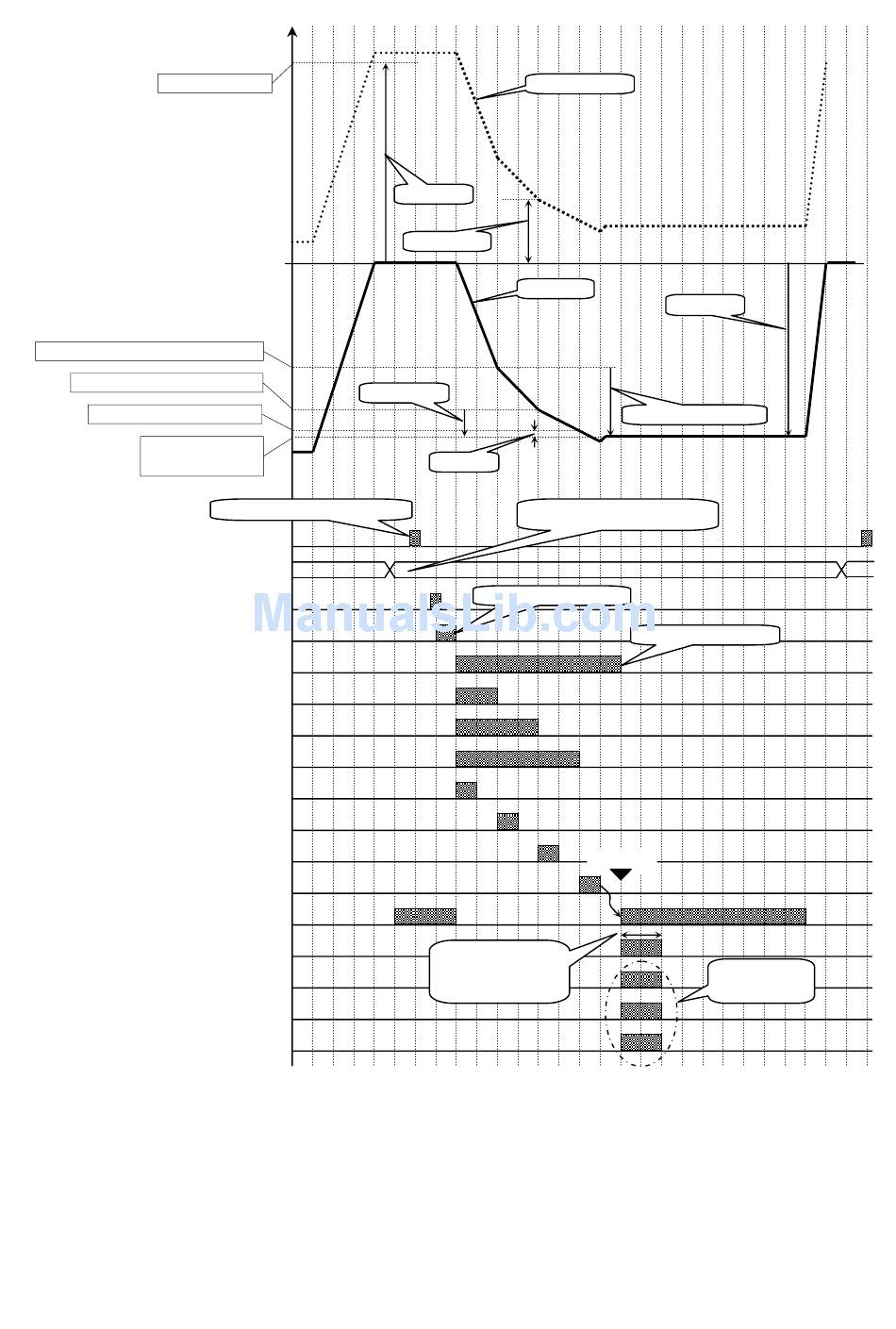

Drawing: Loss-in-weigh of Built-in automatic program mode
AD-4402
Full value
0
Preliminary
Enable automatic tare to use
Over, Output
OK, Output
Gross weight
Full
Zero band
Net weight
Free fall
The active code is only read at
each start. And keep it.
Time until supplying it
5qf-43
batch finish output
on
Page 43
Final value
Optional preliminary
Monitor to supply it
Compari s on
Select a mode
at 5qf-05
