Automatic Selection of Supplying Hopper

Automatic Selection of Supplying Hopper
7.3.7. 7.3.7. Automatic Selection of Supplying Hopper Automatic Selection of Supplying Hopper
When there are multiple supplying mats of materials, the indicator has to control
these gates. There are the following two method to control them.

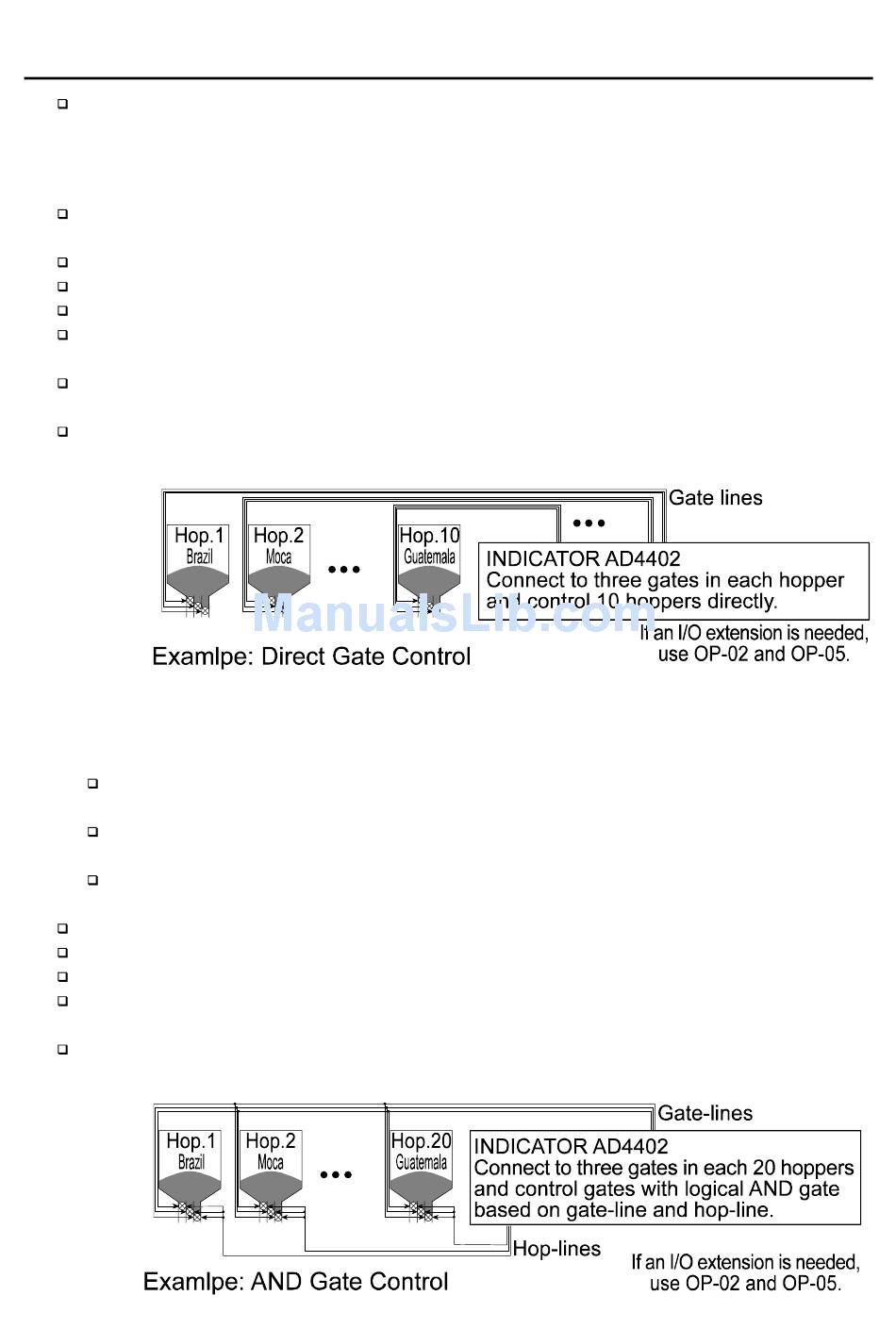

Case 1: Direct Gate Control
The method that connects the gate control lines of supplying hoppers to the I/O
terminals of the indicator and the indicator directly controls them.
Three kinds of gates can be used in a supplying hopper. (Full, medium, dribble gate)
Number of supplying hopper:
Preset material codes and recipe codes can be used.
The selection of the supplying hopper is [MatEDIT] - [Material code] - [Material hopper].
The selection of the I/O terminals is [Function] - [Function setting] - [Control I/O Function] - [Output].
Even if a code is recalled during the sequence, the code does not work until the
sequence finishes.
When the number of I/O terminals is not enough, use relay output option (OP-02) and
parallel I/O (OP-05).
Case 2: Gate Control with Supplying Hopper Selection
The method:
Make gate-lines that gates of a kind, in each supplying hopper are connected to
the I/O terminal of the indicator in parallel.
Make hop-lines that lines identified by each hopper are connected to the I/O
terminal.
The indicator can control any gate which the gate-line and hop-line are active.
(logical AND gate)
Three kinds of gates can be used in a supplying hopper. (Full, medium, dribble gate)
Number of supplying hopper:
Preset material codes and recipe codes can be used.
The selection of the supplying hopper is [MatEDIT] - [Material code] - [Material hopper].
The selection of the I/O terminals is [Function] - [Function setting] - [Control I/O function] - [Output].
When number of I/O terminals is not enough, use relay output options (OP-02) and
parallel I/O (OP-05).
Ten hoppers can be used.
Twenty hoppers can be used.
Page 52 AD-4402
