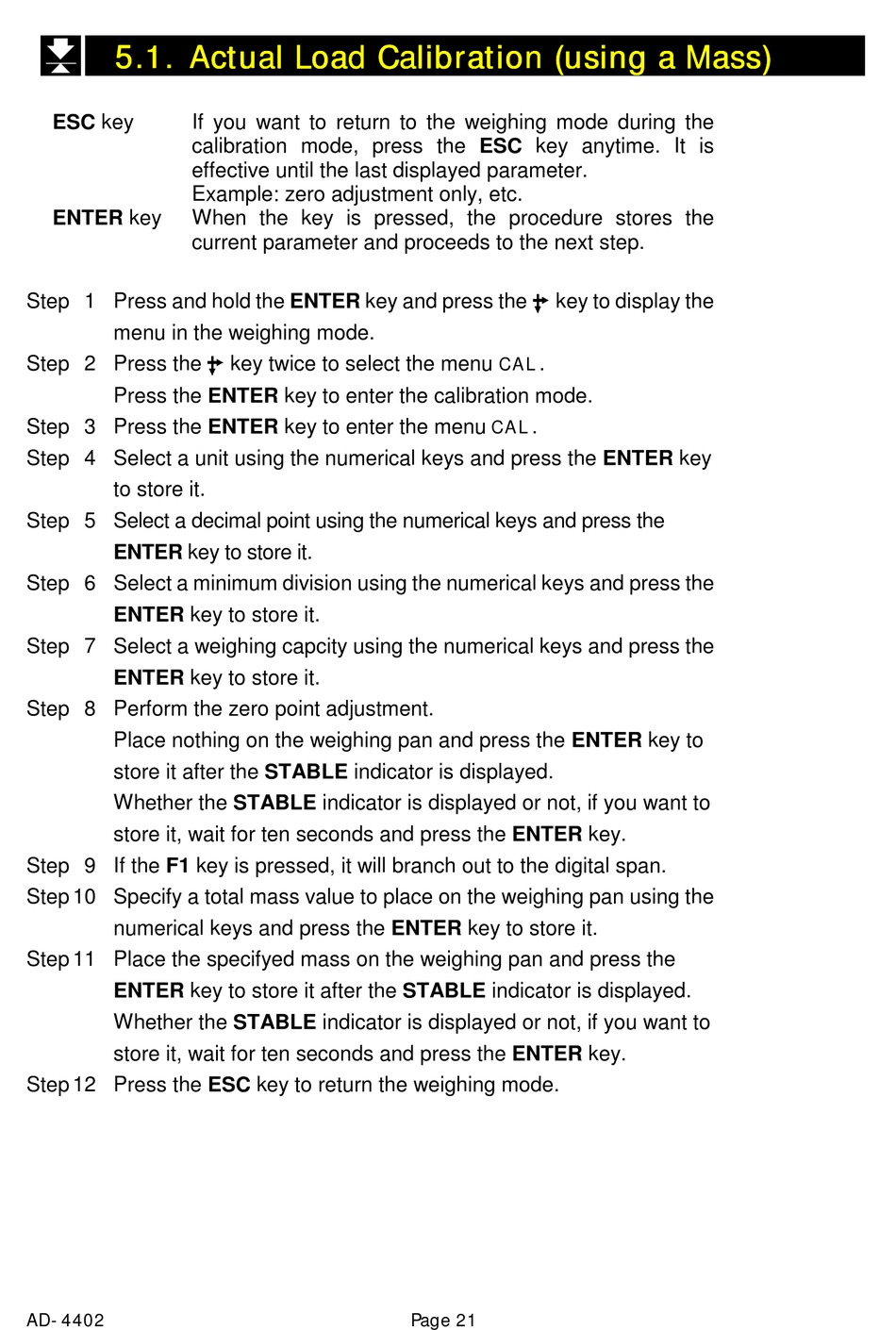

5.1. Actual Load Calibration (using 5.1. Actual Load Calibration (using a a a a Mass)
5.1. 5.1. Actual Load Calibration (using Actual Load Calibration (using
ESC key If you want to return to the weighing mode during the
calibration mode, press the ESC key anytime. It is
effective until the last displayed parameter.
Example: zero adjustment only, etc.
ENTER key When the key is pressed, the procedure stores the
current parameter and proceeds to the next step.
Step 1 Press and hold the ENTER key and press the
menu in the weighing mode.
Step 2 Press the
Press the ENTER key to enter the calibration mode.
Step 3 Press the ENTER key to enter the menu
Step 4 Select a unit using the numerical keys and press the ENTER key
to store it.
Step 5 Select a decimal point using the numerical keys and press the
ENTER key to store it.
Step 6 Select a minimum division using the numerical keys and press the
ENTER key to store it.
Step 7 Select a weighing capcity using the numerical keys and press the
ENTER key to store it.
Step 8 Perform the zero point adjustment.
Place nothing on the weighing pan and press the ENTER key to
store it after the STABLE indicator is displayed.
Whether the STABLE indicator is displayed or not, if you want to
store it, wait for ten seconds and press the ENTER key.
Step 9 If the F1 key is pressed, it will branch out to the digital span.
Step 10 Specify a total mass value to place on the weighing pan using the
numerical keys and press the ENTER key to store it.
Step 11 Place the specifyed mass on the weighing pan and press the
ENTER key to store it after the STABLE indicator is displayed.
Whether the STABLE indicator is displayed or not, if you want to
store it, wait for ten seconds and press the ENTER key.
Step 12 Press the ESC key to return the weighing mode.
AD-4402
key twice to select the menu
key to display the
CAL
.
CAL
.
Page 21
