Power Distribution Board (MSMT498 or MSMT499)
The power distribution board assembly contains the board, a metal support bracket, and
cables. If the power distribution board fails, the assembly is replaced as one unit.
u
Power Distribution Board MSMT498 is used for redundant power supplies.
u
Power Distribution Board MSMT499 is used for fixed power supply.
To replace the power distribution board assembly:

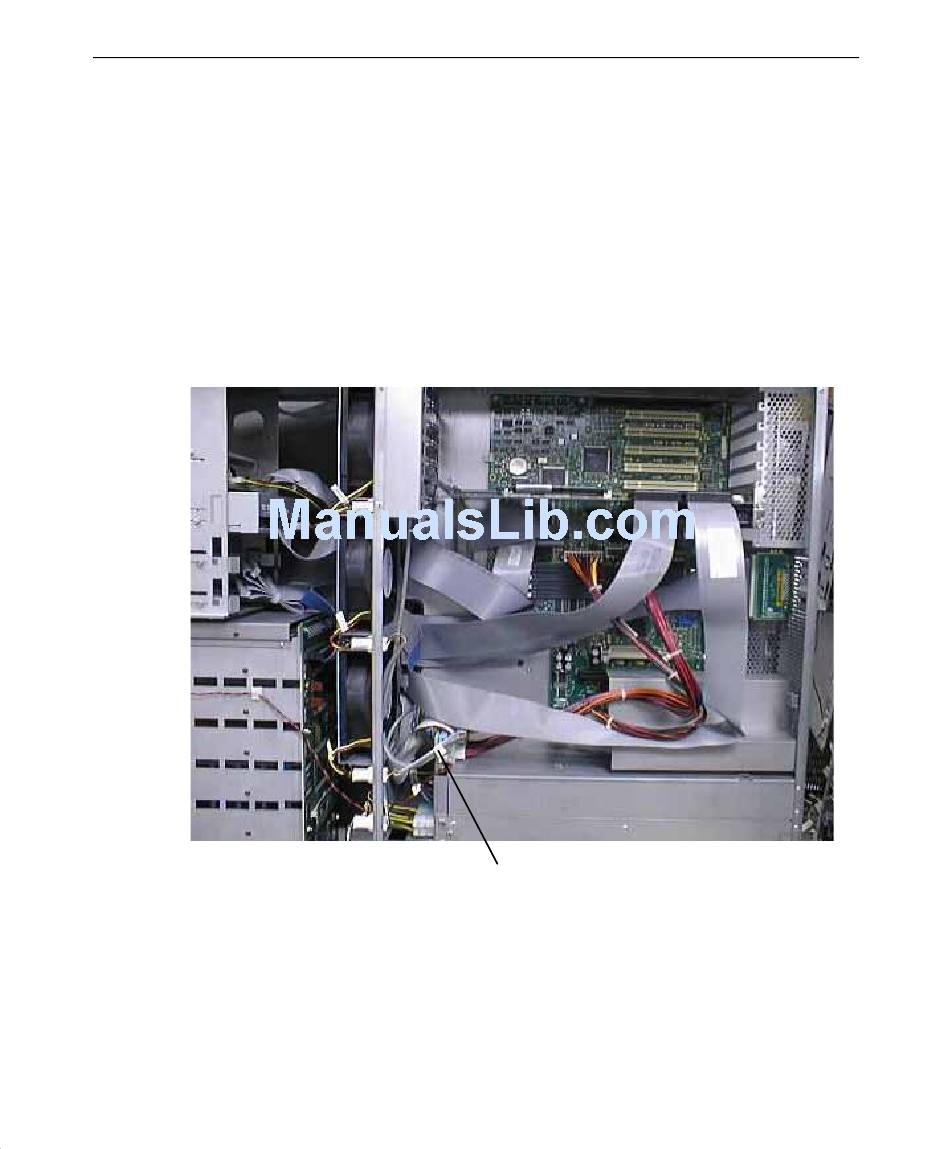

1. Remove the left and right side panels. The following figure shows the power
distribution board from the right side.
Power Distribution Board
