RAID Disk Drive Section (MESAN52)

The RAID disk drive section includes the disk drive cage, backplane, sensor boards and LED
boards. This assembly is always replaced as one unit.
To replace the RAID disk drive section:
1. Remove both side panels.
2. Remove all the drives from the disk drive section. Note the original slot location for
each drive. The drives should be reinstalled in the same slot locations from which they
were removed.
3. Disconnect the two SCSI cables from the top of the disk drive section.
4. Disconnect the four power cables attached to the disk drive section.

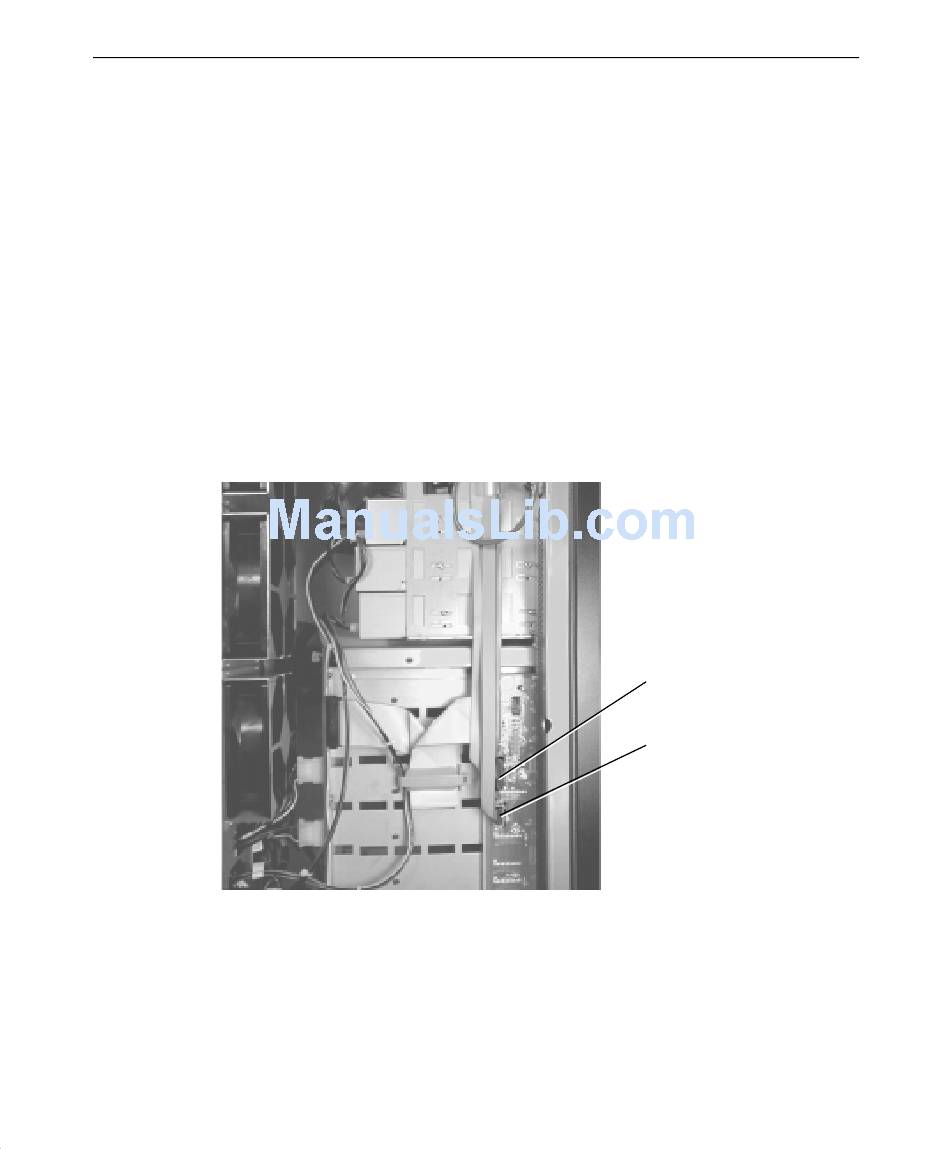

5. Disconnect the LCD and LED cables from the disk drive section on the left side of the
unit.
6. Remove and retain the screw from each corner of the RAID disk drive section.
LCD Cable
LED Cable
