7. Slide the system I/O baseboard assembly all the way to the rear until it is removed from
chassis.
CAUTION:
chassis.

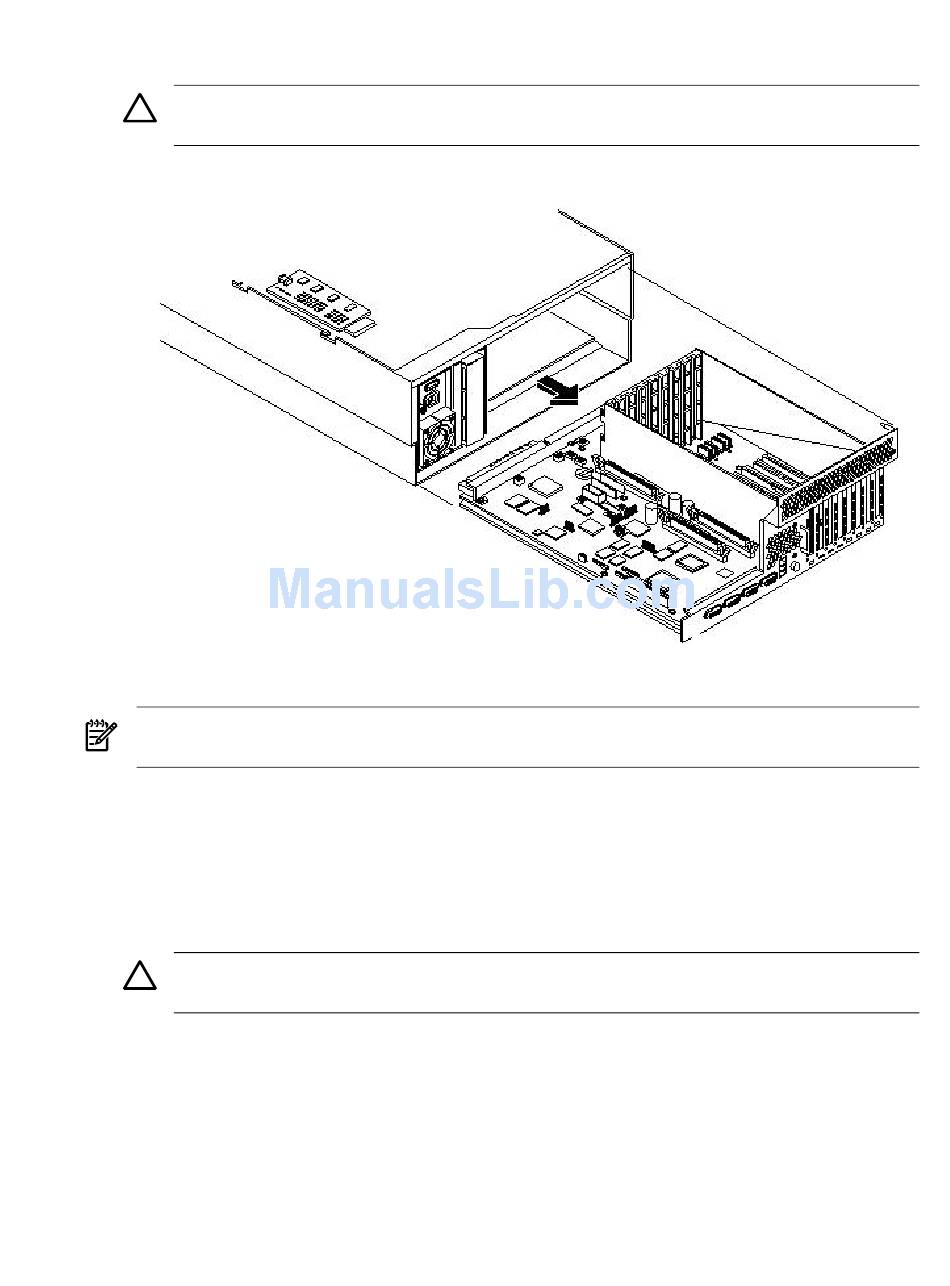

Figure 3-17 I/O Baseboard Assembly Removal

Replacing the I/O Baseboard Assembly

NOTE: The I/O baseboard assembly replacement procedure assumes that you are reinstalling
the assembly that was previously removed from a configured server.
To replace the I/O baseboard assembly, follow these steps:
1. Ensure that all fan modules are removed from the chassis before sliding in the I/O baseboard
assembly or the fans and the I/O baseboard can be damaged.
2. Align the I/O baseboard assembly rails with the chassis slots and slide the assembly into the
chassis until it stops against the midplane riser board socket. To engage the I/O baseboard
with the midplane riser board correctly, ensure the I/O baseboard locking lever is in the up
position.
CAUTION:
chassis.
3. With the I/O baseboard flush against the midplane riser board socket, push down firmly on
the locking lever until the I/O baseboard plugs all the way into the midplane riser board
socket and the locking lever clicks into place on the chassis wall
4. Replace the three chassis fan units. See
5. Plug all external cabling into the ports at the rear of the chassis.
6. Plug the internal SCSI cables into the HBA board in PCI slot 1.
7. Replace the top cover. See
The I/O baseboard assembly is large. Be careful when lifting it out of the server
The I/O baseboard assembly is large. Use care when sliding it into the server
"Replacing the Top Cover" (page
"Replacing a Hot-Swappable Fan Unit" (page
66).
Installing Additional Components
(Figure 3-16).
69).
71
