1.
If rack-mounted, slide the server out from the rack until it stops. See
Rack-Mounted Server" (page
2.
Remove the front bezel. See
3.
Using a Torx T15 driver, loosen the four captive thumbscrews that hold the front cover in
place.

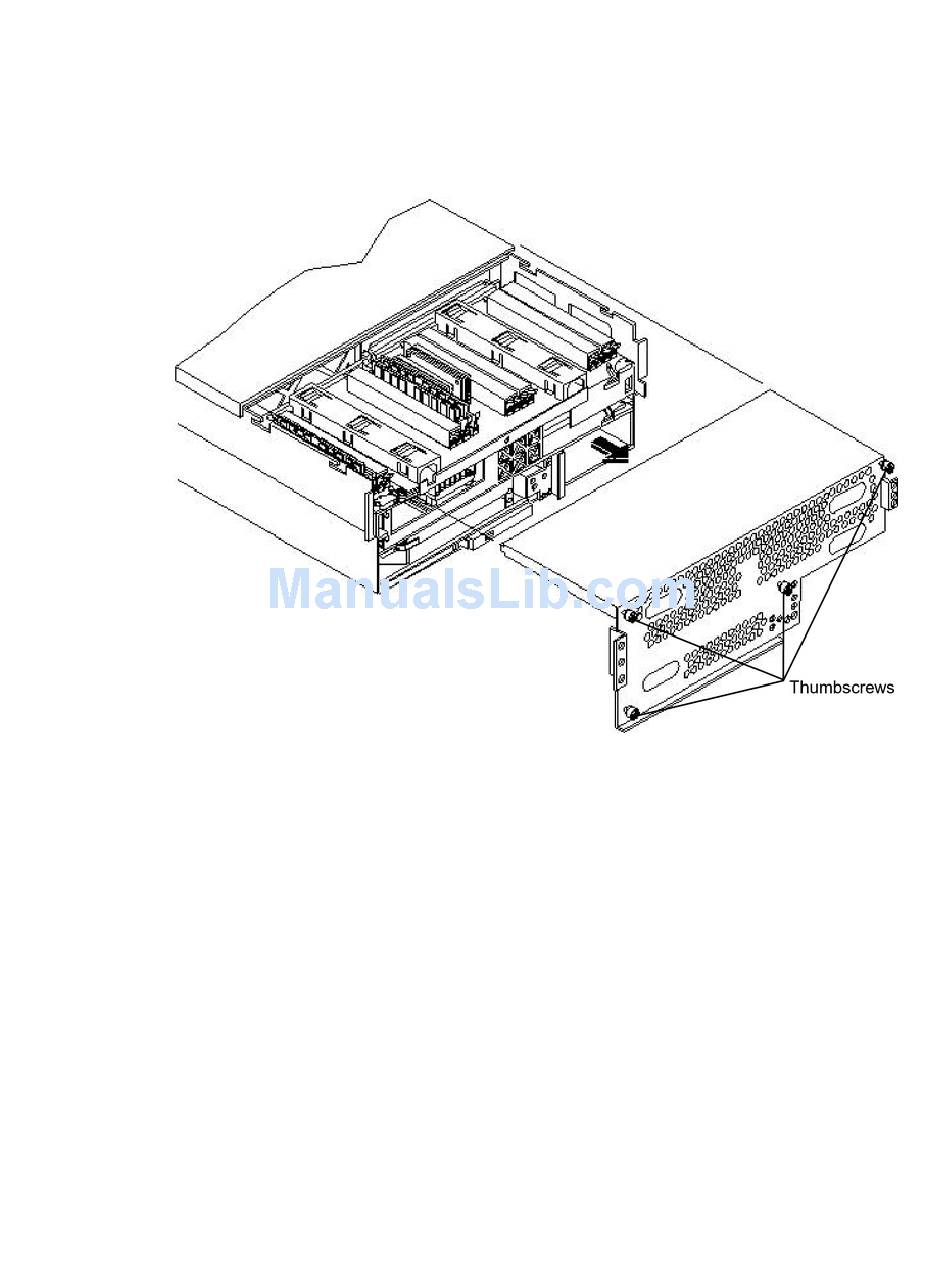

Figure 6-4 Removing and Replacing the Front Cover
4.
Raise the cover slightly, and pull the cover toward the front of the server to free the tabs
from the slots in the center of the chassis.
Replacing the Front Cover
To replace the front cover, follow these steps:
1.
Align the tabs at the rear of the front cover with the corresponding slots in the chassis. Fully
seat the tabs into the slots.
2.
Tighten the four thumbscrews securely.
3.
Replace the front bezel. See
Removing the Top Cover
To remove the top cover, follow these steps:
1.
If rack-mounted, slide the server out from the rack until it stops. See
Rack-Mounted Server" (page
2.
Loosen the two captive thumbscrews that hold the top cover in place.
3.
Pull the cover toward the rear of the server to free the tabs from the slots in the center of the
chassis and lift the cover straight up.
149).
"Removing the Front Bezel" (page
"Replacing the Front Bezel" (page
149).
"Accessing a
152).
152).
"Accessing a
(Figure
6-5)
