Gigabit Ethernet LAN Port

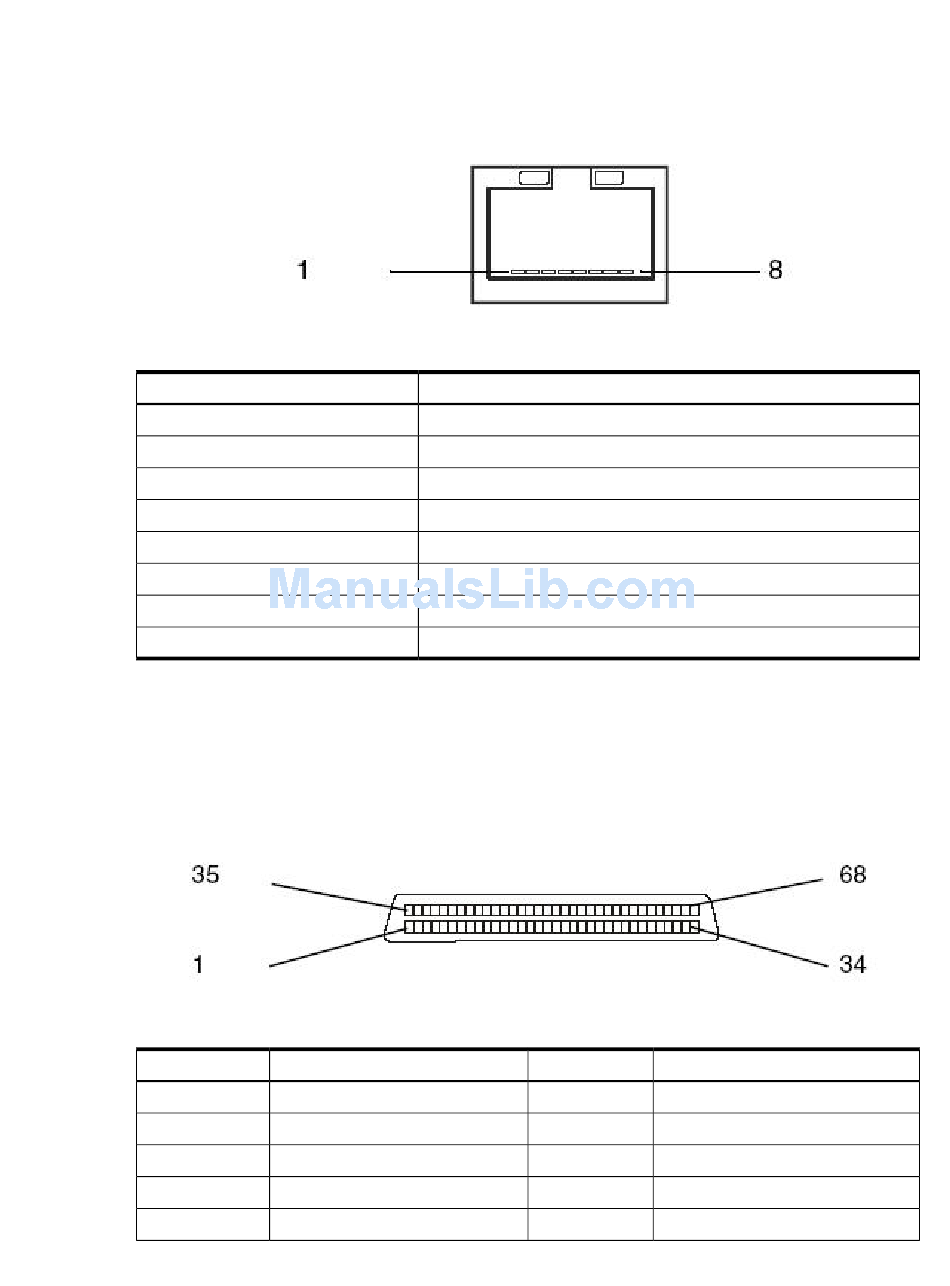

Figure 1-17 and
Figure 1-17 Gigabit Ethernet LAN Port
Table 1-12 Gigabit Ethernet LAN Port Pinouts
Pin Number
1
2
3
4
5
6
7
8

SCSI Port, Ultra 3, 68-Pin

Two Ultra 3, 68-pin SCSI connectors are located on the HBA located in PCI slot 1. The upper
connector supports SCSI channel A and the lower connector supports SCSI channel B.
Figure 1-18 and
Figure 1-18 SCSI Port, Ultra 3, 68-Pin
Table 1-13 SCSI Port Pinouts
Pin Number
1
2
3
4
5
Table 1-12 show the Gigabit Ethernet LAN port connector and pinouts.
Signal Description
RXP
RXN
TXP
Not used
Not used
TXN
Not used
Not used
Table 1-13 show the SCSI port connector and pinouts.
Signal Description
S1 (+DB 12)
S2 (+DB 13)
S3 (+DB 14)
S4 (+DB 15)
S5 (+DB P 1)
Pin Number Signal Description
35 S35 (–DB 12)
36 S36 (–DB 13)
37 S37 (–DB 14)
38 S38 (–DB 15)
39 S39 (–DB P 1)
Controls, Ports, and LEDs 35
