NOTE:
when the server is configured for simplex operation. The SCSI jumper cable is not installed
in duplex configurations.

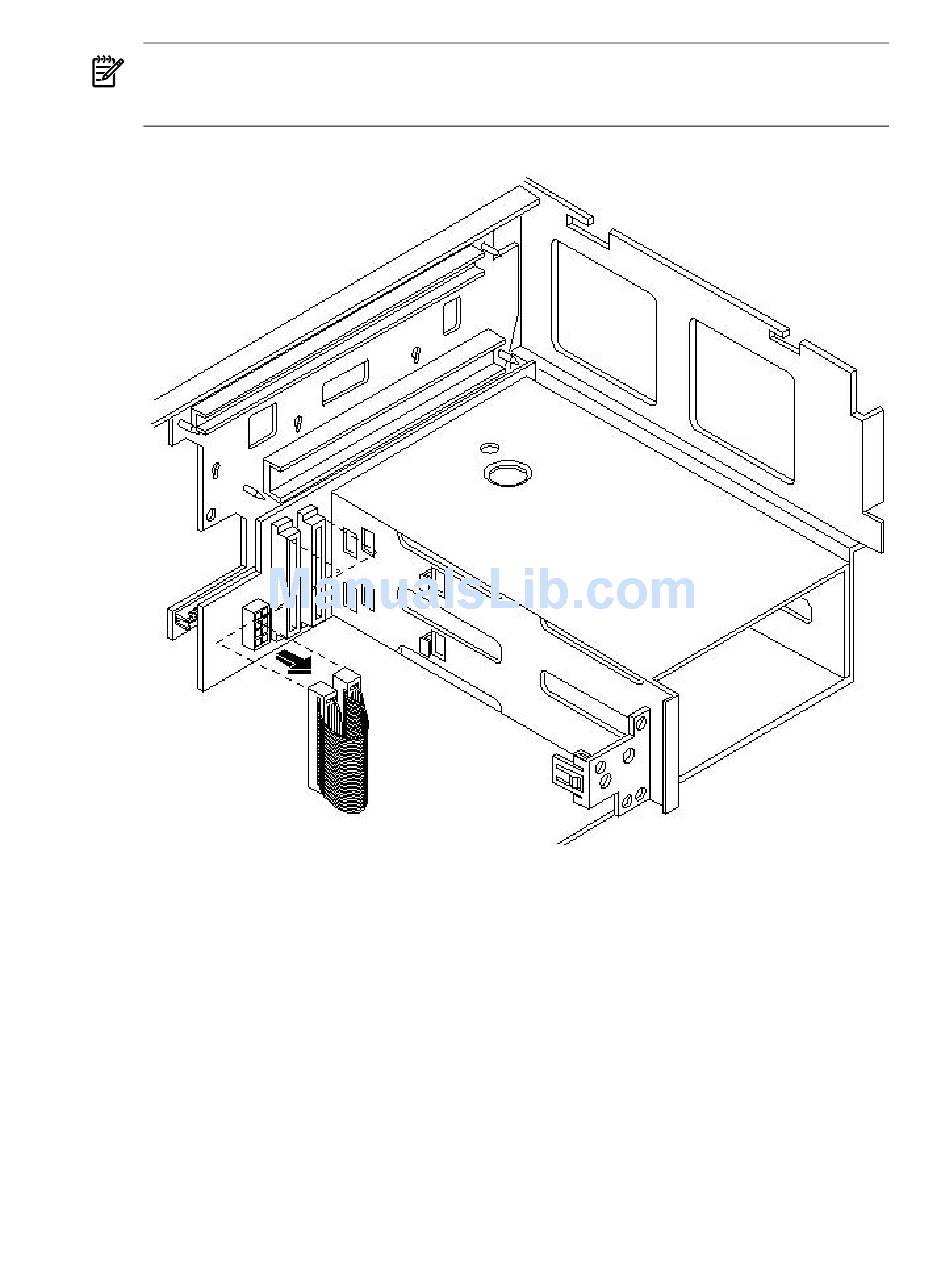

Figure 6-35 Remove the SCSI Backplane Jumper Cable
4.
Remove the disk drives. See
5.
To unlatch the SCSI backplane from the hard disk cage, turn the swivel latch on top of the
hard disk drive cage.
6.
Grasp the top edge of the SCSI backplane and pull up until it releases from the keyway slots
on the back of the disk drive cage.
198
Removing and Replacing Components
The SCSI jumper cable bridges the two SCSI connectors on the SCSI backplane
"Removing a Hot-Pluggable Disk Drive" (page
212).
