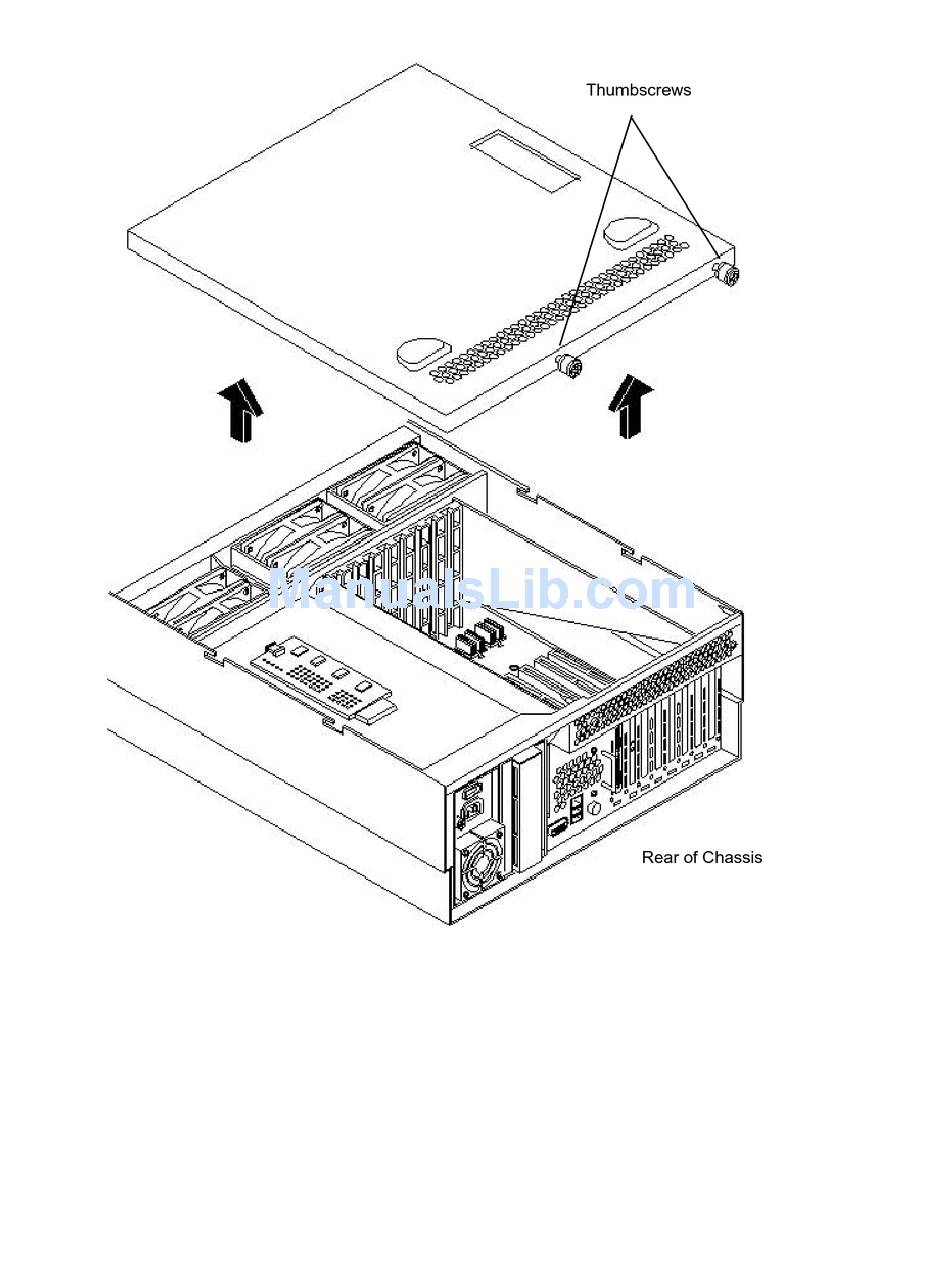

Figure 3-13 Removing and Replacing the Top Cover
Replacing the Top Cover
To replace the top cover, follow these steps:
1.
Align the tabs at the rear of the top cover with the corresponding slots in the chassis. Fully
seat the tabs into the slots and push forward until it seats.
2.
Tighten the two thumbscrews securely.
Hot-Swappable Chassis Fan Units
There are three hot-swappable chassis fan units in the server.
•
Fan units 0, 1, and 2 are in the center of the chassis, spanning the full chassis width.
•
Fan units 0 and 1 are interchangeable and are in the left and center positions.
66
Installing the System
