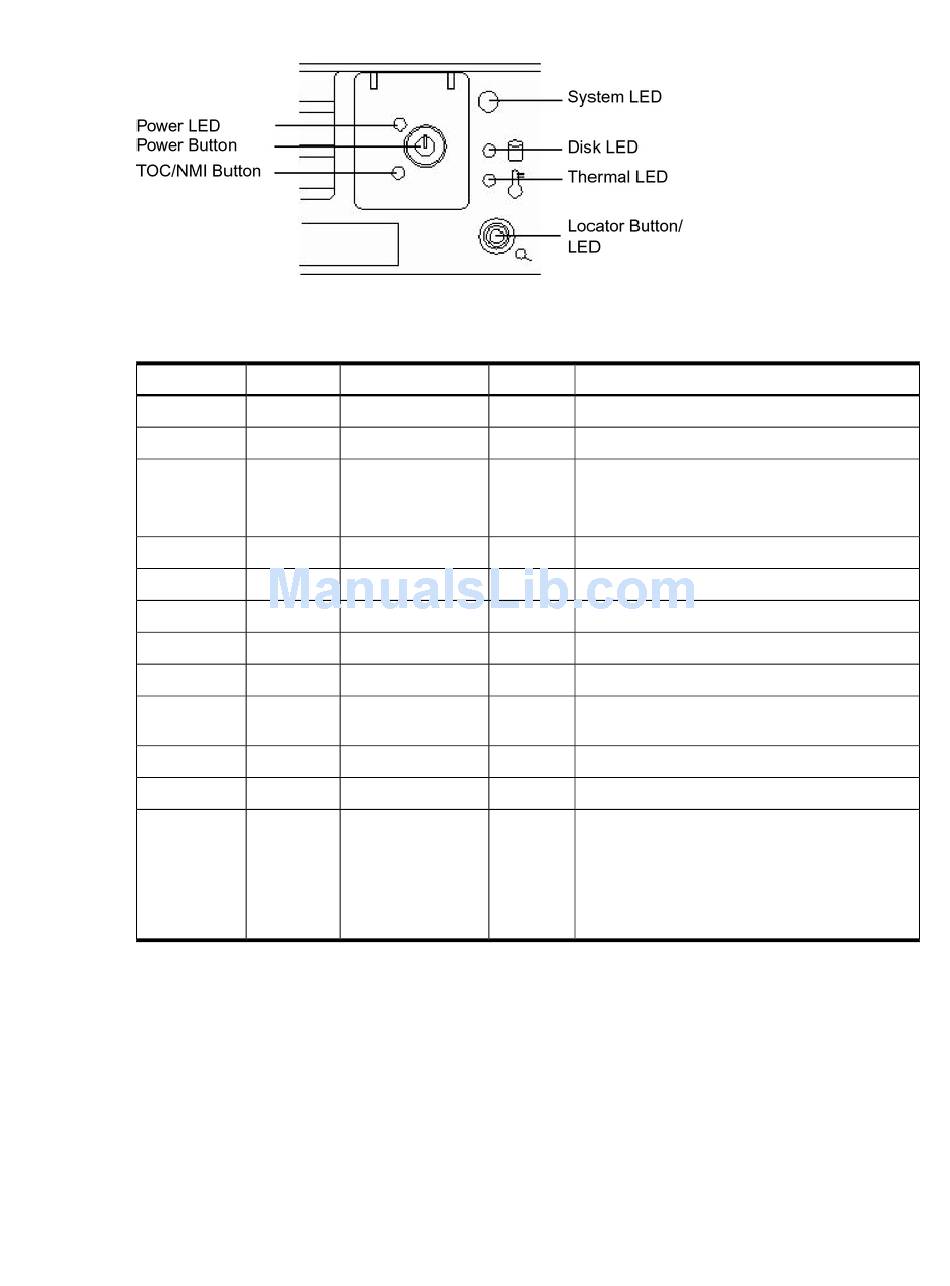

Figure 1-6 Control Panel LEDs and Buttons
Table 1-2 lists the control panel LED status and descriptions.
Table 1-2 Control Panel LED Definitions
LED or Button State
System LED Running
System LED Booting
System LED Attention
System LED Fault
System LED Off
Power LED On
Power LED On
Power LED Off
Disk LED
Thermal LED OK
Thermal LED Warning
Locator Button
or LED
Table 1-3 lists the button LED definitions.
Flash Rate Color
Steady Green
Flashing at 0.5 Hz Green
Flashing at 1 Hz Yellow
Flashing at 2 Hz Red
Off N/A
Steady Green
Flashing at 1 Hz Yellow
Off Off
Flashing at rate of Green
disk activity
Steady Green
Flashing at 1 Hz Yellow
Flashing at 1 Hz Blue
Description
System normal, OS up and running
OS booting or at BCH
• Warning-system needs attention
• Redundancy lost
• Component failure pending
Hard fault. system halted
System off
Power normal
Housekeeping voltage present
Power off
Disk activity
Thermal OK
Thermal warning
• System locator LED can be remotely or locally
activated or deactivated
• There is also a locator button on the rear panel
of the server
• Pressing either button turns both LEDs on or
off and enables or disables the locator function
