3.
Select an empty slot and pull up on the MRL located on the OLX divider approximately 75
degrees.
CAUTION:
Do not pull up on the MRL of a powered on, occupied slot or your system will
crash.

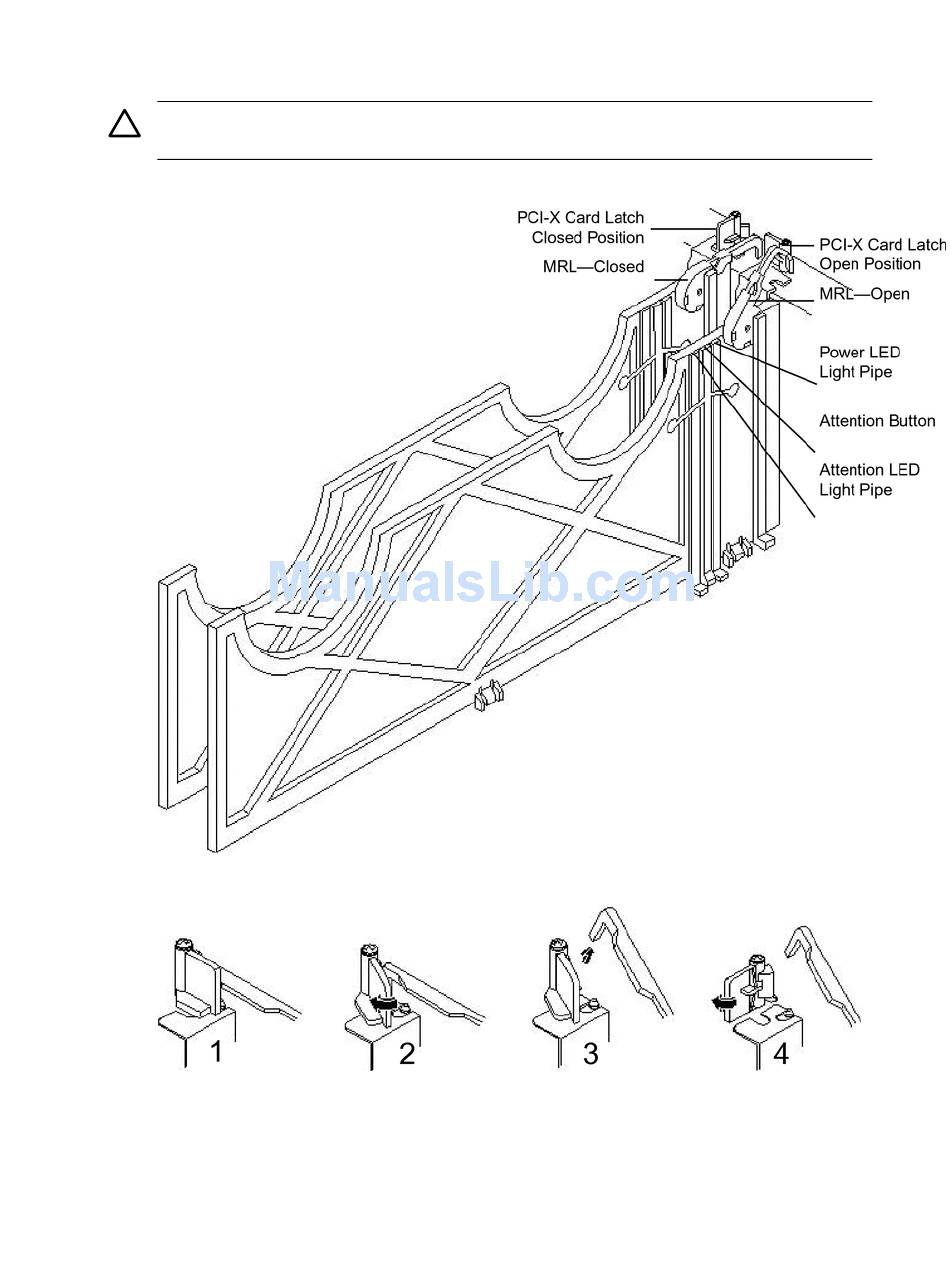

Figure 6-27 PCI/PCI-X OLX Divider Layout
Figure 6-28 PCI-X Card Latch Opening Sequence
186
Removing and Replacing Components
