4.
Remove the SCSI duplex board:
a.
Pull the SCSI duplex board forward to disconnect the backplane connector.
b.
Release it from the disk drive cage.

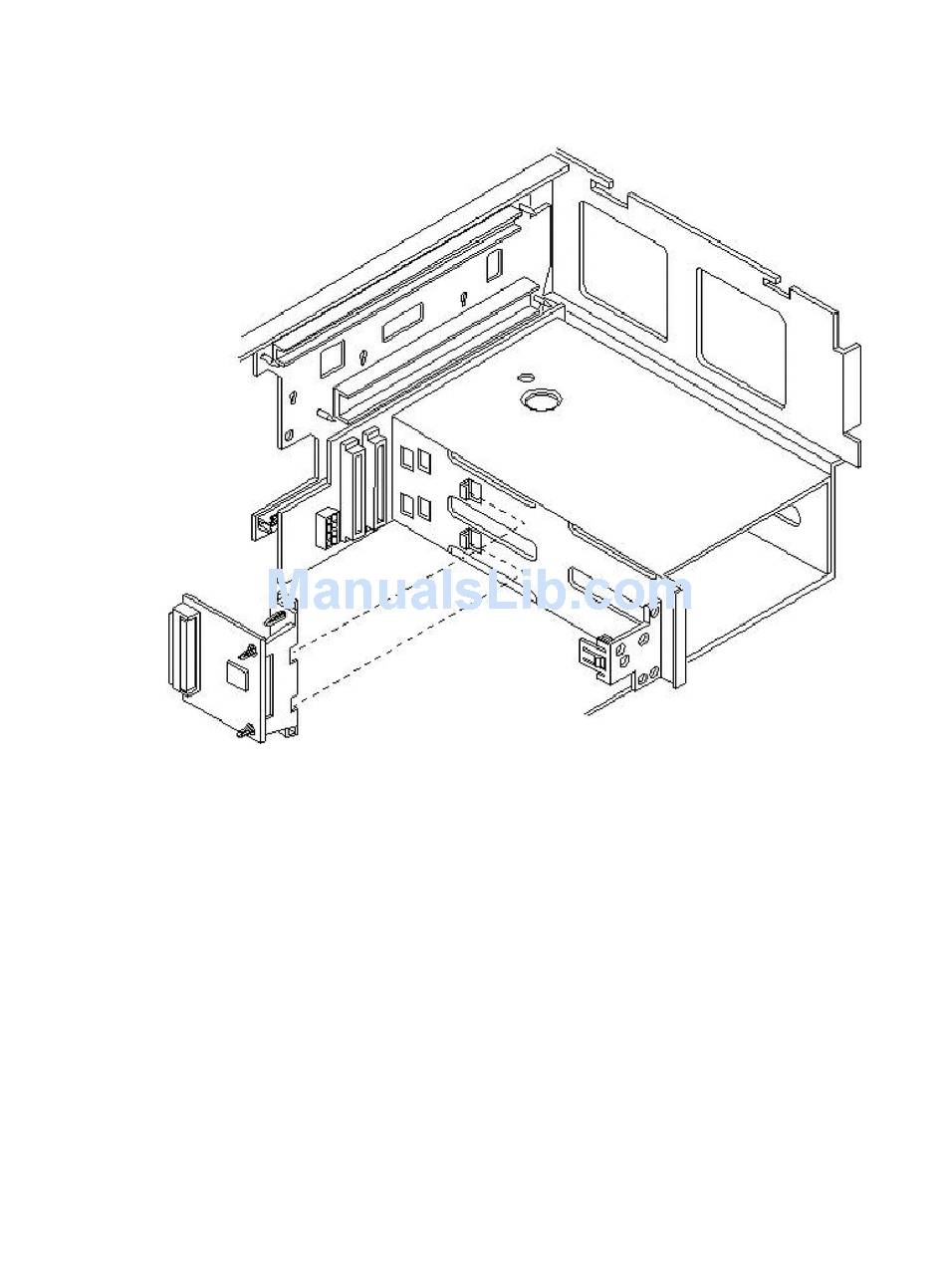

Figure 6-41 Removing the Duplex Board
