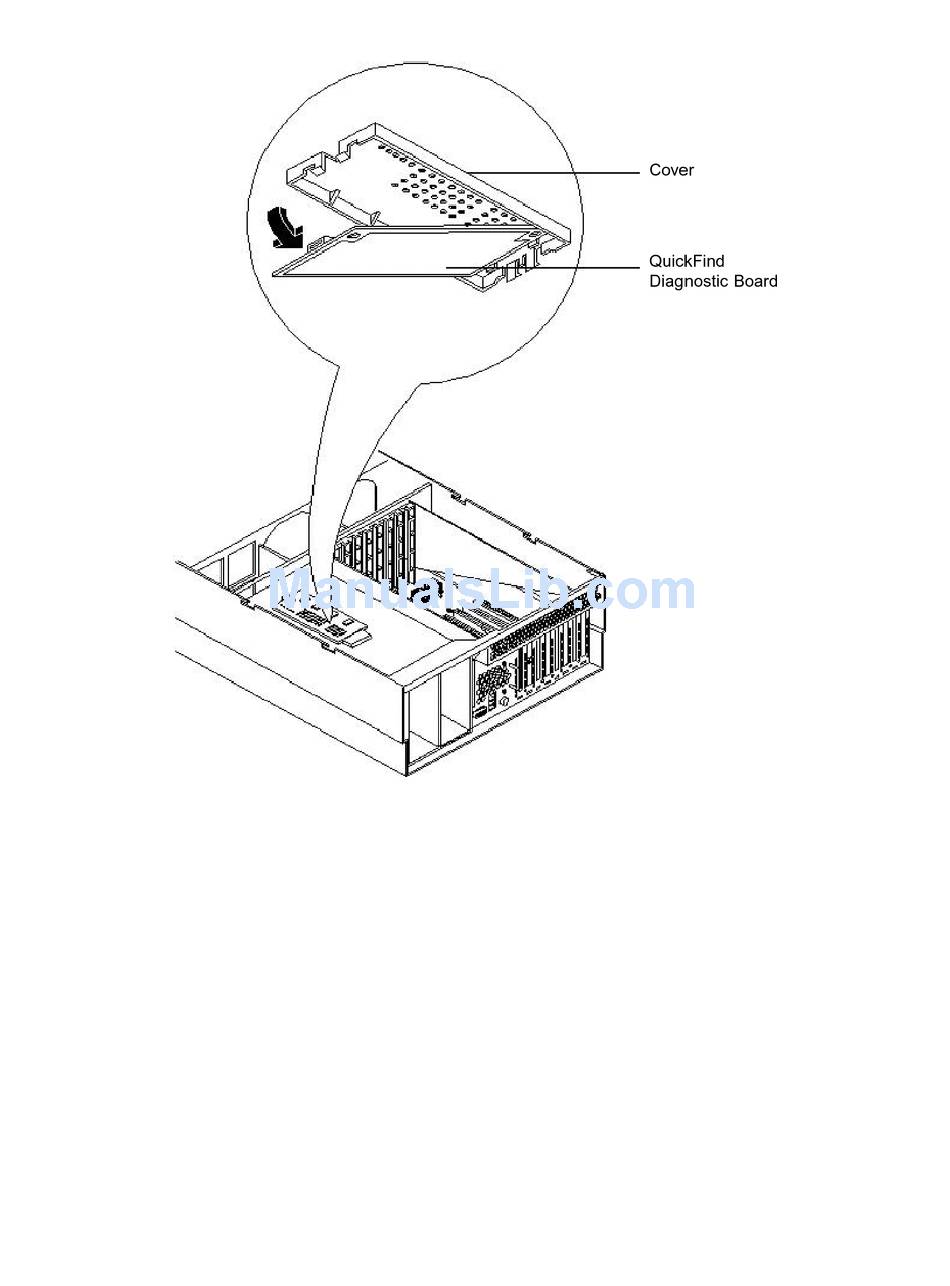

Figure 6-57 QuickFind Diagnostic Board Removal and Replacement
4.
Turn this assembly upside down and remove the QuickFind diagnostic board from the
cover.
5.
Unplug the cable from the connector on the QuickFind diagnostic board and remove the
board from the chassis.
Replacing the QuickFind Diagnostic Board
To replace the QuickFind diagnostic board, follow these steps:
1.
Gently plug the cable into the QuickFind diagnostic board connector.
2.
Replace the QuickFind diagnostic board into the cover by snapping it into place.
3.
Turn the assembly over and snap into place on top of the power supply cage.
4.
Replace the top cover. See
"Replacing the Top Cover" (page
154).
QuickFind Diagnostic Board
229
