C
H
A
P
T
E
LOCATION
Main Menu
Configure VLAN
Edit/Delete a Port-based VLAN
460T Ch5 - Sec 2-VLANs-Monitoring-Tools.p65
R
5
Using Local Management

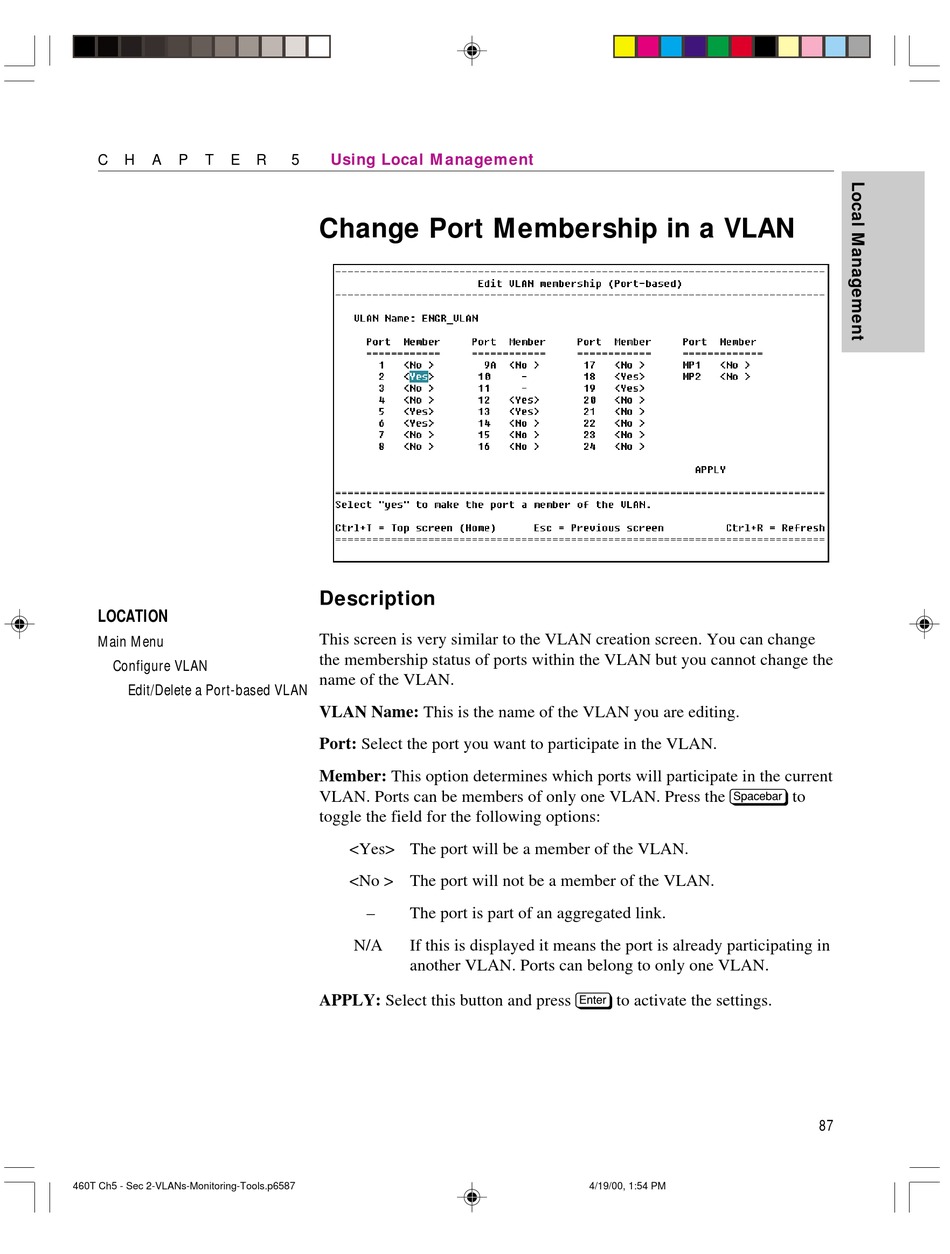

Change Port Membership in a VLAN
Description
This screen is very similar to the VLAN creation screen. You can change
the membership status of ports within the VLAN but you cannot change the
name of the VLAN.
VLAN Name: This is the name of the VLAN you are editing.
Port: Select the port you want to participate in the VLAN.
Member: This option determines which ports will participate in the current
VLAN. Ports can be members of only one VLAN. Press the z to
toggle the field for the following options:
<Yes> The port will be a member of the VLAN.
<No > The port will not be a member of the VLAN.
–
The port is part of an aggregated link.
N/A
If this is displayed it means the port is already participating in
another VLAN. Ports can belong to only one VLAN.
APPLY: Select this button and press e to activate the settings.
87
4/19/00, 1:54 PM
87
