C H A P T E
LOCATION
Main Menu
Configure Device
Forwarding and Filtering
Ethernet Multicast Filtering
Multicast Filters Per Port
72
460T Ch5 - Sec 1-Nav & Config.p65
R 5 Intel Express 460T Standalone Switch Users Guide

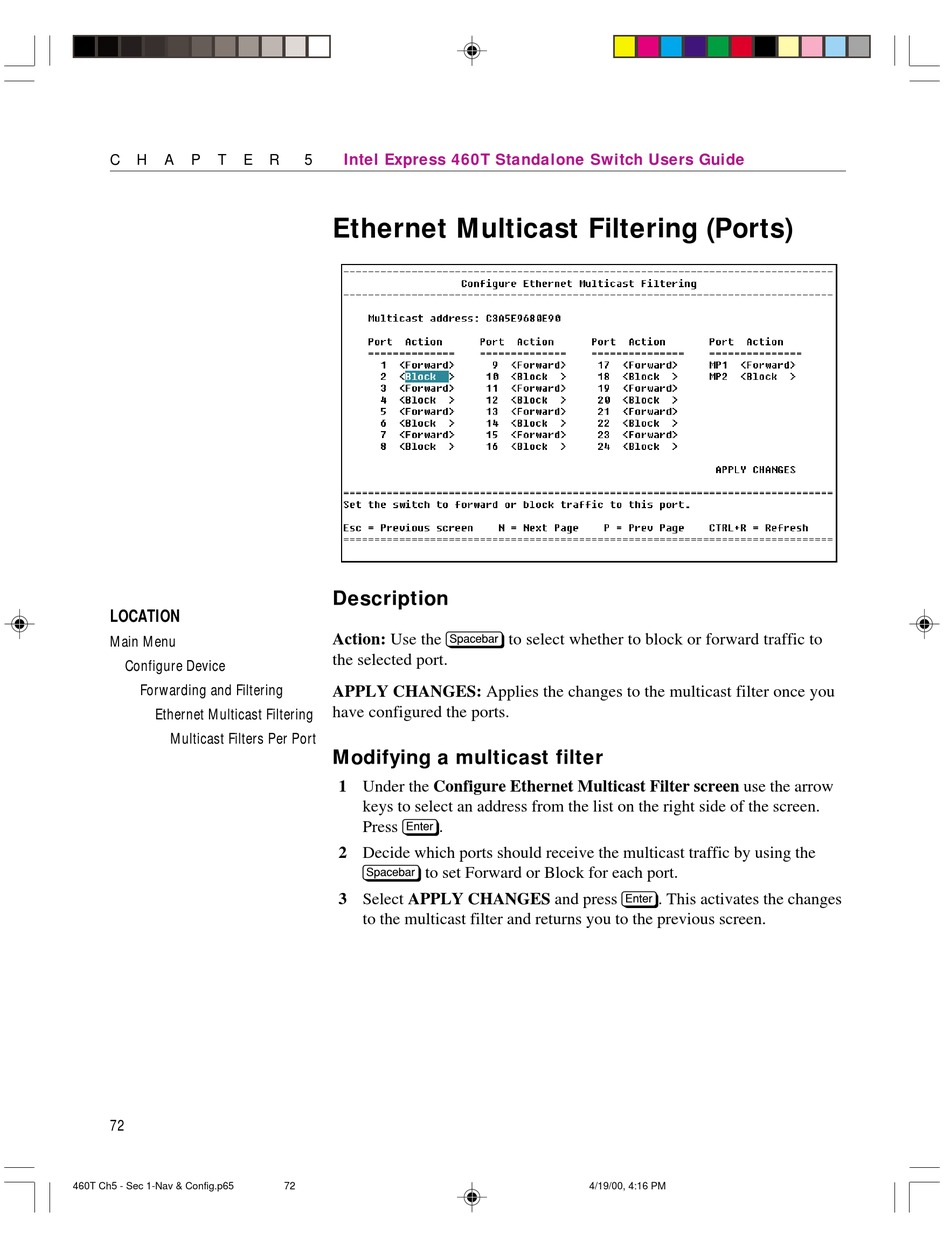

Ethernet Multicast Filtering (Ports)

Description
Action: Use the z to select whether to block or forward traffic to
the selected port.
APPLY CHANGES: Applies the changes to the multicast filter once you
have configured the ports.
Modifying a multicast filter
1 Under the Configure Ethernet Multicast Filter screen use the arrow
keys to select an address from the list on the right side of the screen.
Press e.
2 Decide which ports should receive the multicast traffic by using the
z to set Forward or Block for each port.
3 Select APPLY CHANGES and press e. This activates the changes
to the multicast filter and returns you to the previous screen.
