136 Logging, monitoring and updates

Interpreting LEDs

Interpreting LEDs

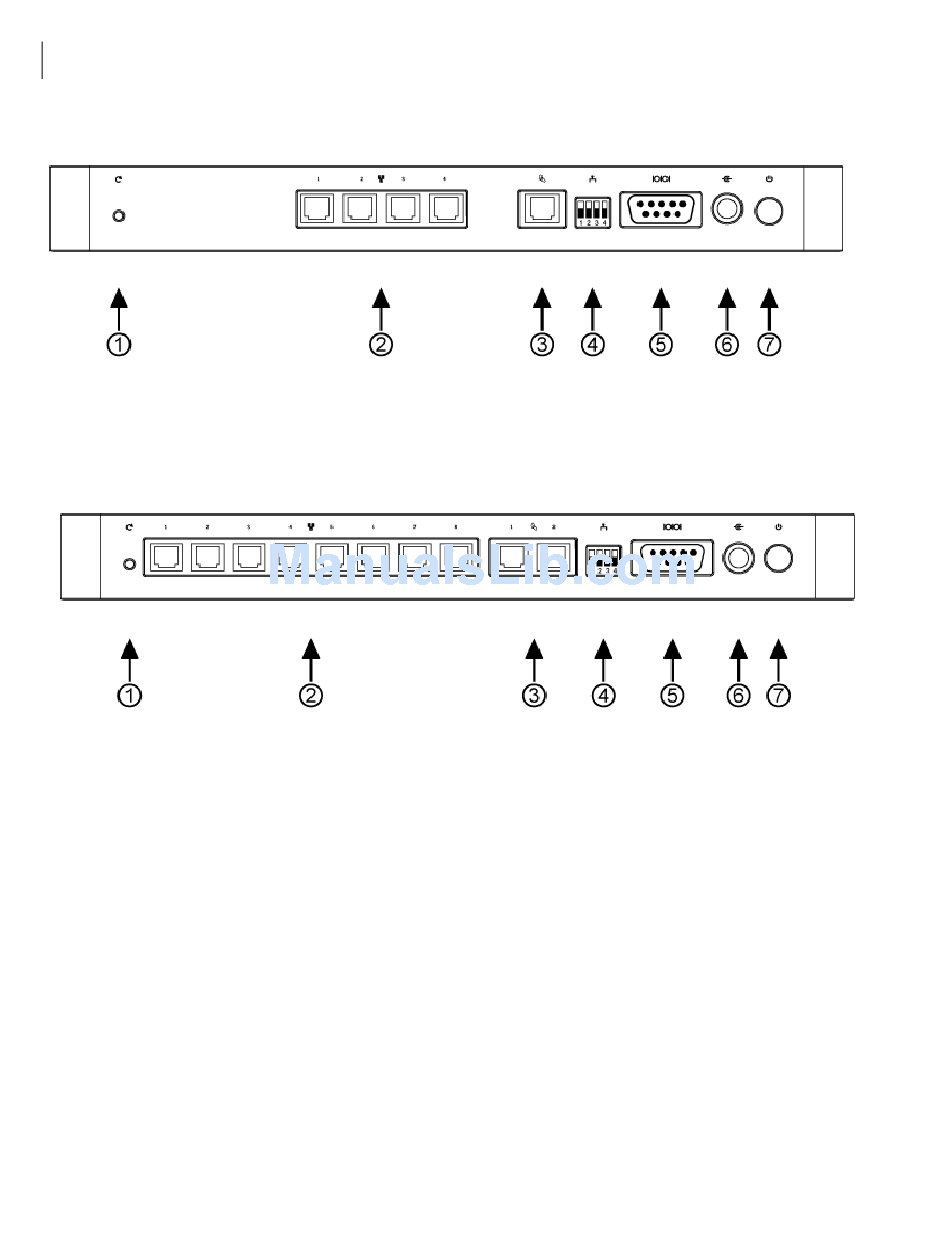

Figure 9-4 Model 320 rear panel
Figure 9-5 shows the rear panel of models 360 and 360R. This graphic is for
reference; the full description ofeach feature is available in the Symantec
Gateway Security 300 Series Installation Guide.
Figure 9-5 Model 360 and 360R rear panel
To perform a basic reset
On the rear panel of the appliance, quickly press the reset button (1).
◆
To perform a reset to the default configuration
On the rear panel of the appliance, press the reset button (1) and hold it for
◆
five seconds.
To perform a reset to the reserved application
1 On the rear panel of the appliance, turn DIP switch 4 (4) to on (up).
2
Quickly press the reset button (1).
The LEDs on the front of each appliance indicate the status of the appliance.
There are six LEDs; four for the appliance, and two for wireless. The wireless
