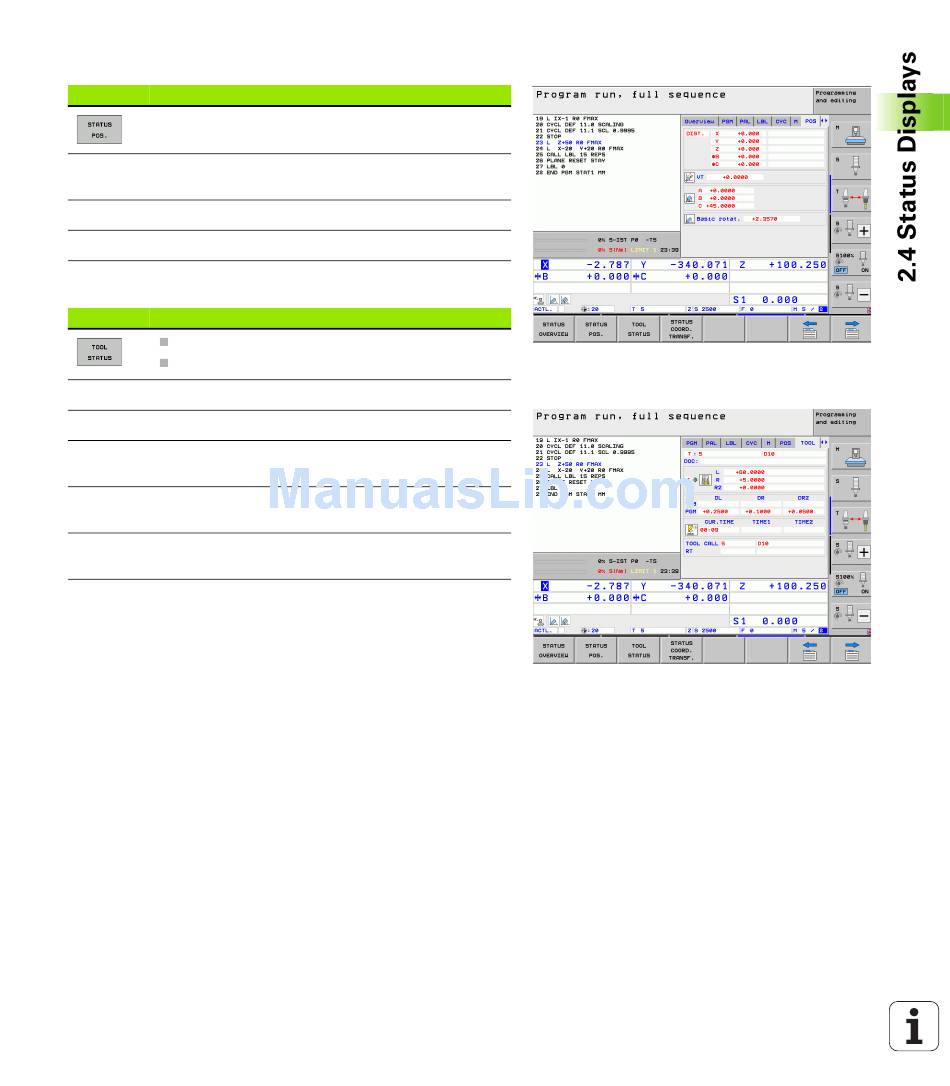

Positions and coordinates (POS tab)
Soft key
Meaning
Type of position display, e.g. actual position
Value traversed in virtual axis direction VT (only with
"global program settings" software option)
Tilt angle of the working plane
Angle of a basic rotation
Information on tools (TOOL tab)
Soft key
Meaning
T: Tool number and name
RT: Number and name of a replacement tool
Tool axis
Tool lengths and radii
Oversizes (delta values) from the tool table (TAB) and
the TOOL CALL (PGM)
Tool life, maximum tool life (TIME 1) and maximum
tool life for TOOL CALL (TIME 2)
Display of the active tool and the (next) replacement
tool
HEIDENHAIN iTNC 530
75
