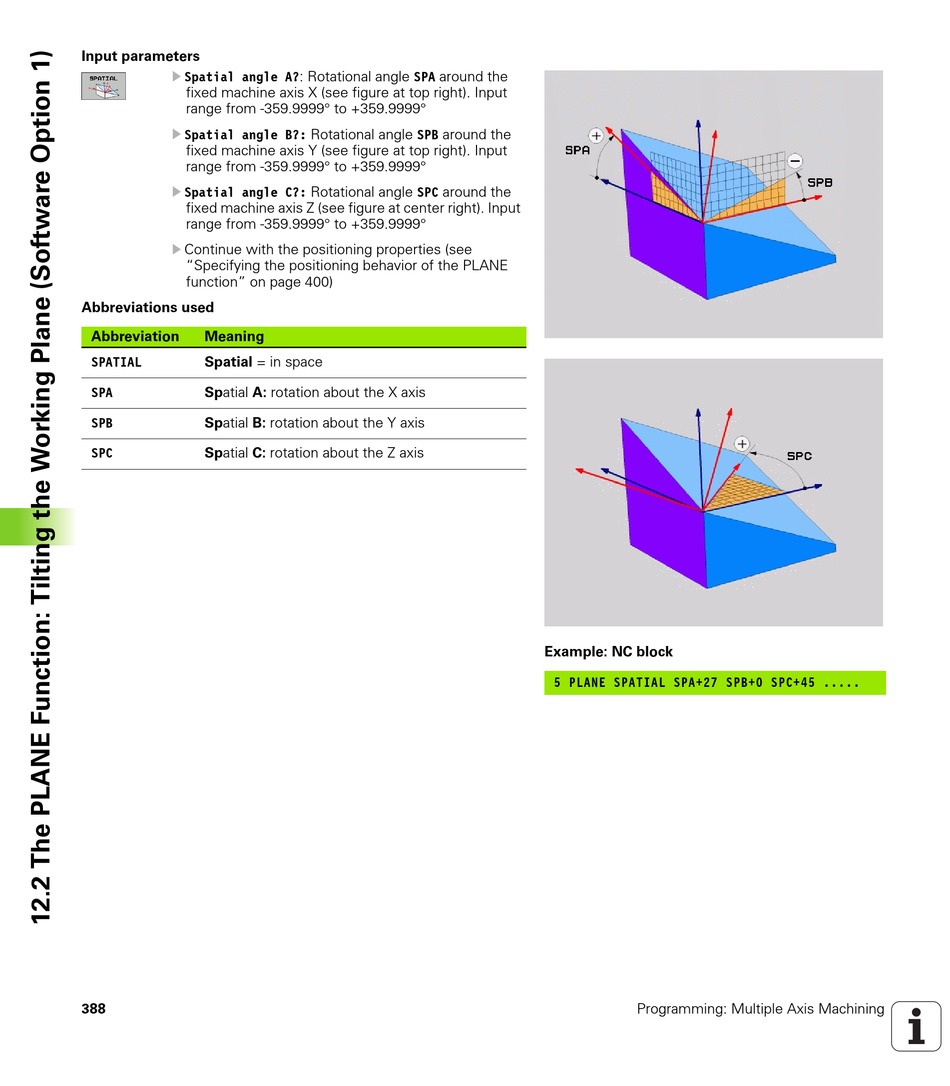

Input parameters
U Spatial angle A?: Rotational angle SPA around the
fixed machine axis X (see figure at top right). Input
range from -359.9999° to +359.9999°
U Spatial angle B?: Rotational angle SPB around the
fixed machine axis Y (see figure at top right). Input
range from -359.9999° to +359.9999°
U Spatial angle C?: Rotational angle SPC around the
fixed machine axis Z (see figure at center right). Input
range from -359.9999° to +359.9999°
U Continue with the positioning properties (see
"Specifying the positioning behavior of the PLANE
function" on page 400)
Abbreviations used
Abbreviation Meaning
Spatial = in space
SPATIAL
SPA Spatial A: rotation about the X axis
SPB Spatial B: rotation about the Y axis
Spatial C: rotation about the Z axis
SPC
388
Example: NC block
5 PLANE SPATIAL SPA+27 SPB+0 SPC+45 .....
