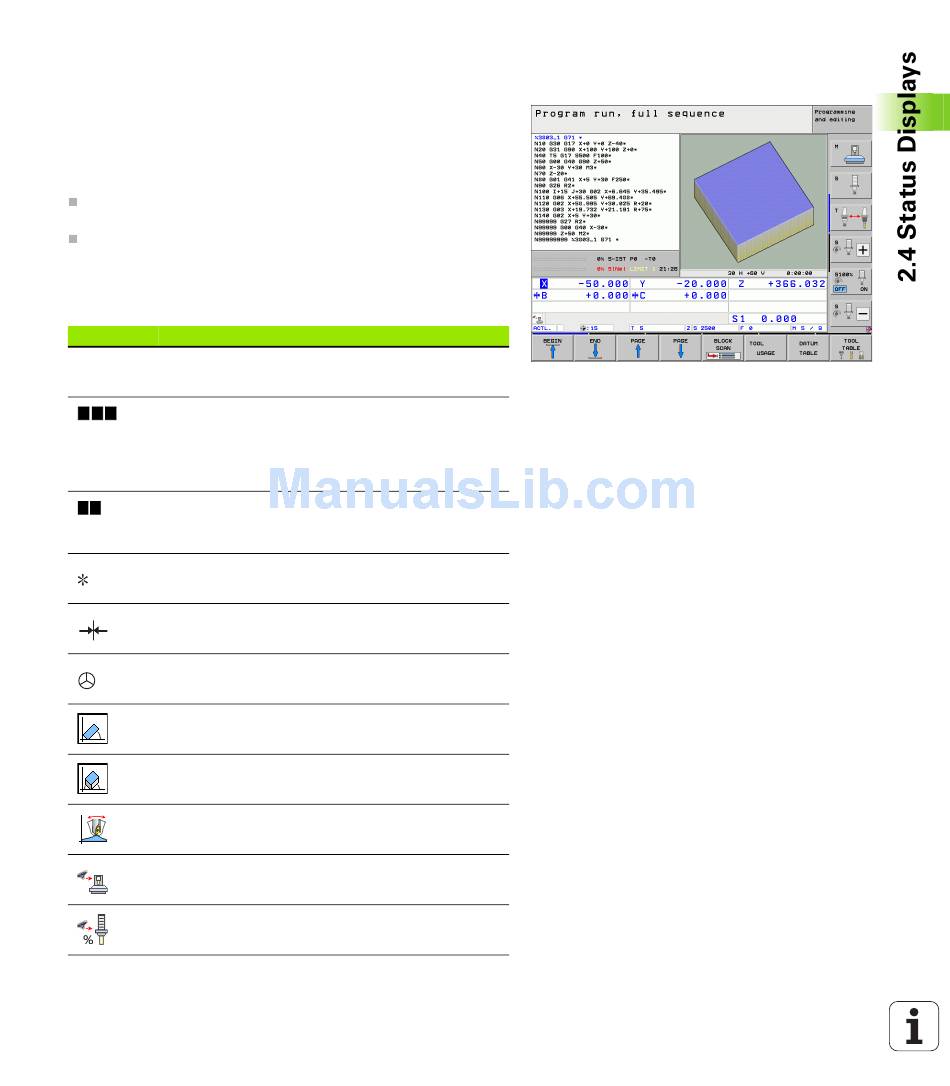

2.4 Status Displays

"General" status display

The status display in the lower part of the screen informs you of the
current state of the machine tool. It is displayed automatically in the
following modes of operation:
Program Run, Single Block and Program Run, Full Sequence, except
if the screen layout is set to display graphics only, and
Positioning with Manual Data Input (MDI).
In the Manual mode and Electronic Handwheel mode the status
display appears in the large window.
Information in the status display
Symbol Meaning
Actual or nominal coordinates of the current position
ACTL.
Machine axes; the TNC displays auxiliary axes in
X Y Z
lower-case letters. The sequence and quantity of
displayed axes is determined by the machine tool
builder. Refer to your machine manual for more
information.
The displayed feed rate in inches corresponds to one
F S M
tenth of the effective value. Spindle speed S, feed
rate F and active M functions.
Program run started.
Axis is locked.
Axis can be moved with the handwheel.
Axes are moving under a basic rotation.
Axes are moving in a tilted working plane.
The M128 function or TCPM FUNCTION is active.
The Dynamic Collision Monitoring function (DCM)
is active.
The Adaptive Feed Function (AFC) is active
(software option).
HEIDENHAIN iTNC 530 69
