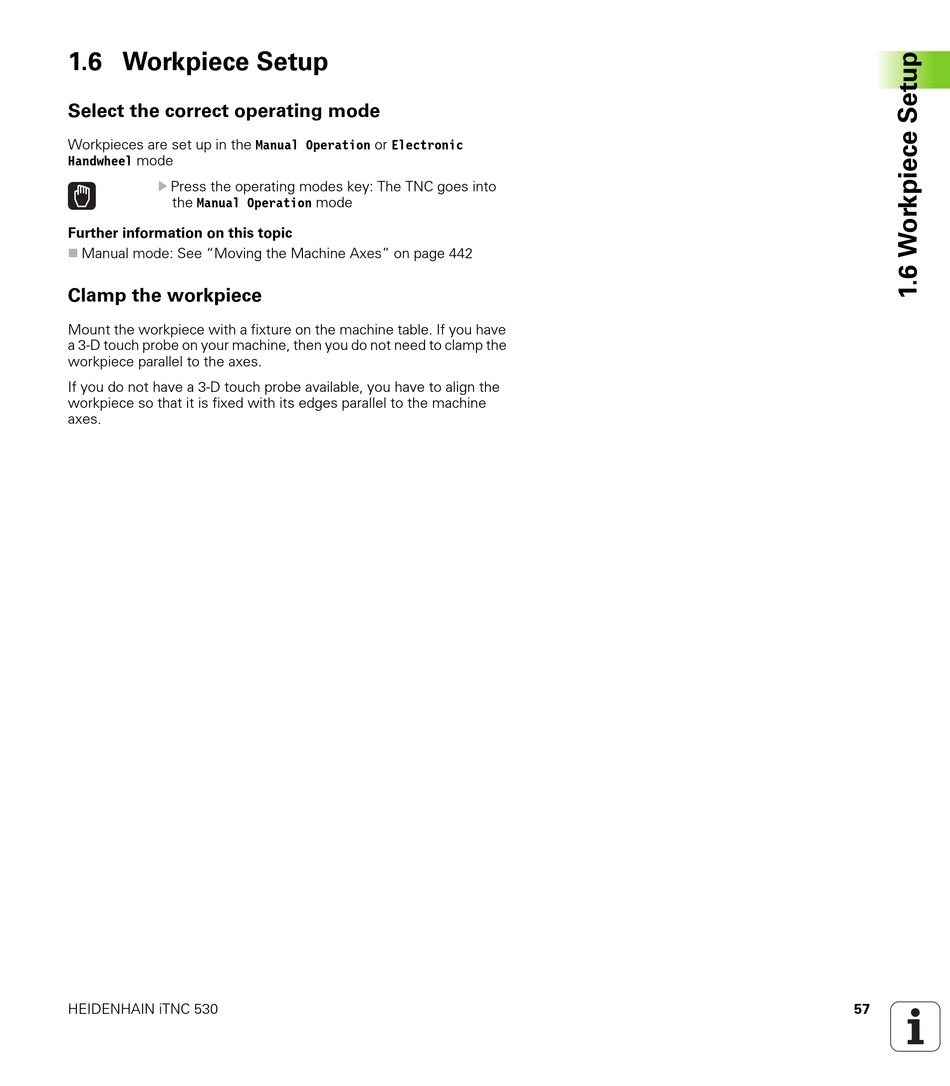

1.6 Workpiece Setup

Select the correct operating mode
Workpieces are set up in the Manual Operation or Electronic
Handwheel mode
U Press the operating modes key: The TNC goes into
the Manual Operation mode
Further information on this topic
Manual mode: See "Moving the Machine Axes" on page 442

Clamp the workpiece

Mount the workpiece with a fixture on the machine table. If you have
a 3-D touch probe on your machine, then you do not need to clamp the
workpiece parallel to the axes.
If you do not have a 3-D touch probe available, you have to align the
workpiece so that it is fixed with its edges parallel to the machine
axes.
