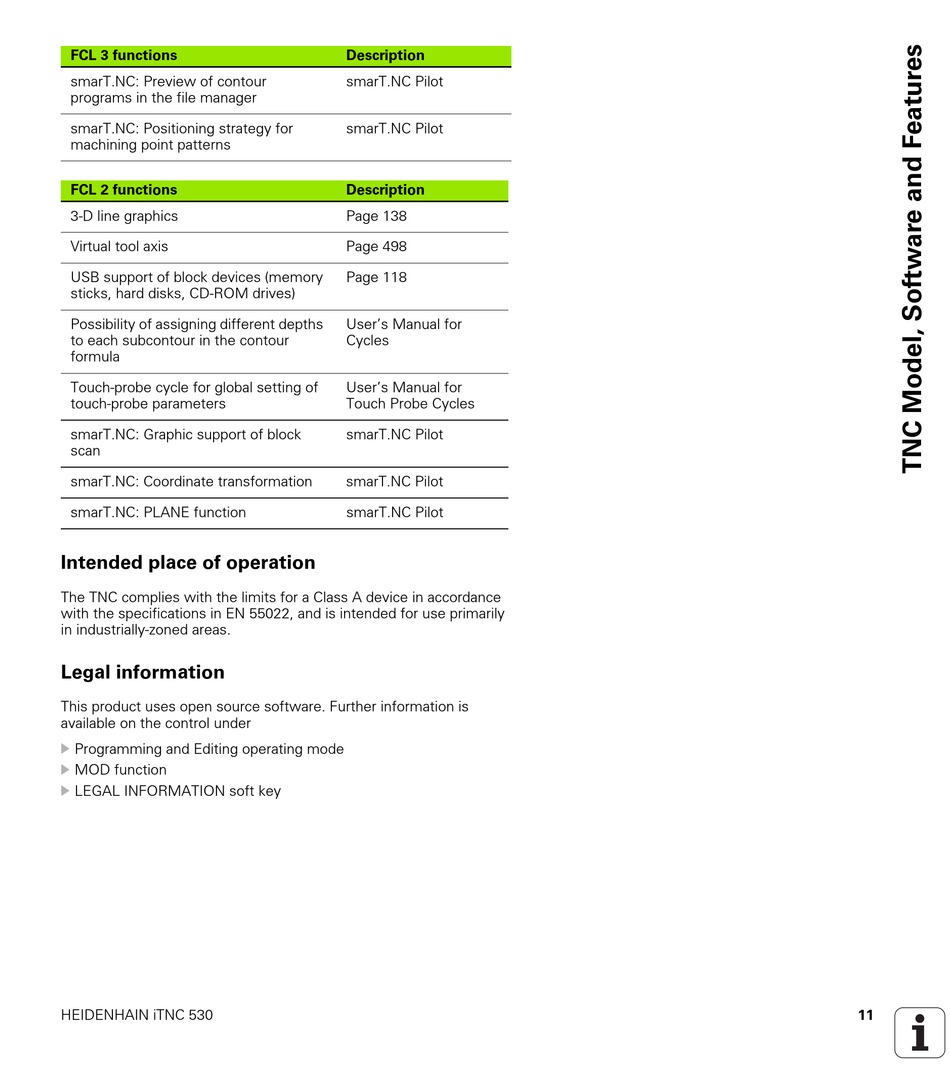

FCL 3 functions
smarT.NC: Preview of contour
programs in the file manager
smarT.NC: Positioning strategy for
machining point patterns
FCL 2 functions
3-D line graphics
Virtual tool axis
USB support of block devices (memory
sticks, hard disks, CD-ROM drives)
Possibility of assigning different depths
to each subcontour in the contour
formula
Touch-probe cycle for global setting of
touch-probe parameters
smarT.NC: Graphic support of block
scan
smarT.NC: Coordinate transformation
smarT.NC: PLANE function
Intended place of operation
The TNC complies with the limits for a Class A device in accordance
with the specifications in EN 55022, and is intended for use primarily
in industrially-zoned areas.
Legal information
This product uses open source software. Further information is
available on the control under
U
Programming and Editing operating mode
U
MOD function
U
LEGAL INFORMATION soft key
HEIDENHAIN iTNC 530
Description
smarT.NC Pilot
smarT.NC Pilot
Description
Page 138
Page 498
Page 118
User's Manual for
Cycles
User's Manual for
Touch Probe Cycles
smarT.NC Pilot
smarT.NC Pilot
smarT.NC Pilot
11
