Programming and Editing

In this mode of operation you can write your part programs. The FK
free programming feature, the various cycles and the Q parameter
functions help you with programming and add necessary information.
If desired, the programming graphics or the 3-D line graphics (FCL 2
function) display the programmed traverse paths.

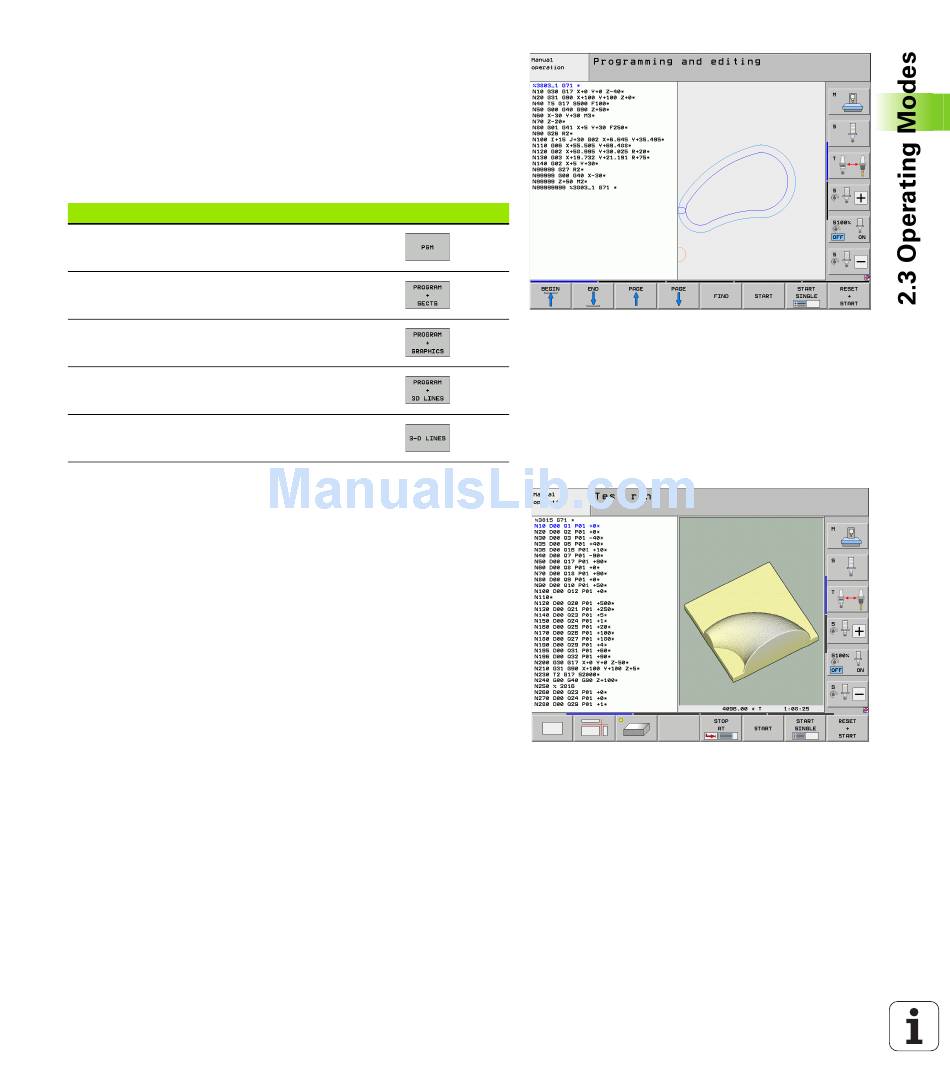

Soft keys for selecting the screen layout
Window
Program
Left: program, right: program structure
Left: program blocks, right: graphics
Left: program blocks, right: 3-D line graphics
3-D line graphics
Test Run
In the Test Run mode of operation, the TNC checks programs and
program sections for errors, such as geometrical incompatibilities,
missing or incorrect data within the program or violations of the work
space. This simulation is supported graphically in different display
modes.
With the dynamic collision monitoring (DCM) software option you can
test the program for potential collisions. As during program run, the
TNC takes into account all permanent machine components defined
by the machine manufacturer as well as all measured fixtures.
Soft keys for selecting the screen layout: see "Program Run, Full
Sequence and Program Run, Single Block", page 68.
