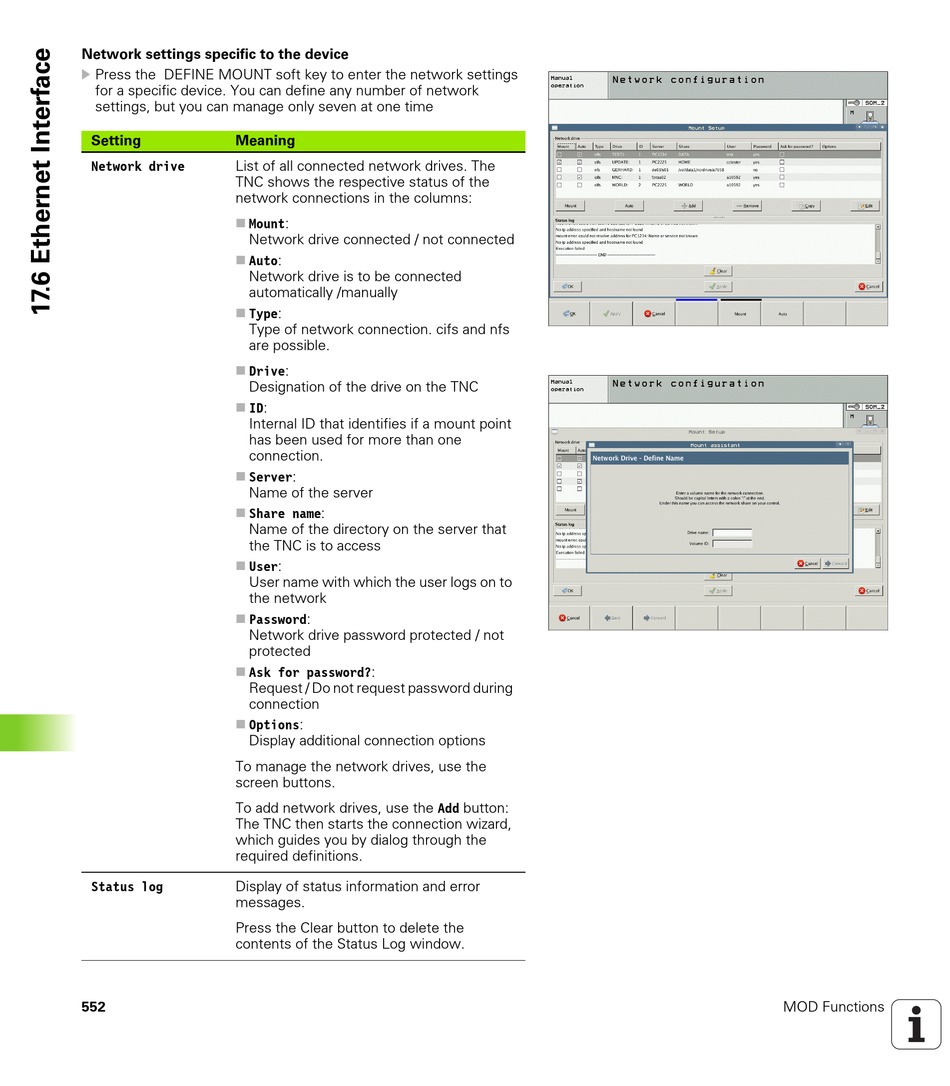

Network settings specific to the device
U Press the DEFINE MOUNT soft key to enter the network settings
for a specific device. You can define any number of network
settings, but you can manage only seven at one time
Setting Meaning
List of all connected network drives. The
Network drive
TNC shows the respective status of the
network connections in the columns:
Mount:
Network drive connected / not connected
Auto:
Network drive is to be connected
automatically /manually
Type:
Type of network connection. cifs and nfs
are possible.
Drive:
Designation of the drive on the TNC
ID:
Internal ID that identifies if a mount point
has been used for more than one
connection.
Server:
Name of the server
Share name:
Name of the directory on the server that
the TNC is to access
User:
User name with which the user logs on to
the network
Password:
Network drive password protected / not
protected
Ask for password?:
Request / Do not request password during
connection
Options:
Display additional connection options
To manage the network drives, use the
screen buttons.
To add network drives, use the Add button:
The TNC then starts the connection wizard,
which guides you by dialog through the
required definitions.
Status log Display of status information and error
messages.
Press the Clear button to delete the
contents of the Status Log window.
