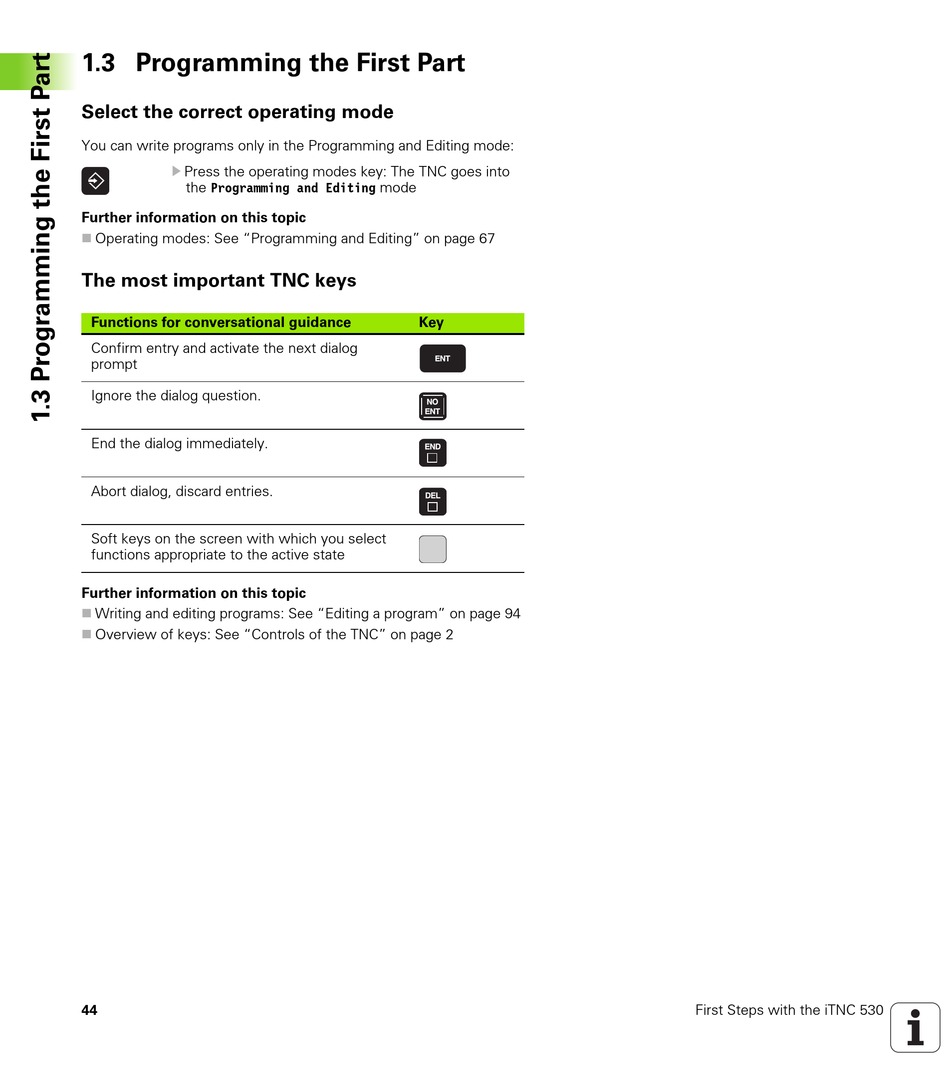

1.3 Programming the First Part

Select the correct operating mode
You can write programs only in the Programming and Editing mode:
U Press the operating modes key: The TNC goes into
the Programming and Editing mode
Further information on this topic
Operating modes: See "Programming and Editing" on page 67

The most important TNC keys

Functions for conversational guidance
Confirm entry and activate the next dialog
prompt
Ignore the dialog question.
End the dialog immediately.
Abort dialog, discard entries.
Soft keys on the screen with which you select
functions appropriate to the active state
Further information on this topic
Writing and editing programs: See "Editing a program" on page 94
Overview of keys: See "Controls of the TNC" on page 2
44
Key
First Steps with the iTNC 530
