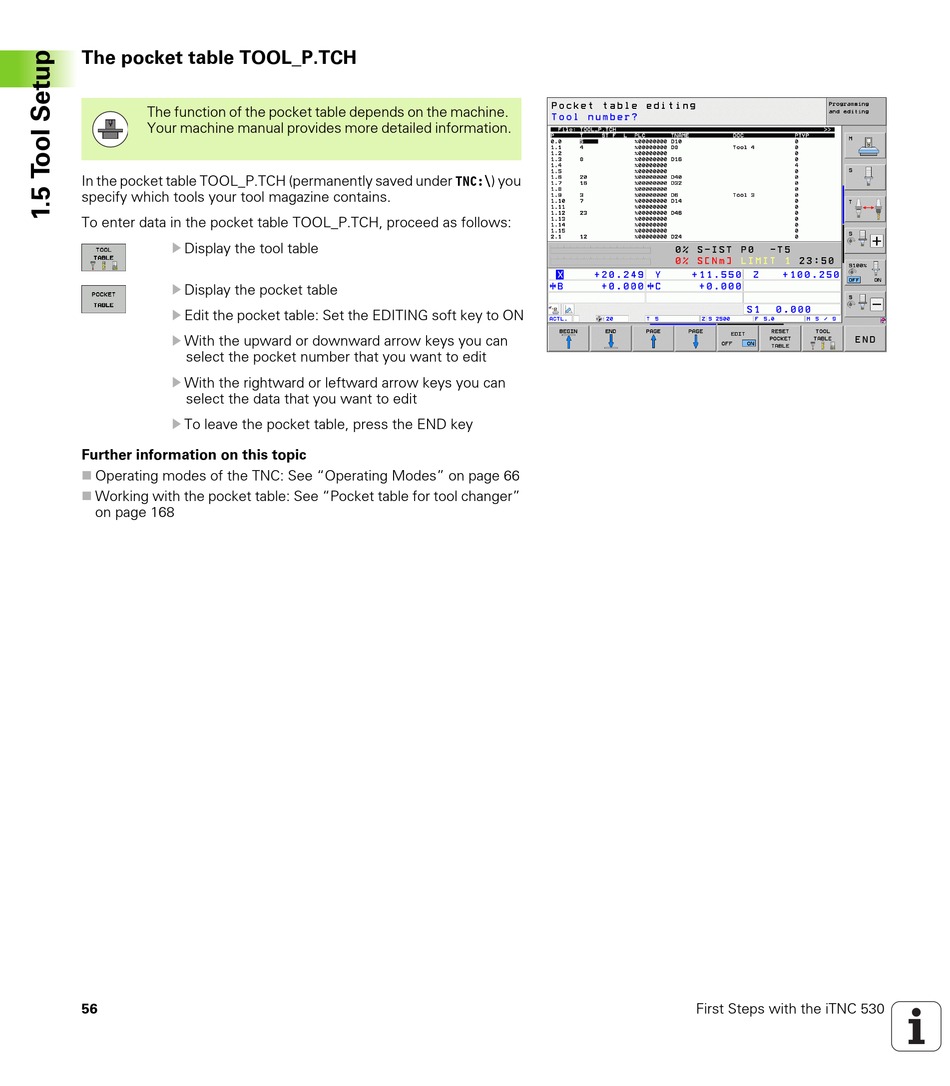

The pocket table TOOL_P.TCH

The function of the pocket table depends on the machine.
Your machine manual provides more detailed information.
In the pocket table TOOL_P.TCH (permanently saved under TNC:\) you
specify which tools your tool magazine contains.
To enter data in the pocket table TOOL_P.TCH, proceed as follows:
U Display the tool table
U Display the pocket table
U Edit the pocket table: Set the EDITING soft key to ON
U With the upward or downward arrow keys you can
select the pocket number that you want to edit
U With the rightward or leftward arrow keys you can
select the data that you want to edit
U To leave the pocket table, press the END key
Further information on this topic
Operating modes of the TNC: See "Operating Modes" on page 66
Working with the pocket table: See "Pocket table for tool changer"
on page 168
56 First Steps with the iTNC 530
