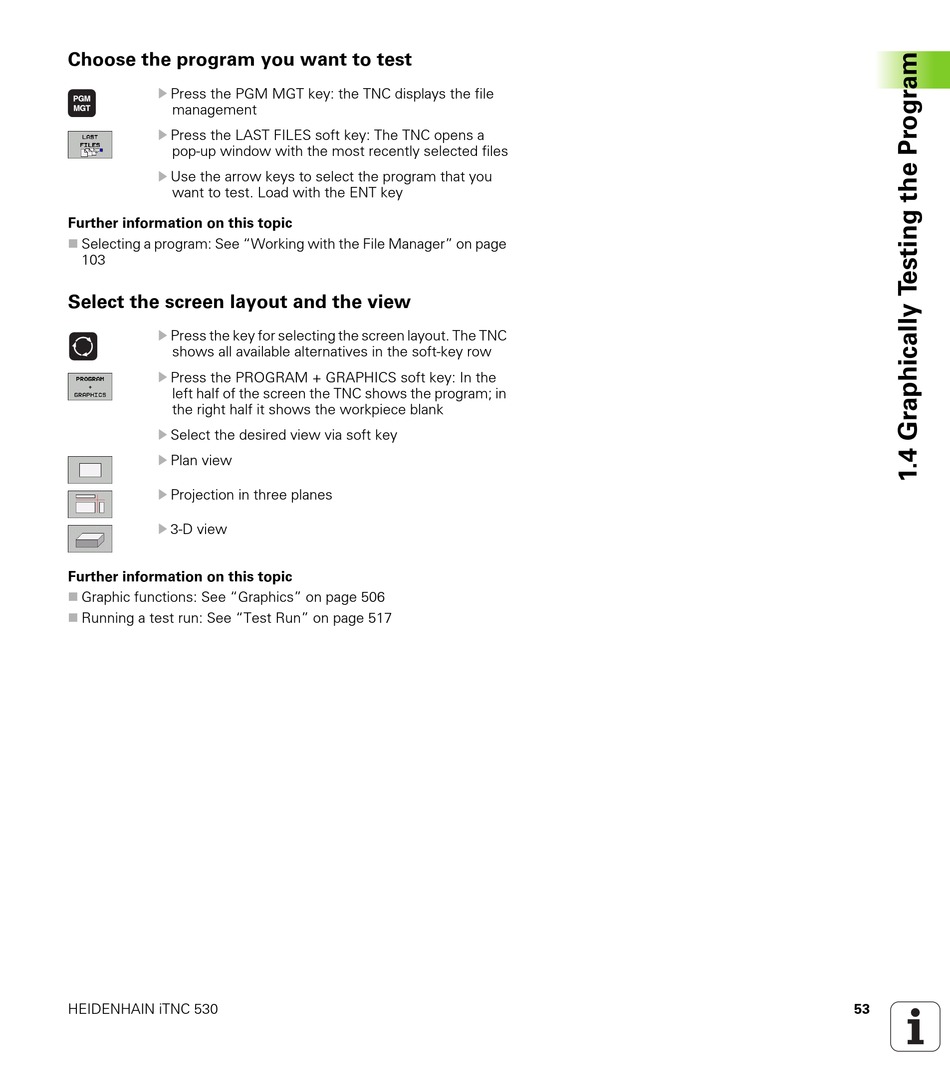

Choose the program you want to test

U Press the PGM MGT key: the TNC displays the file
management
U Press the LAST FILES soft key: The TNC opens a
pop-up window with the most recently selected files
U
Use the arrow keys to select the program that you
want to test. Load with the ENT key
Further information on this topic
Selecting a program: See "Working with the File Manager" on page
103

Select the screen layout and the view

U Press the key for selecting the screen layout. The TNC
shows all available alternatives in the soft-key row
U Press the PROGRAM + GRAPHICS soft key: In the
left half of the screen the TNC shows the program; in
the right half it shows the workpiece blank
U Select the desired view via soft key
U Plan view
U Projection in three planes
U
3-D view
Further information on this topic
Graphic functions: See "Graphics" on page 506
Running a test run: See "Test Run" on page 517
HEIDENHAIN iTNC 530 53
