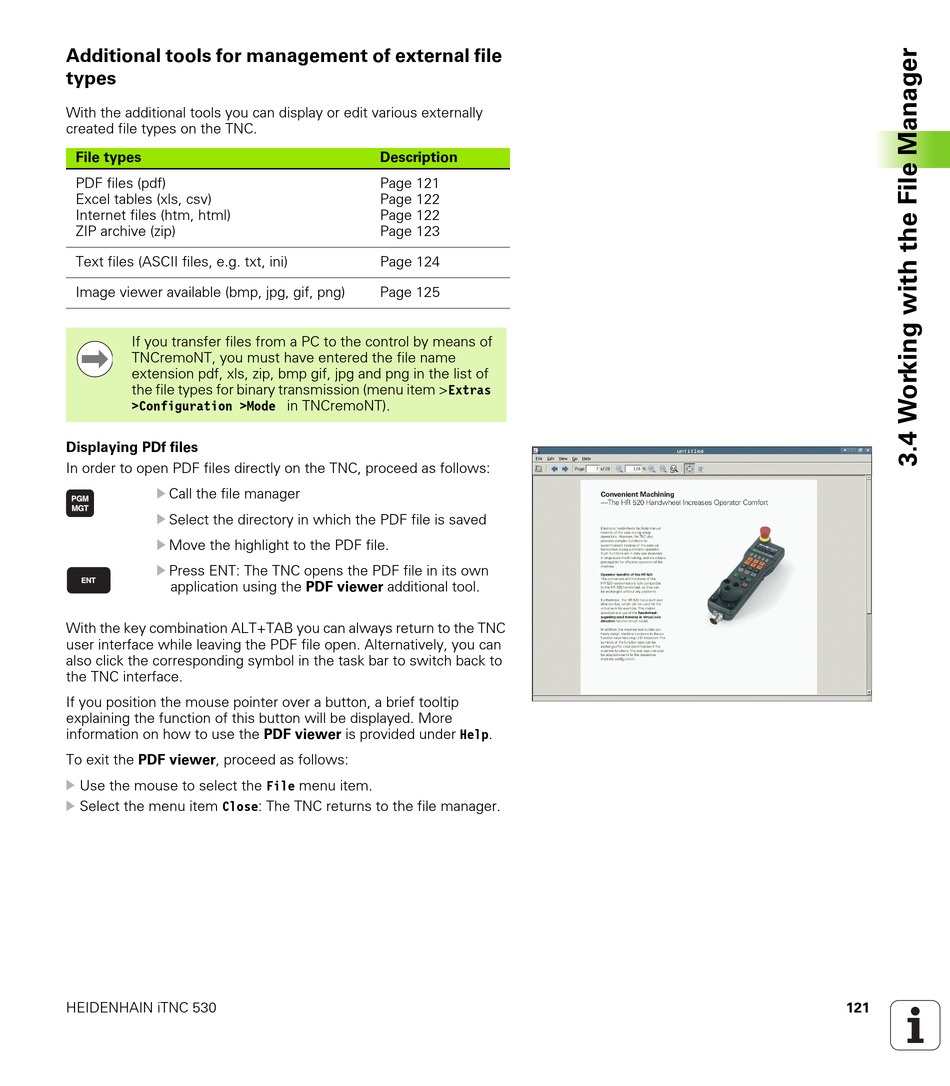

Additional tools for management of external file
types
With the additional tools you can display or edit various externally
created file types on the TNC.
File types
PDF files (pdf)
Excel tables (xls, csv)
Internet files (htm, html)
ZIP archive (zip)
Text files (ASCII files, e.g. txt, ini)
Image viewer available (bmp, jpg, gif, png)
If you transfer files from a PC to the control by means of
TNCremoNT, you must have entered the file name
extension pdf, xls, zip, bmp gif, jpg and png in the list of
the file types for binary transmission (menu item >Extras
>Configuration >Mode in TNCremoNT).
Displaying PDf files
In order to open PDF files directly on the TNC, proceed as follows:
U Call the file manager
U Select the directory in which the PDF file is saved
U Move the highlight to the PDF file.
U Press ENT: The TNC opens the PDF file in its own
application using the PDF viewer additional tool.
With the key combination ALT+TAB you can always return to the TNC
user interface while leaving the PDF file open. Alternatively, you can
also click the corresponding symbol in the task bar to switch back to
the TNC interface.
If you position the mouse pointer over a button, a brief tooltip
explaining the function of this button will be displayed. More
information on how to use the PDF viewer is provided under Help.
To exit the PDF viewer, proceed as follows:
U Use the mouse to select the File menu item.
U Select the menu item Close: The TNC returns to the file manager.
HEIDENHAIN iTNC 530
Description
Page 121
Page 122
Page 122
Page 123
Page 124
Page 125
121
