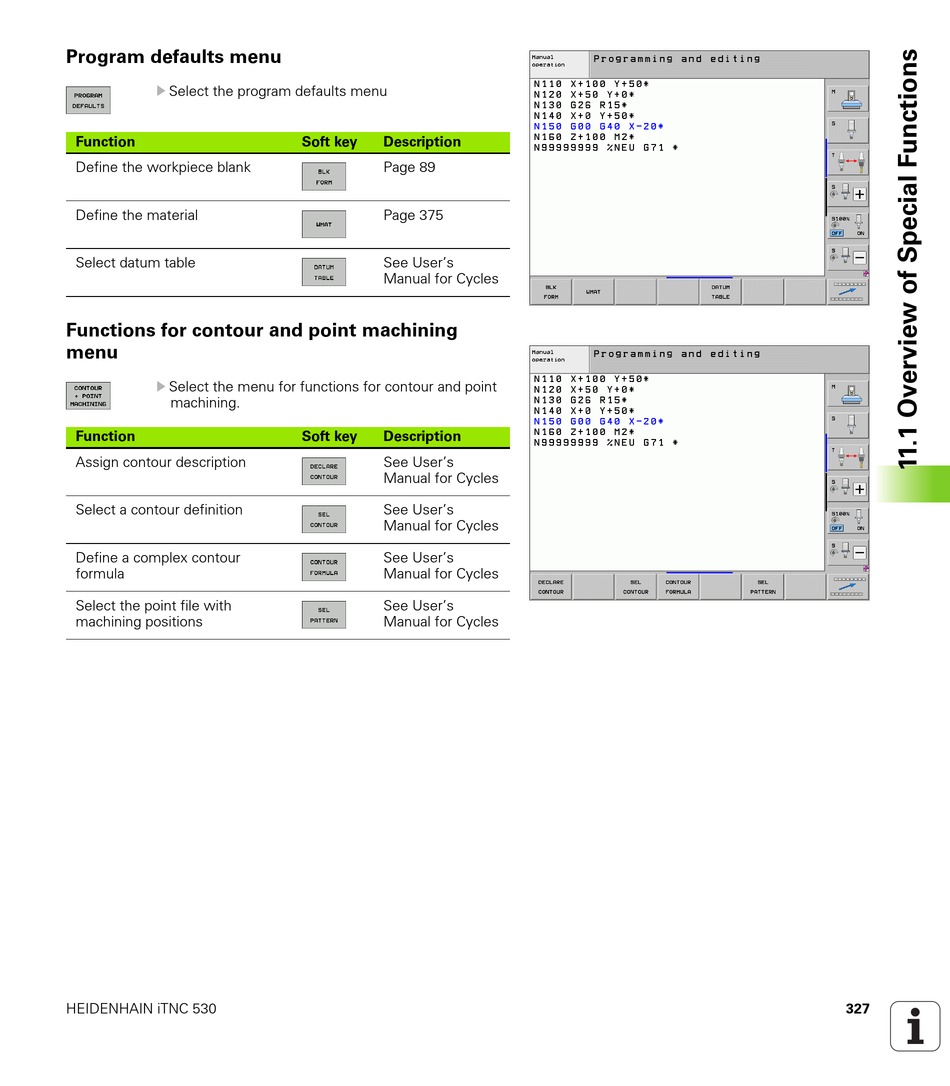

Program defaults menu

U Select the program defaults menu
Function
Define the workpiece blank
Define the material
Select datum table
Functions for contour and point machining
menu
U Select the menu for functions for contour and point
machining.
Function
Assign contour description
Select a contour definition
Define a complex contour
formula
Select the point file with
machining positions
HEIDENHAIN iTNC 530
Soft key Description
Page 89
Page 375
See User's
Manual for Cycles
Soft key Description
See User's
Manual for Cycles
See User's
Manual for Cycles
See User's
Manual for Cycles
See User's
Manual for Cycles
327
